Thru-Beam Sensors Parts
Compare Thru-Beam Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Transducer frequency | No-load supply current | Degree of protection | Mass |
|---|---|---|---|---|---|
| UBE800-F77-SE1-V31 | 70103915 | approx. 300 kHz | ≤ 20 mA I0 | IP67 | per 10 g |
| UBE800-F77-SE0-V31 | 70103912 | approx. 300 kHz | ≤ 20 mA I0 | IP67 | per 10 g |
| UBE800-F77-SE3-V31 | 233249 | approx. 300 kHz | ≤ 20 mA I0 | IP67 | per 10 g |

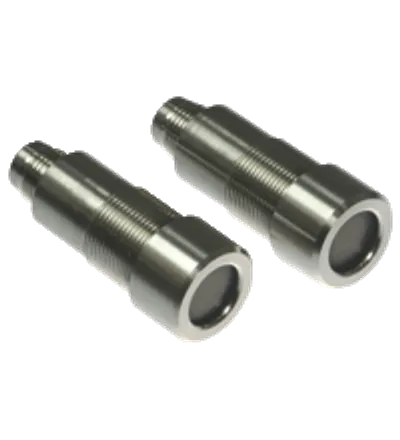

| UBEC300-18GH40-SE2-V1 | 211977 | approx. 255 kHz | ≤ 20 mA I0 | IP68 / IP69K | 25 g |
| UBE1000-18GM40A-SE2-V1-Y205349 | 205349 | approx. 255 kHz | ≤ 20 mA I0 | IP67 | 25 g |
| UBE1000-18GM40A-SE2-V1 | 205347 | approx. 255 kHz | ≤ 20 mA I0 | IP67 | 25 g |
| UBE1000-18GM40-SE2-V1 | 205346 | approx. 255 kHz | ≤ 20 mA I0 | IP67 | 25 g |
| UBE15M-H1 | 109085 | approx. 40 kHz | ≤ 10 mA (typ. 6 mA at UB = 24 V DC) I0 | IP00 | 20 g |
| UBE4000-30GM-SA2-V15 | 120344 | 85 kHz | 35 mA emitter 25 mA receiver I0 | IP65 | 160 g each sensor |
| UBE15M-F54-H2-V1 | 109086 | approx. 40 kHz | ≤ 15 mA (typ. 10 mA at UB = 24 V DC) I0 | IP30 | 110 g |
| UBE800-F77-SE2-V31 | 233248 | approx. 300 kHz | ≤ 20 mA I0 | IP67 | per 10 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
