Slot and Slot Grid Sensors Parts
Compare Slot and Slot Grid Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Slot width | Mass | Dimensions: Height | Dimensions: Width |
|---|---|---|---|---|---|

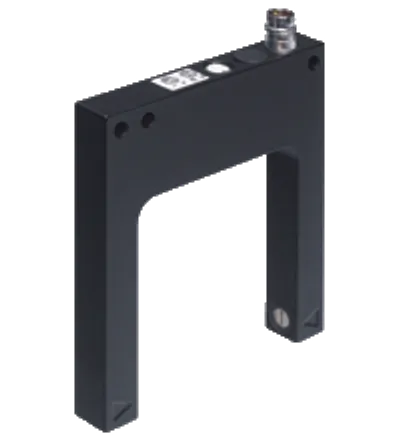

| GL50-RT/30/40a/98a | 201768 | 50 mm | 90 g | 70 mm | 10 mm |

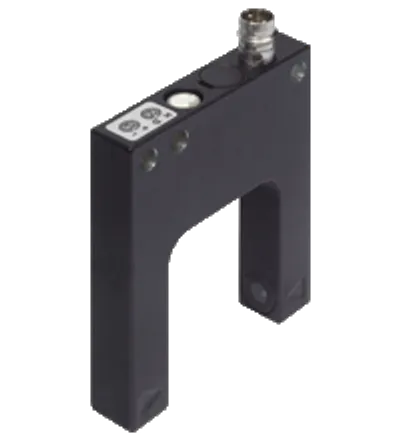

| GL30-RT/30/40a/98a | 201766 | 30 mm | 60 g | 50 mm | 10 mm |
| GL50-RT/32/40a/98a | 199990 | 50 mm | 90 g | 70 mm | 10 mm |

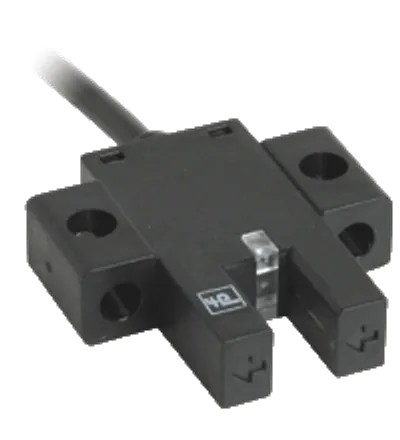

| GL5-U/43a/115-3.5M | 70161136 | 5 mm | approx. 35 g | 25.4 mm | 7 mm |

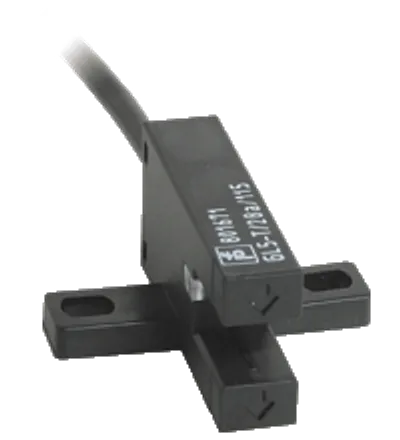

| GL5-T/43a/115a | 70135882 | 5 mm | approx. 25 g | 13.4 mm | 26 mm |

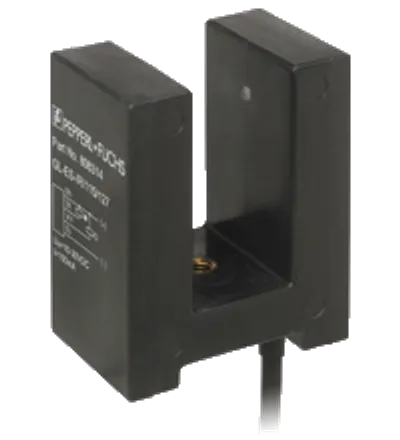

| OBE24-S1-A2-Y909799 | 909799 | 24 mm | — | — | — |
| OBE24-S1-A0-Y093828 | 093828 | 24 mm | — | — | — |
| OBE24-S1-A0-Y905121 | 905121 | 24 mm | — | — | — |
| OBE24-S1-A2-Y909983 | 909983 | 24 mm | — | — | — |
| GL-ES-IR/115/127 | 808314 | 24 mm | — | — | — |
| GL-ES-IR/115/120 | 808313 | 24 mm | — | — | — |
| GL5-U/46a/59/115e | 816825 | 5 mm | 3 g | 25.4 mm | 7 mm |
| GL5-T/46a/59/115e | 816821 | 5 mm | 3 g | 13.4 mm | 26 mm |

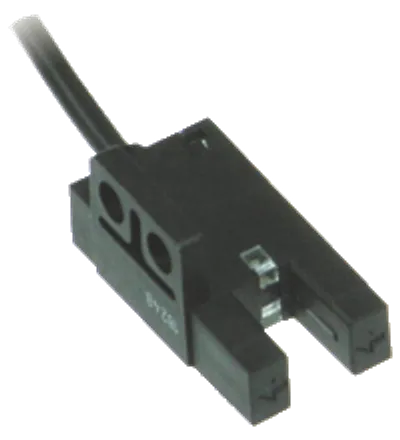

| GL5-R/46a/59/115e | 816817 | 5 mm | 3 g | 13.4 mm | 13.2 mm |

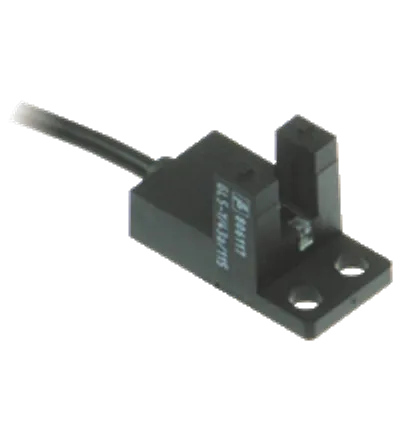

| GL5-Y/43a/115-5M | 311661 | 5 mm | 25 g | 13.4 mm | 25.5 mm |
| GL5-R/43a/115-5M | 311659 | 5 mm | 25 g | 13.4 mm | 13.2 mm |

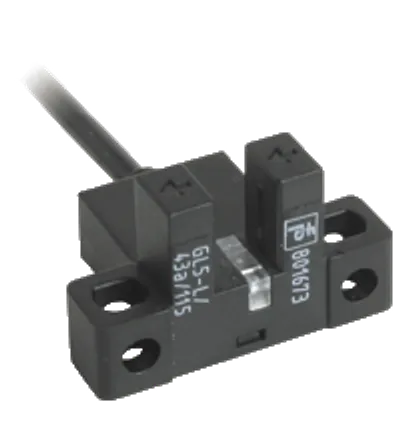

| GL5-L/43a/115-5M | 311658 | 5 mm | 25 g | 26 mm | 18.5 mm |
| GL5-L/43a/115a | 305981 | 5 mm | 25 g | 26 mm | 18.5 mm |

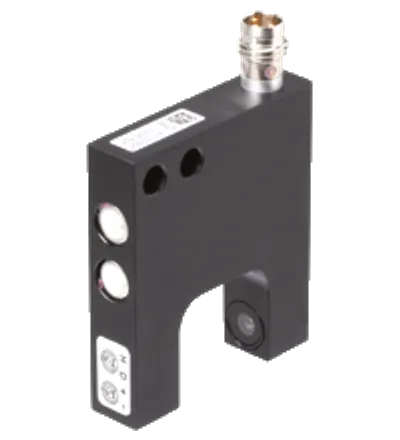

| GL20-RT/30/40a/98a | 269190 | 20 mm | 25 g | 40 mm | 10 mm |

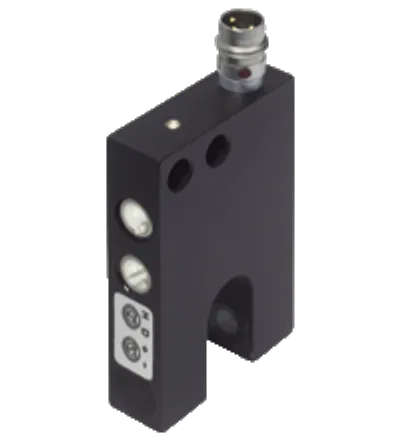

| GL10-RT/30/40a/98a | 269189 | 10 mm | 20 g | 30 mm | 10 mm |

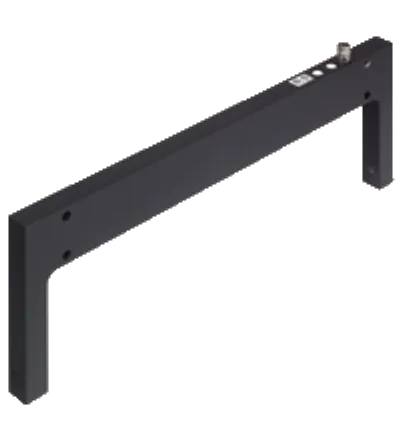

| GL220-RT/32/40a/98a | 199993 | 220 mm | 240 g | 244 mm | 12 mm |
| GL20-RT/32/40a/98a | 199988 | 20 mm | 25 g | 40 mm | 10 mm |
| GL10-RT/32/40a/98a | 199987 | 10 mm | 20 g | 30 mm | 10 mm |

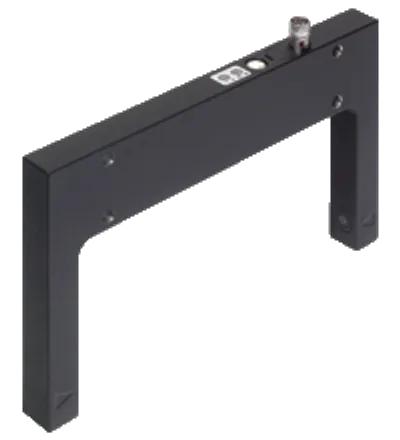

| GL121-RT/32/40a/98a | 199992 | 121 mm | 295 g | 145 mm | 12 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
