Print Mark Sensors Parts
Compare Print Mark Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | No-load supply current | Switching frequency | Storage temperature | Detection range |
|---|---|---|---|---|---|

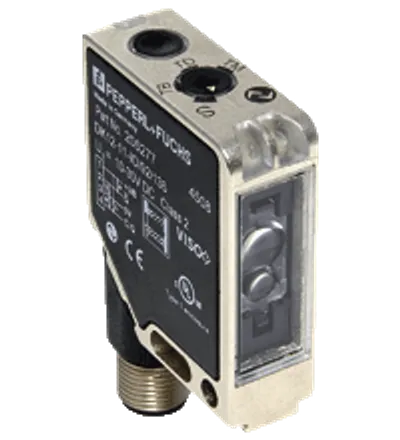

| DK12-11-IO/A/92/136 | 244277 | ≤ 60 mA at 24 V supply voltage I0 | 12.5 kHz f | -40 ... 75 °C (-40 ... 167 °F) | — |

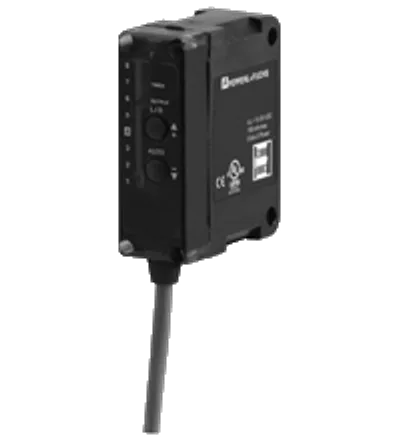

| DK50-UV-330/115b/147 | 912572 | 50 mA I0 | 2.5 kHz f | -15 ... 70 °C (5 ... 158 °F) | 0 ... 330 mm |

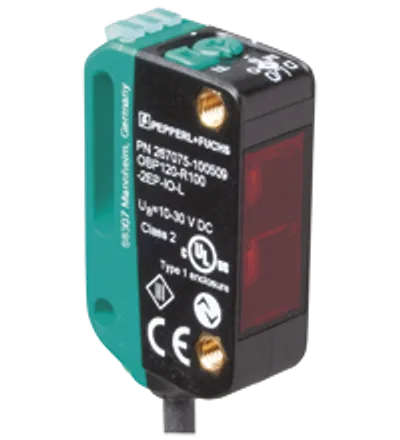

| OBP120-R100-2EP-IO-L | 267075-100509 | < 20 mA at 24 V supply voltage I0 | 3300 Hz f | -40 ... 70 °C (-40 ... 158 °F) | 25 ... 120 mm |

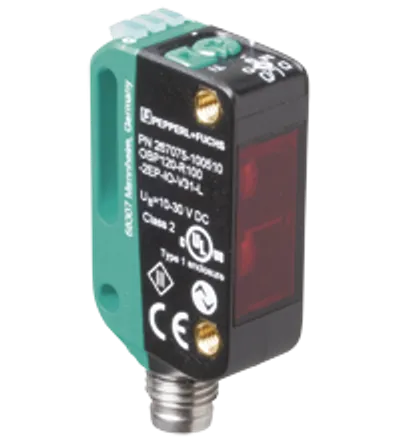

| OBP120-R100-EP-IO-V3-L | 267075-100511 | < 20 mA at 24 V supply voltage I0 | 3300 Hz f | -40 ... 70 °C (-40 ... 158 °F) | 25 ... 120 mm |

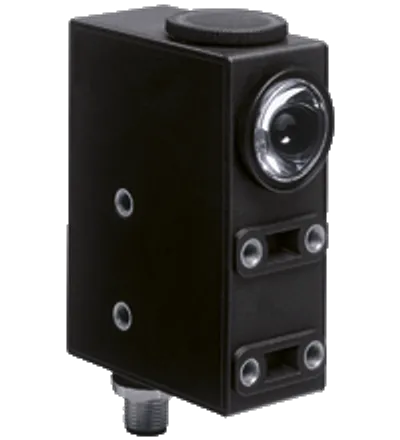

| DF20-2883/B/49/124 | 131839 | ≤ 55 mA I0 | 1.65 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |

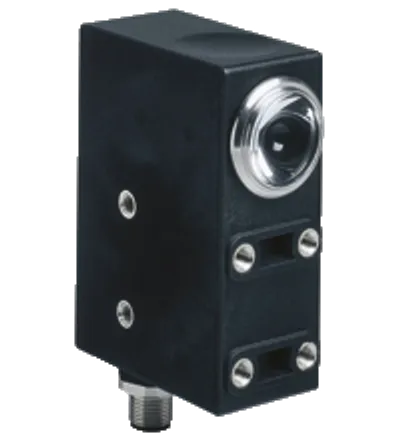

| DK20-2497(/49) | 418086 | ≤ 70 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |
| DK20/35A/9S20 | 418077 | ≤ 70 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |
| DK20/9S50 | 418092 | ≤ 70 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |
| DK20/49 | 418085 | ≤ 70 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |
| DK12-11-IO/92/136 | 206277 | ≤ 60 mA at 24 V supply voltage I0 | 12.5 kHz f | -40 ... 75 °C (-40 ... 167 °F) | — |
| DK20-3009/B/110/124 | 180640 | ≤ 70 mA I0 | 10 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |
| DK34-9,5/110/124 | 118955 | ≤ 75 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | — |

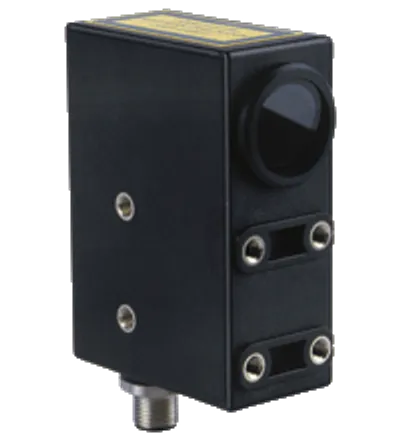

| DK10-LAS/35/79b | 418072 | ≤ 55 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | 3 ... 800 mm |
| DK10-LAS/35/49 | 418071 | ≤ 55 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | 3 ... 800 mm |
| DK10-LAS/49 | 418067 | ≤ 55 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | 3 ... 300 mm |
| DK50-UV-609/79d/115b/147 | 912575 | 65 mA I0 | 600 Hz f | -15 ... 70 °C (5 ... 158 °F) | 50.8 ... 609.6 mm |
| DK50-UV-609/115b/147 | 912574 | 65 mA I0 | 600 Hz f | -15 ... 55 °C (5 ... 131 °F) | 50.8 ... 609.6 mm |
| DK50-UV-330/79d/115b/147 | 912573 | 50 mA I0 | 2.5 kHz f | -15 ... 70 °C (5 ... 158 °F) | 0 ... 330 mm |
| DK50-UV-254/79d/115b/147 | 912571 | 50 mA I0 | 2.5 kHz f | -15 ... 70 °C (5 ... 158 °F) | 0 ... 254 mm |
| DK50-UV-254/115b/147 | 912570 | 50 mA I0 | 2.5 kHz f | -15 ... 70 °C (5 ... 158 °F) | 0 ... 254 mm |
| DK50-UV-190/79d/115b/147 | 912569 | 50 mA I0 | 2.5 kHz f | -15 ... 70 °C (5 ... 158 °F) | 0 ... 190 mm |
| DK50-UV-190/115b/147 | 912568 | 50 mA I0 | 2.5 kHz f | -15 ... 70 °C (5 ... 158 °F) | 0 ... 190 mm |
| DK10-LAS/76a/110/124 | 418066 | ≤ 55 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | 3 ... 300 mm |
| DK10-LAS/76a/79b/110/124 | 418069 | ≤ 55 mA I0 | 16.5 kHz f | -20 ... 75 °C (-4 ... 167 °F) | 3 ... 300 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
