Purge and Pressurization System (Type Z) Parts
Compare Purge and Pressurization System (Type Z)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Series | System | Degree of protection | Relative humidity |
|---|---|---|---|---|---|
| 7500-ACC-BKT-* | T217785 | 7500 | Type Z Purge ; Ex pzc Purge | Mounting type 4X / IP66 (Seeloc washers) | — |
| 5500-SS-E-VAC-PSH-LBC | — | 5500 | Type Z Purge ; Ex pzc Purge | EN 60529 | 5 ... 95 %, non-condensing |
| 5500-SS-E-VDC-PSH-LBC | — | 5500 | Type Z Purge ; Ex pzc Purge | EN 60529 | 5 ... 95 %, non-condensing |
| 5500-SS-I-VDC-PBC-LBC | — | 5500 | Type Z Purge ; Ex pzc Purge | EN 60529 | 5 ... 95 %, non-condensing |

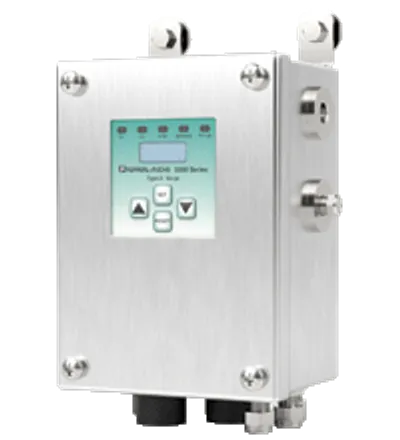

| 5500 Control Unit | T167146 | 5500 | Type Z Purge ; Ex pzc Purge | EN 60529 | 5 ... 95 %, non-condensing |

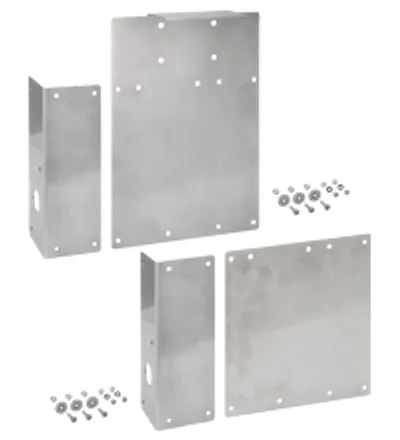

| 5500-ACC-BKT-* | T217786 | 5500 | Type Z Purge ; Ex pzc Purge | Mounting type 4X / IP66 (Seeloc washers) | — |
| 7500-01-AA-STD-UNV-PNO | 70145762 | 7500 | Type Z Purge ; Ex pzc Purge | Type 4X , IP66 | 5 ... 90 %, non-condensing |

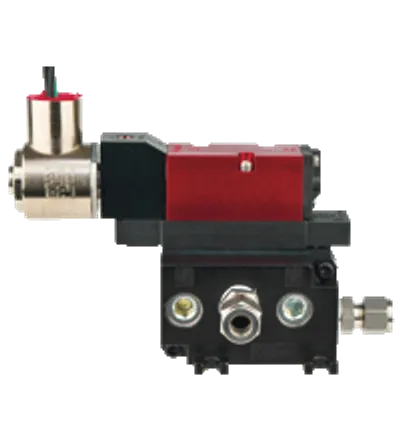

| 5500-MAN-CDUL-* | T169983 | 5500 | Type Z Purge | type 7 & 9 | — |
Common to all listed parts
| Hazardous environment | gas or dust |
