Actuators and indicators, flat, 30 mm, metal, matte Parts
Compare Actuators and indicators, flat, 30 mm, metal, matte
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | shape of the actuating element | Net Weight | B10 value with high demand rate according to SN 31920 |
|---|---|---|---|---|---|

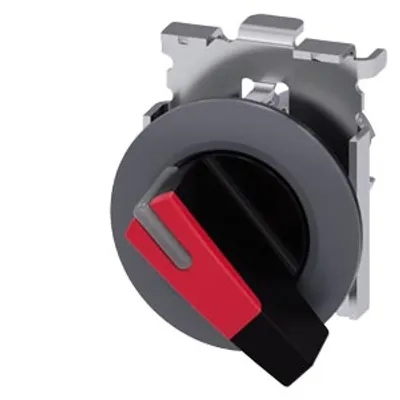

| 3SU1062-2EF20-0AA0-Z X90 | selector, long | red | Handle | 78.5 g | 100 000 |
| 3SU1062-2EF20-0AA0 | selector, long | red | Handle | 78.5 g | 100 000 |
| 3SU1062-2EF10-0AA0-Z Y19 | selector, long | black | Handle | 70.5 g | 100 000 |
| 3SU1062-2EF10-0AA0-Z Y15 | selector, long | black | Handle | 70.5 g | 100 000 |
| 3SU1062-2DN60-0AA0-Z X90 | Selector, short | white | Handle | 69.5 g | 300 000 |
| 3SU1062-2DN60-0AA0 | Selector, short | white | Handle | 69.5 g | 300 000 |
| 3SU1062-2DM60-0AA0-Z Y19 | Selector, short | white | Handle | 68.5 g | 300 000 |
| 3SU1062-2DM60-0AA0-Z Y15 | Selector, short | white | Handle | 68.5 g | 300 000 |
| 3SU1062-2DM60-0AA0-Z Y12 | Selector, short | white | Handle | 68.5 g | 300 000 |
| 3SU1062-2DM60-0AA0-Z Y11 | Selector, short | white | Handle | 68.5 g | 300 000 |

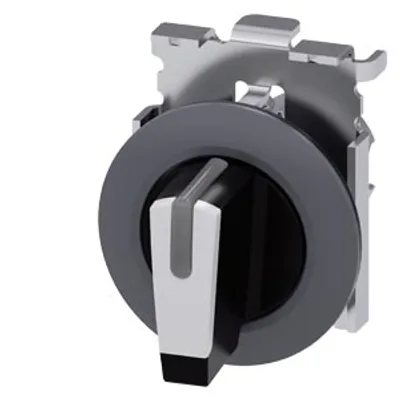

| 3SU1062-2DM60-0AA0-Z Y10 | Selector, short | white | Handle | 68.5 g | 300 000 |

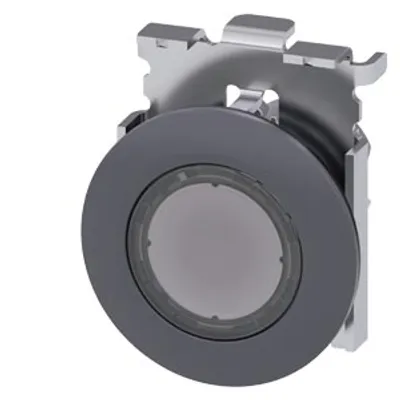

| 3SU1061-0JD70-0AA0-Z Y19 | Illuminated pushbutton design | clear | round | 61.5 g | — |
| 3SU1061-0JD70-0AA0-Z Y15 | Illuminated pushbutton design | clear | round | 61.5 g | — |
| 3SU1061-0JD70-0AA0-Z Y13 | Illuminated pushbutton design | clear | round | 61.5 g | — |
| 3SU1061-0JD70-0AA0-Z Y12 | Illuminated pushbutton design | clear | round | 61.5 g | — |
| 3SU1061-0JD70-0AA0-Z Y11 | Illuminated pushbutton design | clear | round | 61.5 g | — |
| 3SU1061-0JD70-0AA0-Z Y10 | Illuminated pushbutton design | clear | round | 61.5 g | — |
| 3SU1061-0JD70-0AA0-Z X90 | Illuminated pushbutton design | clear | round | 61.5 g | — |

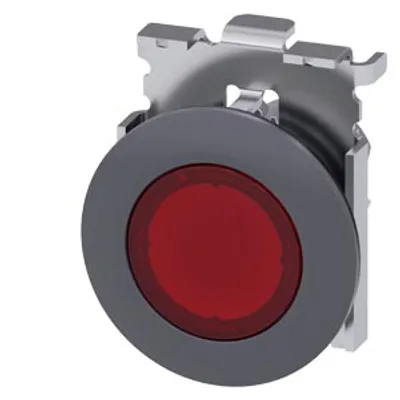

| 3SU1061-0JD20-0AA0-Z X90 | Illuminated pushbutton design | red | round | 61.5 g | — |
| 3SU1061-0JD20-0AA0 | Illuminated pushbutton design | red | round | 61.5 g | — |
| 3SU1061-0JB50-0AA0-Z Y13 | Flat button | blue | round | 62.5 g | 3 000 000 |
| 3SU1061-0JB50-0AA0-Z Y12 | Flat button | blue | round | 62.5 g | 3 000 000 |
| 3SU1061-0JB50-0AA0-Z Y11 | Flat button | blue | round | 62.5 g | 3 000 000 |
| 3SU1062-2EL60-0AA0-Z Y15 | selector, long | white | Handle | 69.5 g | 300 000 |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| product component front ring | Yes |
| design of the front ring | Flat |
| material of the front ring | Metal, matt |
| color of the front ring | sand gray |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
