Machine Lights Parts
Compare Machine Lights
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection | Dimension | Illumination area | Light intensity | Color temperature |
|---|---|---|---|---|---|

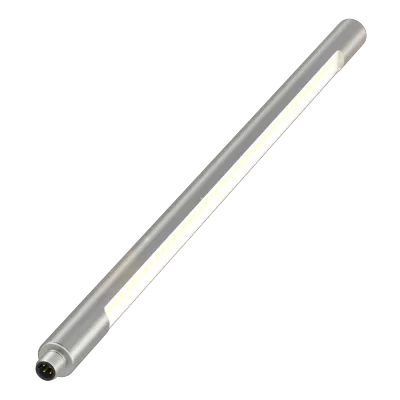

| BAE012F | Connector, M12x1-Male | Ø 20 x 412 mm | 332 x 16 mm | 770 lm | 4000 K |

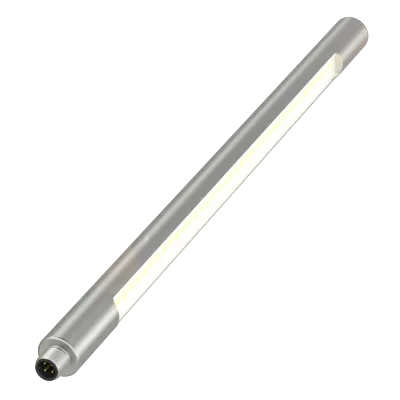

| BAE012E | Connector, M12x1-Male | Ø 20 x 358 mm | 278 x 16 mm | 675 lm | 4000 K |

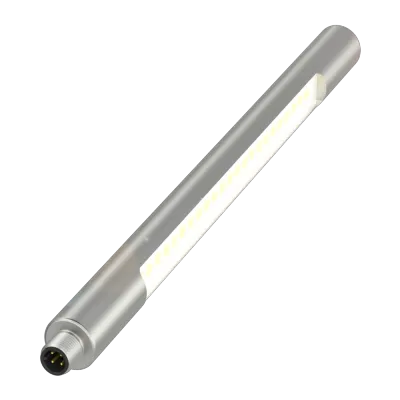

| BAE012C | Connector, M12x1-Male | Ø 20 x 250 mm | 170 x 16 mm | 385 lm | 4000 K |
| BAE00ZT | Connector, M12x1-Male, 4-pin | Ø 45 x 1200 mm | 1160 x 42 mm | 4400 lm | 5000 K |
| BAE00ZR | Connector, M12x1-Male, 4-pin | Ø 45 x 1000 mm | 960 x 42 mm | 3700 lm | 5000 K |
Common to all listed parts
| Version | Machine light |
| Rated operating voltage Ue DC | 24 V |
| Beam angle | 120 ° |
| Light type | LED white light diffuse |
| Ambient temperature | -20...40 °C |
| IP rating | IP67 |
