Balluff
BNS03U5BNS 813-B06-D10-46-49-06-FC – Mechanical multiple position limit switches with positive opening
Mechanical multiple position limit switches with positive opening Parts
Balluff
BNS03RZBNS 813-B02-D08-46-49-02-FC – Mechanical multiple position limit switches with positive opening
Balluff

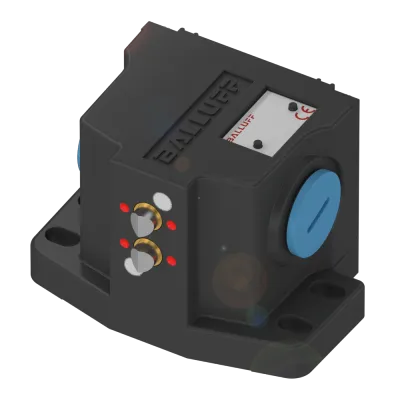

BNS03UNBNS 813-B02-R08-46-49-02-FC-S80R – Mechanical multiple position limit switches with positive opening
Balluff
BNS058K
Balluff
BNS057T
Balluff
BNS0568
Balluff
BNS055PCompare Mechanical multiple position limit switches with positive opening
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Number of switching positions | Continuous current | Rated operating voltage Ue | Approach speed |
|---|---|---|---|---|---|
| BNS03U5 | BNS 813-B06-D10-46-49-06-FC | 6x Chisel | 1-6. Switch position: 5 A | 1-6. Switch position: 250 V AC | 1-6. Switch position: 20 m/min |
| BNS03RZ | BNS 813-B02-D08-46-49-02-FC | 2x Chisel | 1-2. Switch position: 5 A | 1-2. Switch position: 250 V AC | 1-2. Switch position: 20 m/min |
| BNS03UN | BNS 813-B02-R08-46-49-02-FC-S80R | 2x Roller | 1-2. Switch position: 4 A | 1-2. Switch position: 24 V DC | 1-2. Switch position: 60 m/min |
Common to all listed parts
| Lifecycle | Active |
| Product group | Mechanical multiple position limit switches with positive opening |
| Housing material | Aluminium, Anodized |
| Version | with forced opening |
| Installation | Vertical |
| Approach direction | longitudinal, parallel to attachment surface |
| Ambient temperature | -5...85 °C |
| IP rating | IP67 |
