Capacitive level sensors Parts
Compare Capacitive level sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Series | Housing material | Material sensing surface | Ambient temperature | Dimension |
|---|---|---|---|---|---|

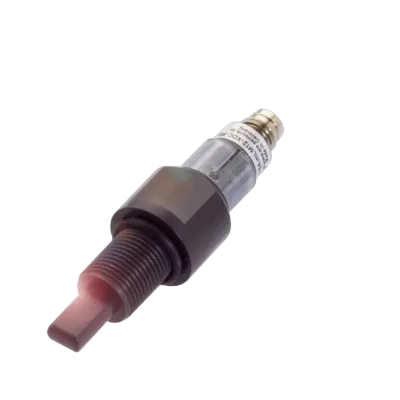

| BCS0095 | Level sensor | PSU | PSU | -10...105 °C | — |

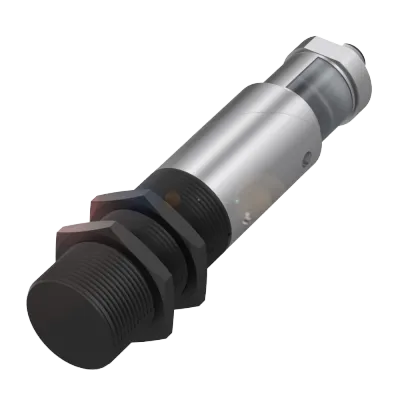

| BCS000L | — | PBT PC | PBT | -25...70 °C | Ø 30 x 143 mm |
| BCS015W | Z01 | POM | POM | -40...75 °C | Ø 18 x 101 mm |

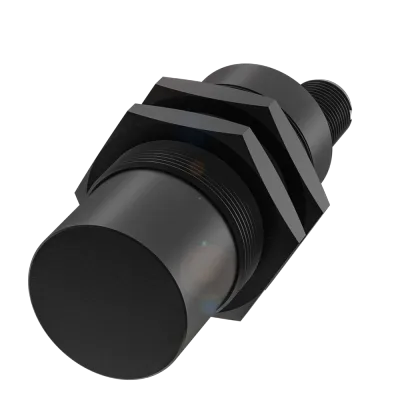

| BCS00NH | M30 | PBT | PBT | -25...85 °C | Ø 30 x 78.5 mm |

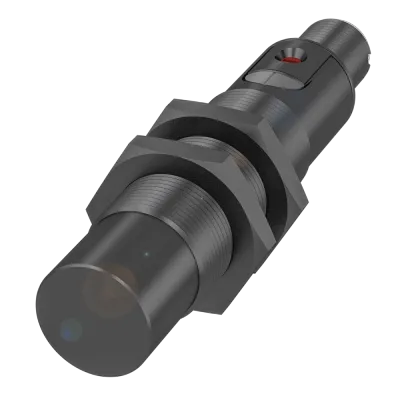

| BCS00LM | M18 | PBT | PBT | -25...85 °C | Ø 18 x 88.5 mm |
| BCS0179 | M12 | 1.4404 stainless steel | PEEK | -10...80 °C | Ø 12 x 60 mm |

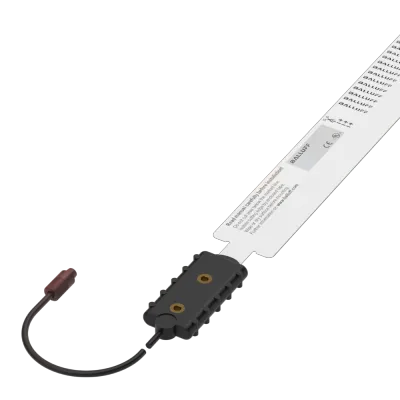

| BCW0004 | F03 | PETPA | 3M VHB 5925 | 0...60 °C | 33 x 2 x 850 mm |
| BCS00HF | M30 | Stainless steel | PTFE | -30...70 °C | Ø 30 x 87 mm |
