Home / Automation technology / Industrial controls / Transformers

Transformers Parts

Siemens

4AT3032-8JD40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 4 /16

Siemens

4AT3032-8ED40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 4 /17.8

Siemens

4AT3032-5FT10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 4 /16

Siemens

4AP3042-8CC40-0HA0

Transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 4 /20

Siemens

4AP3042-8BC40-0HC0

Transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 3.2 /20

Siemens

4AP3042-8BC40-0HA0

Transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 4 /20

Siemens

4AM3442-5CT10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.1 /0.31

Siemens

4AM3442-5FJ10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.1 /0.31

Siemens

4AM3442-5CT10-0FA1

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.1 /0.31

Siemens

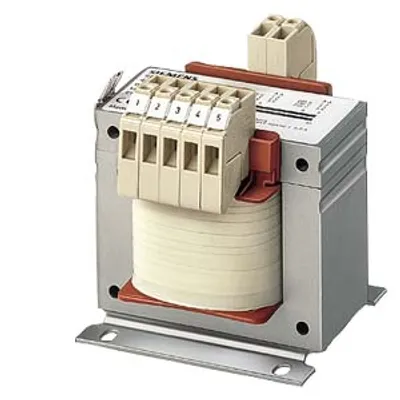

4AM3442-4TT10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.1 /0.31

Siemens

4AM3442-4TN00-0EC0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.09 /0.31

Siemens

4AM3242-8JN00-0EA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.063 /0.19

Siemens

4AM4842-5CT10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.5 /2

Siemens

4AM4842-5CJ10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.5 /2

Siemens

4AM4842-5AV00-0EA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.5 /2

Siemens

4AM4642-8JN00-0EB0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.4 /1.44

Siemens

4AM4642-8JN00-0EA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.4 /1.44

Siemens

4AM4642-8JD40-0FA1

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.4 /1.44

Siemens

4AM4642-8JD40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.4 /1.44

Siemens

4AT3032-8DD40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 4 /17.8

Siemens

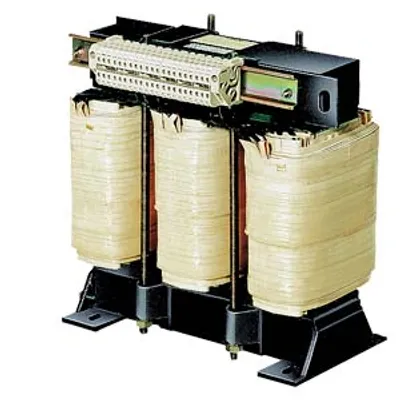

4AU3912-8CC40-0HA0

Transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 12.5 /43.7

Siemens

4AM3842-5AJ10-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.16 /0.49

Siemens

4AM3842-4TV00-0EA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.16 /0.49

Siemens

4AM3442-8ED40-0FA0

Transformer SITAS; phases: 1; Pn/Pn(S6)(kVA): 0.1 /0.31

Compare Transformers

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	operating apparent power rated value	short-term vector power	width	depth	relative short-circuit voltage
4AT3032-8JD40-0FA0	4 000 VA	17 800 VA	0.164 m	0.155 m	—
4AT3032-8ED40-0FA0	4 000 VA	17 800 VA	0.164 m	0.155 m	3.07 %
4AT3032-5FT10-0FA0	4 000 VA	17 800 VA	0.164 m	0.155 m	3.73 %
4AP3042-8CC40-0HA0	4 000 VA	20 000 VA	0.3 m	0.271 m	2.83 %
4AP3042-8BC40-0HC0	3 200 V·A	20 000 V·A	0.351 m	0.33 m	2.78 %
4AP3042-8BC40-0HA0	4 000 VA	20 000 VA	0.3 m	0.271 m	2.7 %
4AM3442-5CT10-0FA0	100 V·A	310 V·A	0.086 m	0.102 m	7.7 %
4AM3442-5FJ10-0FA0	100 V·A	310 V·A	0.086 m	0.102 m	7.7 %
4AM3442-5CT10-0FA1	100 VA	310 VA	0.086 m	0.102 m	7.7 %
4AM3442-4TT10-0FA0	100 VA	310 VA	0.086 m	0.102 m	7.7 %
4AM3442-4TN00-0EC0	90 V·A	310 V·A	0.086 m	0.102 m	7.7 %
4AM3242-8JN00-0EA0	63	190	0.086	0.09	8.4
4AM4842-5CT10-0FA0	500	2 000	0.122	0.134	3.8
4AM4842-5CJ10-0FA0	500	2 000	0.122	0.134	3.8
4AM4842-5AV00-0EA0	500	2 000	0.122	0.134	4.58
4AM4642-8JN00-0EB0	400	1 440	0.122	0.114	4.4
4AM4642-8JN00-0EA0	400	1 440	0.122	0.114	5.77
4AM4642-8JD40-0FA1	400 VA	1 440 VA	0.122 m	0.114 m	4.4 %
4AM4642-8JD40-0FA0	400	1 440	0.122	0.114	4.83
4AT3032-8DD40-0FA0	4 000 VA	17 800 VA	0.164 m	0.155 m	3.36 %
4AU3912-8CC40-0HA0	12 500 V·A	49 000 V·A	0.41 m	0.262 m	3.1 %
4AM3842-5AJ10-0FA0	160	490	0.098	0.104	7.7
4AM3842-4TV00-0EA0	160	490	0.098	0.104	7.7
4AM3442-8ED40-0FA0	100 VA	310 VA	0.086 m	0.102 m	7.7 %

Common to all listed parts

product designation	transformer SITAS
number of shielding windings	0
