SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles Parts
Compare SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | height | width | depth | number of modular height units for installation height | Net Weight |
|---|---|---|---|---|---|
| 8MF5864-5R | 1 800 mm | 600 mm | 400 mm | 34 | 85 kg |
| 8MF5864-4R | 1 800 mm | 600 mm | 400 mm | 34 | 85 kg |
| 8MF5084-4E | 2 000 mm | 800 mm | 400 mm | 38 | 110 kg |
| 8MF5068-5R | 2 000 mm | 600 mm | 800 mm | 38 | 120 kg |
| 8MF5068-5E | 2 000 mm | 600 mm | 800 mm | 38 | 120 kg |
| 8MF5068-4R | 2 000 mm | 600 mm | 800 mm | 38 | 120 kg |
| 8MF5068-4ES | 2 000 mm | 600 mm | 800 mm | 38 | 135 kg |
| 8MF5068-4E | 2 000 mm | 600 mm | 800 mm | 38 | 120 kg |
| 8MF5066-5R | 2 000 mm | 600 mm | 600 mm | 38 | 105 kg |
| 8MF2896-4E | 1 800 mm | 900 mm | 600 mm | 34 | 110 kg |
| 8MF2894-5R | 1 800 mm | 900 mm | 400 mm | 34 | 100 kg |
| 8MF2894-5E | 1 800 mm | 900 mm | 400 mm | 34 | 100 kg |
| 8MF2068-4E | 2 000 mm | 600 mm | 800 mm | 38 | 120 kg |

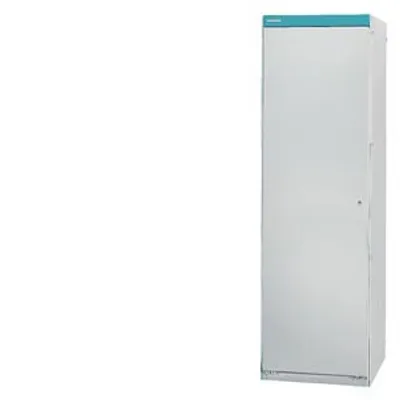

| 8MF2066-5R | 2 000 mm | 600 mm | 600 mm | 38 | 105 kg |
| 8MF2066-5E | 2 000 mm | 600 mm | 600 mm | 38 | 105 kg |
| 8MF2808-4E | 1 800 mm | 1 000 mm | 800 mm | 34 | 120 kg |
| 8MF2806-5R | 1 800 mm | 1 000 mm | 600 mm | 34 | 110 kg |
| 8MF2806-5E | 1 800 mm | 1 000 mm | 600 mm | 34 | 110 kg |
| 8MF2804-4R | 1 800 mm | 1 000 mm | 400 mm | 34 | 100 kg |
| 8MF2804-4E | 1 800 mm | 1 000 mm | 400 mm | 34 | 100 kg |
| 8MF2284-5E | 2 200 mm | 800 mm | 400 mm | 43 | 135 kg |
| 8MF2284-4R | 2 200 mm | 800 mm | 400 mm | 43 | 135 kg |
| 8MF2284-4E | 2 200 mm | 800 mm | 400 mm | 43 | 135 kg |
| 8MF2096-5E | 2 000 mm | 900 mm | 600 mm | 38 | 135 kg |
Common to all listed parts
| design of the surface | powdered |
| design of the control cabinet PC design | No |
| design of the control cabinet console design | No |
| suitability for installation for inch dimensions | 10-inch, 17-inch, 19-inch, 21-inch, 23-inch, 24-inch |
| suitability for installation for metric dimensions | M8 |
| suitability for use for outside use | No |
| RAL color number | 7 035 |
| color | pebble grey |
