Wago
207-1433Gelbox; Branch; for cables; with gel; 221 Series; max. 6 mm² connectors; without splicing connectors; Size 3; gray
Installation Terminal Blocks and Connectors Parts
Browse Subcategories
Wago
207-1372Gelbox; inline connection; for cables; with gel; 221 Series; max. 4 mm² connectors; without splicing connectors; Size 1; gray
Wago
207-1373Gelbox; inline connection; for cables; with gel; 221 Series; max. 4 mm² connectors; without splicing connectors; Size 2; gray
Wago
207-4301Junction box; Branch; for multicore cables; 221 Series; max. 4 mm² connectors; without splicing connectors; white
Wago
207-5485/316-000Cable repair set; for multicore cables; Straight-through; with glue; Cable diameter 8 - 24 mm; with enclosed splicing connectors; medium-walled; black
Wago
2273-500Mounting carrier; for single- and double-row con.; 2273 Series; for DIN-35 rail mounting/screw mounting; orange
Wago
207-1332Gelbox; Branch; for cables; with gel; 221, 2x73 Series; max. 4 mm² connectors; without splicing connectors; Size 2; gray
Wago
207-1333Gelbox; Branch; for cables; with gel; 221, 2x73 Series; max. 4 mm² connectors; without splicing connectors; Size 3; gray
Wago
207-1331Gelbox; Branch; for cables; with gel; 221, 2x73 Series; max. 4 mm² connectors; without splicing connectors; Size 1; gray
Wago
773-168PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 8-conductor; transparent housing; dark gray cover; Surrounding air temperature: max 60°C; 2,50 mm²; t
Wago
773-504PUSH WIRE® splicing connector; for solid and stranded conductors; max. 2.5 mm²; 4-conductor; Black housing; black cover; Surrounding air temperature: max 60°C; 2,50 mm²; black
Wago
773-112PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 2-conductor; transparent housing; green cover; Surrounding air temperature: max 60°C; 2,50 mm²; trans
Wago
773-162PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 2-conductor; transparent housing; yellow cover; Surrounding air temperature: max 60°C; 2,50 mm²; tran
Wago
773-118PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 8-conductor; transparent housing; green cover; Surrounding air temperature: max 60°C; 2,50 mm²; trans
Wago
773-116PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 6-conductor; transparent housing; green cover; Surrounding air temperature: max 60°C; 2,50 mm²; trans
Wago
773-493PUSH WIRE® splicing connector; for solid and stranded conductors; for Ex applications; max. 6 mm²; 3-conductor; light gray housing; light gray cover; Surrounding air temperature: max 60°C; 6
Wago
773-164PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 4-conductor; transparent housing; orange cover; Surrounding air temperature: max 60°C; 2,50 mm²; tran
Wago
224-111Lighting connector; push-button on lighting side; Alu-Plus contact paste; Lighting side: for all conductor types; Inst. side: for solid conductors; 224 Series; max. 2.5 mm²; Surrounding air t
Wago
773-514PUSH WIRE® splicing connector; for solid and stranded conductors; max. 2.5 mm²; 4-conductor; Black housing; black cover; Max. surrounding air temperature: 105 °C; 2,50 mm²; black
Wago

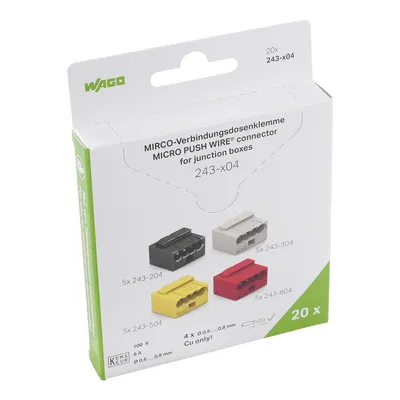

243-9294/995-020MICRO PUSH WIRE® connector for junction boxes; for solid conductors; max. 0.8 mm Ø; 4-conductor; light gray cover; Surrounding air temperature: max 60°C; 0,80 mm²; dark gray
Wago
773-124PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 2.5 mm²; 4-conductor; transparent housing; light gray cover; Surrounding air temperature: max 60°C; 2,50 mm²;
Compare Installation Terminal Blocks and Connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Width | Weight | PU (SPU) | GTIN | Fire load |
|---|---|---|---|---|---|
| 207-1433 | 57 mm / 2.244 inches | 35.4 g | 24 (2) pcs | 4055144097306 | — |
| 207-1372 | 32.7 mm / 1.26 inches | 19.8 g | 28 (4) pcs | 4066966349962 | — |
| 207-1373 | 41.7 mm / 1.614 inches | 19.8 g | 28 (4) pcs | 4066966350067 | — |
| 207-4301 | 225 mm / 8.858 inches | 422.7 g | 1 pcs | 4066966072853 | — |
| 207-5485/316-000 | — | 42.6 g | 18 (1) pcs | 4066966371246 | 4.88 MJ |
| 2273-500 | 17.2 mm / 0.677 inches | 10.7 g | 50 (10) pcs | 4050821101871 | 0.31 MJ |
| 207-1332 | 45.9 mm / 1.807 inches | 18.4 g | 48 (4) pcs | 4055143998017 | — |
| 207-1333 | 52.7 mm / 2.075 inches | 21 g | 36 (3) pcs | 4055143997805 | — |
| 207-1331 | 32 mm / 1.26 inches | 12 g | 48 (4) pcs | 4055143997799 | — |
| 773-168 | 24 mm / 0.945 inches | — | 6 (1) pcs | — | 0.99 MJ |
| 773-504 | 13 mm / 0.512 inches | 2.5 g | 1000 (100) pcs | 4055143026529 | 0.055 MJ |
| 773-112 | 9.2 mm / 0.362 inches | 1.8 g | 1000 (100) pcs | 4044918397773 | 0.037 MJ |
| 773-162 | 9.2 mm / 0.362 inches | 1.8 g | 1000 (100) pcs | 4044918397995 | — |
| 773-118 | 24 mm / 0.945 inches | 4.6 g | 500 (50) pcs | 4055143237567 | 0.099 MJ |
| 773-116 | 18.8 mm / 0.74 inches | 3.5 g | 500 (50) pcs | 4055143237550 | 0.076 MJ |
| 887-853 | 259 mm / 10.197 inches | 837.2 g | 1 pcs | 4066966194937 | 9.742 MJ |
| 773-493 | 25.6 mm / 1.008 inches | 5.8 g | 500 (50) pcs | 4055143287593 | 0.116 MJ |
| 773-164 | 13 mm / 0.512 inches | 2.7 g | 1000 (100) pcs | 4044918398022 | 0.057 MJ |
| 887-1159 | 445 mm / 17.519 inches | 961 g | 1 pcs | 4066966732153 | 15.1 MJ |
| 224-111 | 8 mm / 0.315 inches | 1.9 g | 100 pcs | 4044918583886 | 0.04 MJ |
| 773-514 | 13 mm / 0.512 inches | 2.1 g | 100 pcs | 4045454259433 | — |
| 243-9294/995-020 | 10 mm / 0.394 inches | 0.8 g | 360 (20) pcs | 4066966002003 | 0.012 MJ |
| 773-124 | 13 mm / 0.512 inches | 2.8 g | 1000 (100) pcs | 4044918397834 | 0.058 MJ |
| 887-928 | 445 mm / 17.519 inches | 3552.9 g | 1 pcs | 4066966130584 | 28.525 MJ |
Common to all listed parts
| Note (material data) | Information on material specifications can be found here |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
