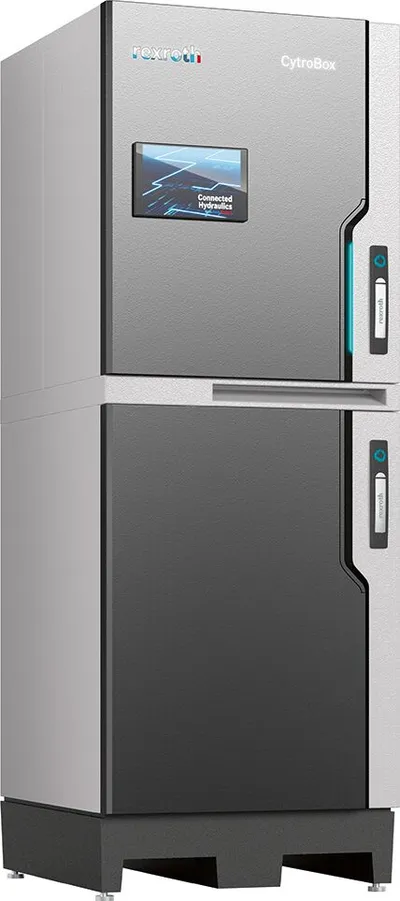

CytroBox medium-size power units Parts
Compare CytroBox medium-size power units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Operating pressure, max. [bar] | Max. flow [l/min] | Cooling capacity, max. [kW] | Performance class [kW] |
|---|---|---|---|---|---|
| R901600102 | 540 | 180.0 | 160.0 | 4 | 30 |
| R901600125 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600122 | 530 | 250.0 | 130.0 | 10 | 30 |
| R901600139 | 530 | 315.0 | 95.0 | 10 | 30 |
| R901600131 | 530 | 315.0 | 95.0 | 10 | 30 |
| R901600138 | 520 | 315.0 | 95.0 | 10 | 30 |
| R901600140 | 480 | 230.0 | 50.0 | 10 | 15 |
| R901600127 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600119 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600100 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600083 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600104 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600111 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600112 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600099 | 540 | 180.0 | 160.0 | 10 | 30 |
| R901600067 | 530 | 180.0 | 160.0 | 10 | 30 |
| R901600101 | 540 | 180.0 | 160.0 | 4 | 30 |
| R901600106 | 540 | 180.0 | 160.0 | 4 | 30 |
| R901600091 | 540 | 180.0 | 160.0 | 4 | 30 |
| R901600032 | 540 | 180.0 | 160.0 | 4 | 30 |
| R901600105 | 530 | 180.0 | 160.0 | 4 | 30 |
| R901600031 | 530 | 180.0 | 160.0 | 4 | 30 |
| R901600048 | 530 | 180.0 | 160.0 | 4 | 30 |
Common to all listed parts
| Product family | CytroBox |
| Oscillating volume [l] | 50 |
| Supply voltage | 400...500 VAC (-15%/+10%) |
| Tank capacity [l] | 150 |
| Conformity | CE |
| Hydraulic fluid | HLP |
