Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Command Signal | Design Series | Digital Comm. Interface | ISO Interface | Model Code 1 |
|---|---|---|---|---|---|
| 84011981 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000092L25N11E07NSN01 |
| 84011980 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000092L50N11E07NSN01 |
| 84011979 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000092L80N11E07NSN01 |

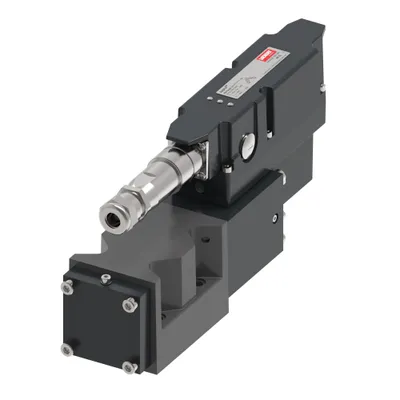

| 84011978 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050092L100N50N22E07NSN01 |
| 84011977 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000092L50N22H07NSN01 |
| 84011976 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000096L80N21E07NSN01 |
| 84011975 | +/- 10mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050000092L100N32C07NSN01 |
| 84011974 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000096L80N11H07NSN01 |
| 84011973 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000096L50N11C07NSN01 |
| 84011972 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000092L80N21E07NSN01 |
| 84011971 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000096L80N22E07NSN01 |

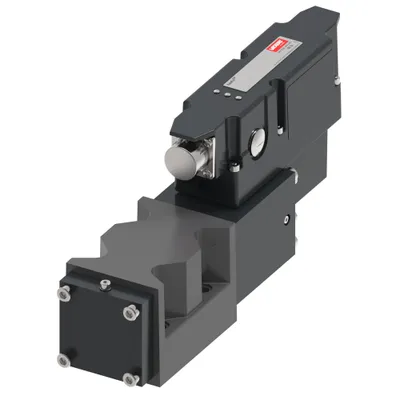

| 84011955 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000096L80N11C07NSN01 |
| 84011954 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000096L80N11E07NSN01 |
| 84011953 | +/- 20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050000096L100N51H07NSN01 |
| 84011952 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050092L100N50N22H07NSN01 |
| 84011950 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD140500000092L80N11H07NSN01 |
| 84011931 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050000092L100N11H07NSN01 |
| 84011930 | +/- 10V Voltage | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050000092L100N11E07NSN01 |
| 84011929 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-05 | KBSD14050000096L100N22C07NSN01 |
| 84011928 | +/- 10V Voltage | 01 Series | Not selected | ISO 4401 size-05 | KBSD14050000092L100N11C07NSN01 |

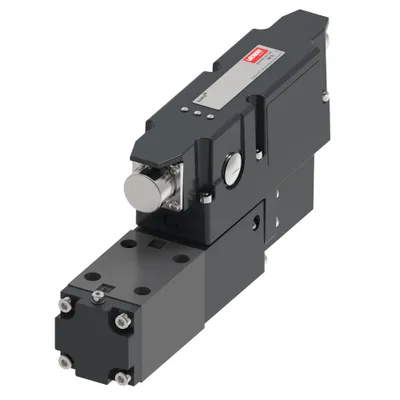

| 84011927 | +/- 10V Voltage | 01 Series | CANOPEN | ISO 4401 size-03 | KBSD140300000092L24N11C07CON01 |

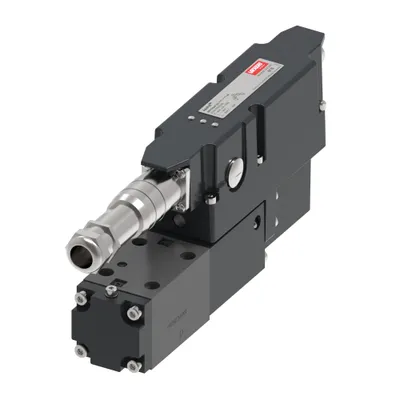

| 84011926 | +/- 10V Voltage | 01 Series | Not selected | ISO 4401 size-03 | KBSD140300000092L24N11C07NSN01 |

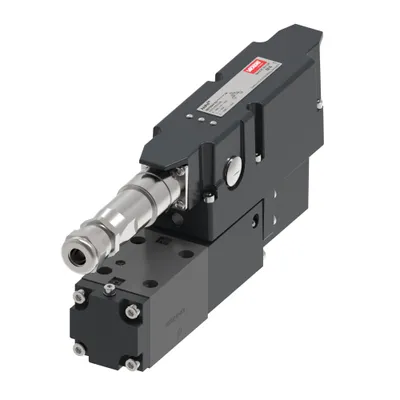

| 84011923 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-03 | KBSD140300000096L12N21E07NSN01 |
| 84011922 | 4-20mA Current | Design series -01 | Not selected | ISO 4401 size-03 | KBSD140300000092L12N21H07NSN01 |
Common to all listed parts
| Actuation | Solenoid operated single stage |
| Coil Rating & Overrides | 24 VDC Amplifier supply, water-resistant overrides |
| Configuration level | Directional level - 1 |
| EN Series | Omit for standard |
| External Sensor | NONE |
| Model | Industrial proportional valves |
| Model Code 2 | H0010000000 |
| Pilot Supply & Drain Option | None_ |
