Railway hose and fittings Parts
Compare Railway hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Burst pressure (bar) | Burst pressure (psi) | Outside diameter (inch) | Outside diameter (mm) | Working pressure max (bar) |
|---|---|---|---|---|---|

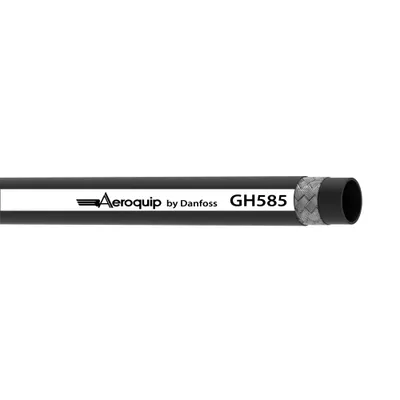

| GH585-5 | 272 | 3940 | 0.59 | 14.99 | 68 |
| FJ3424-2024S | — | — | — | — | — |

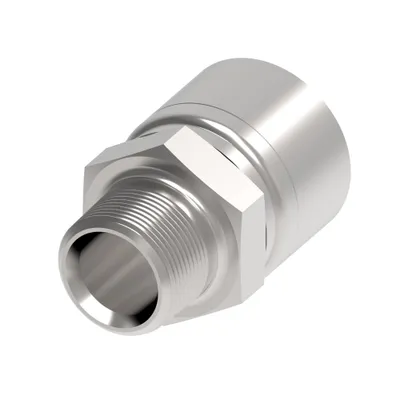

| FJ3424-1620S | — | — | — | — | — |
| FJ3424-1216S | — | — | — | — | — |
| FJ3424-0810S | — | — | — | — | — |

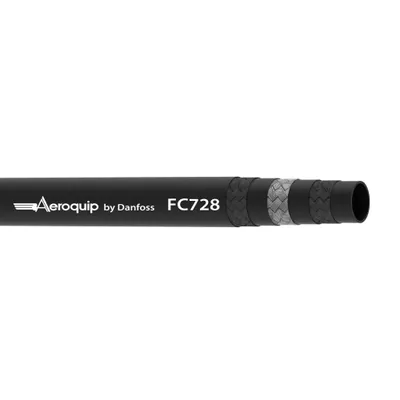

| FC728-16 | 84 | 1220 | 1.38 | 35.05 | 21 |
| EC212-32MT46 | 380 | 5500 | 2.50 | 63.40 | 90 |
| EC212-24MT46 | 400 | 5800 | 1.98 | 50.30 | 100 |
| EC212-20MT46 | 500 | 7200 | 1.72 | 43.60 | 125 |
| EC212-16MT50 | 660 | 9600 | 1.41 | 35.80 | 165 |
| EC212-12MT50R | 860 | 12500 | 1.10 | 27.90 | 215 |
| EC212-12MT50 | 860 | 12500 | 1.10 | 27.90 | 215 |
| EC212-10MT50 | 1000 | 14600 | 0.94 | 24.00 | 250 |
| EC212-08MT50 | 1100 | 16000 | 0.82 | 20.90 | 275 |
| EC212-06RL | 1320 | 19200 | 0.69 | 17.50 | 330 |
| EC212-06MT50R | 1320 | 19200 | 0.69 | 17.50 | 330 |
| EC212-06MT50 | 1320 | 19200 | 0.69 | 17.50 | 330 |

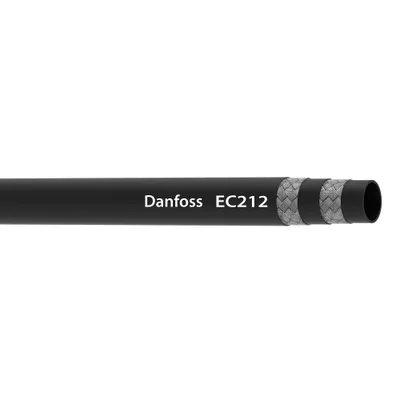

| EC212-05MT50 | 1400 | 20400 | 0.60 | 15.30 | 350 |
| EC212-04MT50 | 1600 | 23200 | 0.53 | 13.50 | 400 |

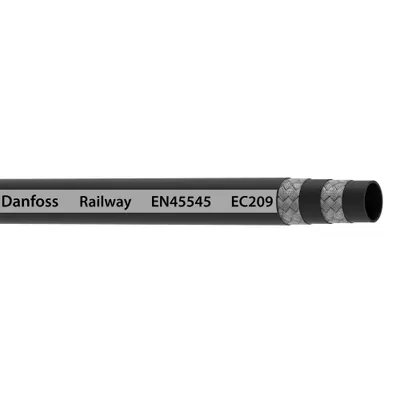

| EC209-08MT50 | 1100 | 16000 | 0.88 | 22.40 | 275 |
| EC190-40 | 16 | 240 | 3.13 | 79.50 | 4 |
| EC190-32 | 28 | 400 | 2.60 | 66.00 | 7 |

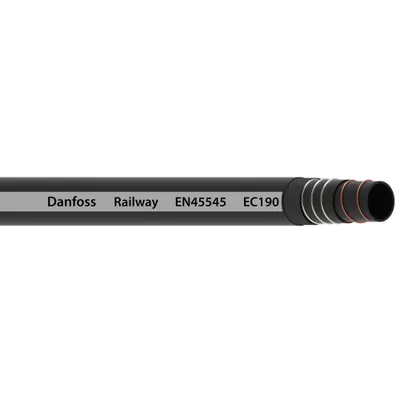

| EC190-24 | 40 | 580 | 2.06 | 52.40 | 10 |
