Beckhoff

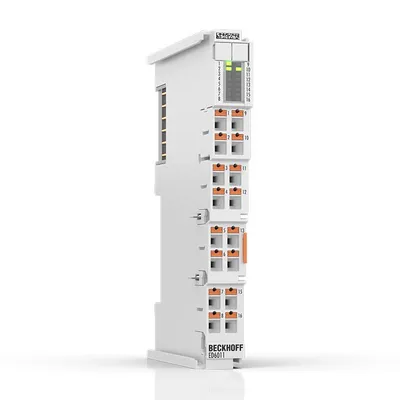

ED6011EtherCAT Terminal, 1-channel communication interface, serial, RS232/RS422/RS485, push-in
EL/ED6xxx | Communication Parts
Beckhoff

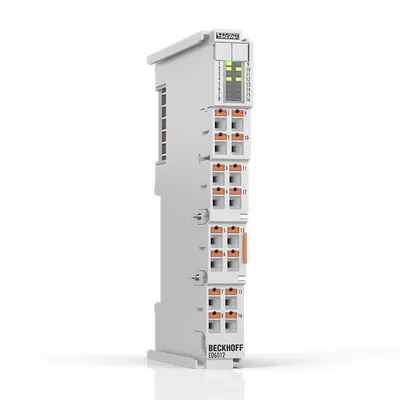

ED6012EtherCAT Terminal, 2-channel communication interface, serial, RS232/RS422/RS485, push-in
Compare EL/ED6xxx | Communication
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of channels | Total | Interfaces | Protocol | Device type | Transmission rate |
|---|---|---|---|---|---|
| ED6011 | 1 | RS232, RS422, RS485 | variable | master, slave | 300...921,600 baud |

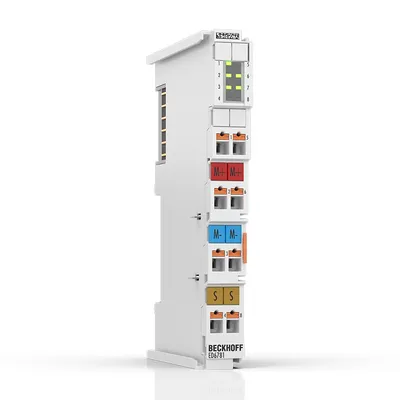

| ED6781 | 1 | M-Bus | M-Bus | M-Bus slave | 300...9,600 baud |
| ED6012 | 2 | RS232, RS422, RS485 | variable | master, slave | 300...921,600 baud |

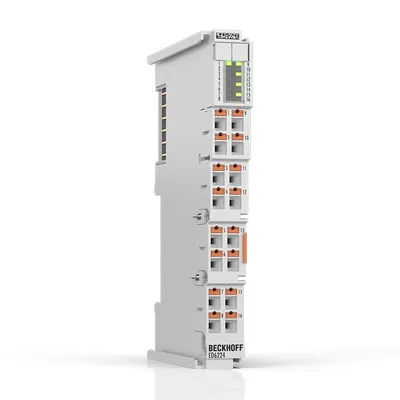

| ED6224 | 4 | IO-Link | IO-Link V1.1 | master | 4.8 kbaud, 38.4 kbaud, 230.4 kbaud |
Common to all listed parts
| Internal communication protocol | EtherCAT |
| Connection technology | push-in |
| Oversampling | no |
| Power contacts | Current carrying capacity | max. 10 A DC |
| Power contacts | Output voltage | corresponds to Power contacts | Input voltage |
| Electrical isolation | Channel/bus | functional, 707 V DC type test |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
