Beckhoff
ED4172EtherCAT Terminal, 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 10 ksps, push-in
EL/ED4xxx | Analog output Parts
Beckhoff
ED4078EtherCAT Terminal, 8-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in
Beckhoff

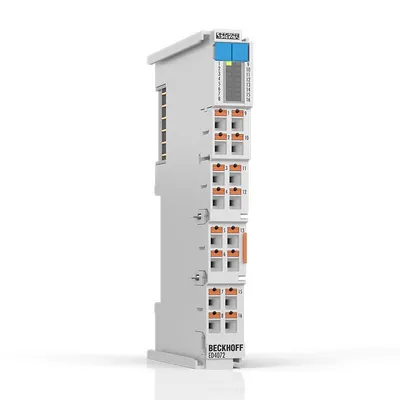

ED4072EtherCAT Terminal, 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in
Beckhoff
ED4074EtherCAT Terminal, 4-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in
Beckhoff
ED4174EtherCAT Terminal, 4-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 10 ksps, push-in
Compare EL/ED4xxx | Analog output
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of channels | Total | Number of channels | Load | E-bus | Current consumption | Power contacts | Current consumption |
|---|---|---|---|---|---|
| ED4172 | 2 | max. 2 | 750 Ω | typ. 70 mA | typ. 30 mA |
| ED4078 | 8 | max. 8 | 300 Ω | typ. 135 mA | typ. 60 mA |
| ED4072 | 2 | max. 2 | 750 Ω | typ. 100 mA | typ. 60 mA |
| ED4074 | 4 | max. 4 | 500 Ω | typ. 110 mA | typ. 60 mA |
| ED4174 | 4 | max. 4 | 750 Ω | typ. 70 mA | typ. 40 mA |
Common to all listed parts
| Internal communication protocol | EtherCAT |
| Load type | ohmic |
| Connection technology | push-in |
| Resolution | Technical | 16 bits, including sign |
| Resolution | Process data | 655.35… nA |
| Display | Process data | REAL32, INT16 |
| Signal range | Nominal | -20…+20 mA, 0…20 mA, 4…20 mA |
| Signal range | Technical | -21.47…+21.47 mA |
