EL/ED3xxx | Analog input Parts

Beckhoff ED3362 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 2 x digital combi

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 2 x digital combi

Beckhoff ED3361-0100 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 10 V DC

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 10 V DC

Beckhoff ED3072 – EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

Beckhoff ED3172 – EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, 10 ksps, push-in

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, 10 ksps, push-in

Beckhoff ED3074 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

Beckhoff ED3361 – EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 1 x digital input, 1 x digital output

Beckhoff

EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 5/10 V DC, with 1 x digital input, 1 x digital output

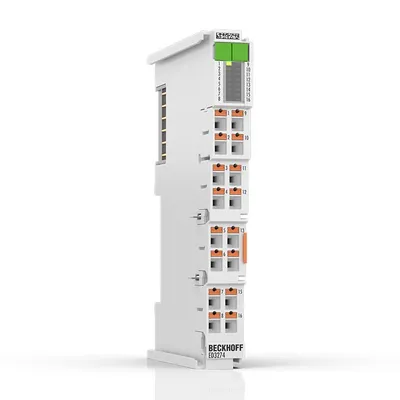

Beckhoff ED3274 – EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in

Beckhoff

EtherCAT Terminal, 4-channel analog input, temperature, RTD, TC, push-in

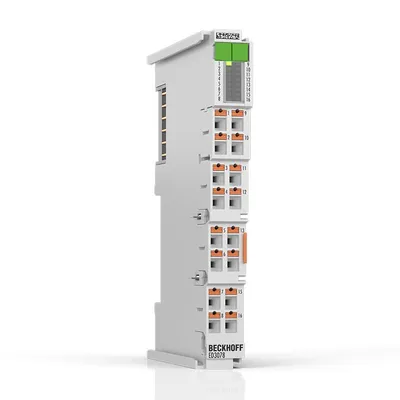

Beckhoff ED3078 – EtherCAT Terminal, 8-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

Beckhoff

EtherCAT Terminal, 8-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, 2 ksps, push-in

Beckhoff ED3362-0100 – EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 10 V DC

Beckhoff

EtherCAT Terminal, 2-channel analog input, measuring bridge, full bridge, 24 bit, push-in, sensor supply 10 V DC

Beckhoff ED3174 – EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, 10 ksps, push-in

Beckhoff

EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, 10 ksps, push-in

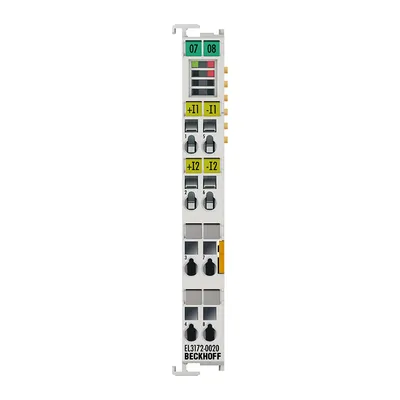

Beckhoff EL3172-0020 – EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated, factory calibrated

Beckhoff

EtherCAT Terminal, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated, factory calibrated

Compare EL/ED3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of channels \| Total	Number of channels	Resolution \| Technical	Conversion time	Conversion rate
ED3362	2	max. 2	24 bit	min. 100 µs	max. 10 ksps
ED3361-0100	1	1	24 bit	min. 100 µs	max. 10 ksps
ED3072	2	max. 2	16 bits, including sign	min. 500 µs per channel	max. 2 ksps per channel
ED3172	2	max. 2	16 bits, including sign	min. 100 µs per channel	max. 10 ksps per channel
ED3074	4	max. 4	16 bits, including sign	min. 500 µs per channel	max. 2 ksps per channel
ED3361	1	1	24 bit	min. 100 µs	max. 10 ksps
ED3274	4	max. 4	16 bit	10 ms	100 sps
ED3078	8	max. 8	16 bits, including sign	min. 500 µs per channel	max. 2 ksps per channel
ED3362-0100	2	2	24 bit	min. 100 µs	max. 10 ksps
ED3174	4	max. 2	16 bits, including sign	min. 100 µs per channel	max. 10 ksps per channel
EL3172-0020	—	—	—	minimum 150 µs	—

Common to all listed parts

Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Material	polycarbonate
Stripping length	8…9 mm
