EL/ED1xxx | Digital input Parts
Beckhoff
ED1897EtherCAT Terminal, 32-channel digital input, 24 V DC, adjustable, ground switching, push-in
Beckhoff
ED1859EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, push-in
Beckhoff

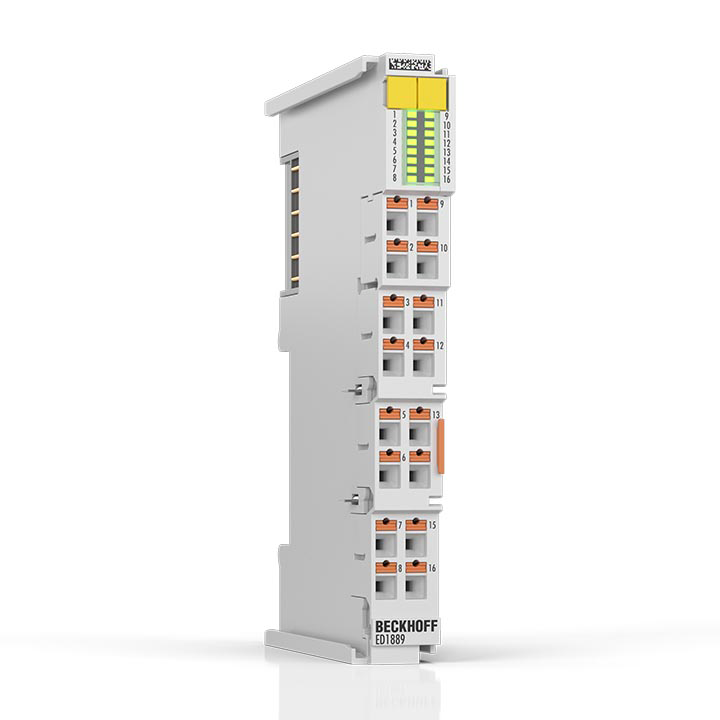

ED1829EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, positive/ground switching, push-in
Compare EL/ED1xxx | Digital input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of channels | Total | Number of channels | “0” signal voltage | E-bus | Current consumption | Power contacts | Current consumption |
|---|---|---|---|---|---|
| ED1008 | 8 | 8 | -3…+5 V DC | typ. 65 mA | typ. 10 mA + load |
| ED1809 | 16 | 16 | -3…+5 V DC | typ. 65 mA | typ. 10 mA + load |
| ED1837 | 32 | 32 | -3…+5 V DC | typ. 55 mA | typ. 30 mA + load |
| ED1889 | 16 | 16 | 19…24 V DC at 24 V DC | typ. 65 mA | typ. 10 mA + load |
| ED1897 | 32 | 32 | 19…24 V DC at 24 V DC | typ. 55 mA | typ. 20 mA + load |
| ED1859 | 16 | 8 | -3…+5 V DC | typ. 85 mA | typ. 20 mA + load |
| ED1819 | 16 | 16 | -3…+5 V DC | typ. 65 mA | typ. 10 mA + load |
| ED1839 | 16 | 16 | -3…+5 V DC | typ. 55 mA | typ. 10 mA + load |
| ED1829 | 16 | max. 16 | 9…15 V DC at 24 V DC | typ. 95 mA | typ. 5 mA + load |
Common to all listed parts
| Internal communication protocol | EtherCAT |
| Connection technology | push-in |
| Signal range | Nominal | 24 V DC |
| Signal range | Technical | 20.4…28.8 V DC |
| Distributed clocks | no |
| Timestamp | no |
| Oversampling | no |
| Electronics | Supply voltage | via E-bus, via power contacts |
