Frames Parts
Compare Frames
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | RAL color number | number of units | height | Net Weight |
|---|---|---|---|---|---|

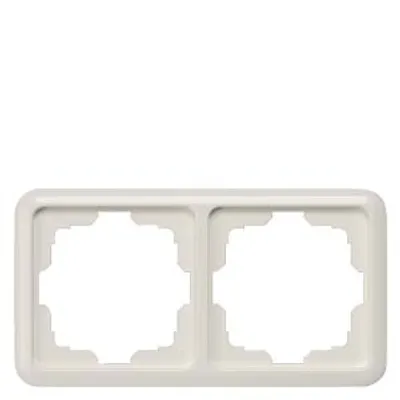

| 5TG1802 | Intermediate frame | 9 010 | 2 | 151 mm | 27 g |

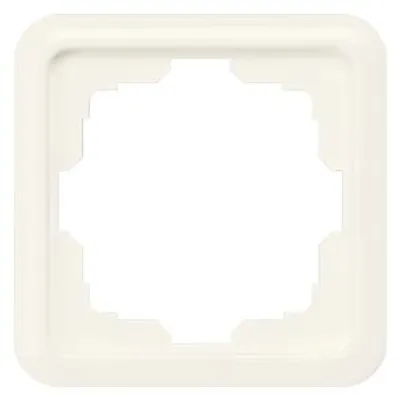

| 5TG1801 | Frame | 9 010 | 1 | 80 mm | 16 g |

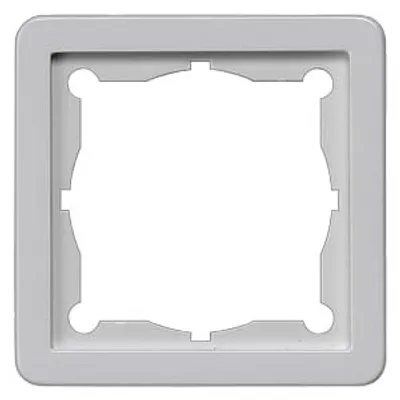

| 5TG1766 | Intermediate frame | 9 006 | 1 | 65 mm | 1 g |

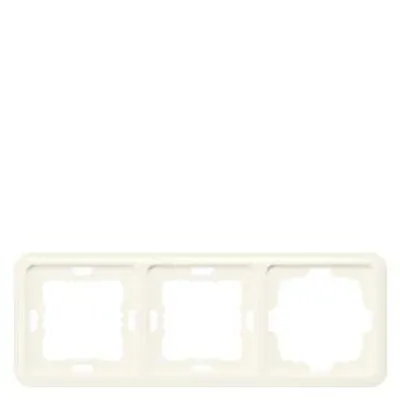

| 5TG1764 | Frame | 9 006 | 3 | 222 mm | 31 g |
Common to all listed parts
| design of cover frame flush design | No |
| surface processing | others |
| material | thermoplastic |
| protection class IP | IP20 |
| suitability for integration built-in installation | No |
| suitability for integration device installation duct | No |
| suitability for integration underfloor duct box | No |
| suitability for integration flush mounting | Yes |
