Frames Parts
Compare Frames
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | RAL color number | color | number of units | height | Net Weight |
|---|---|---|---|---|---|

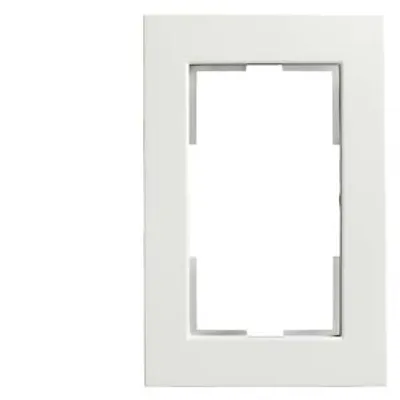

| 5TG1116-0 | 9 010 | Titanium white | 2 | 125 mm | 0.028 kg |

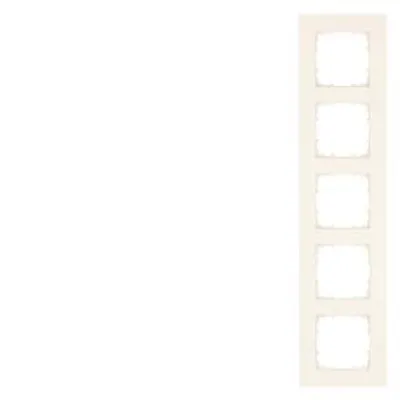

| 5TG1115-3 | 1 013 | Electrical white | 5 | 374 mm | 95 g |

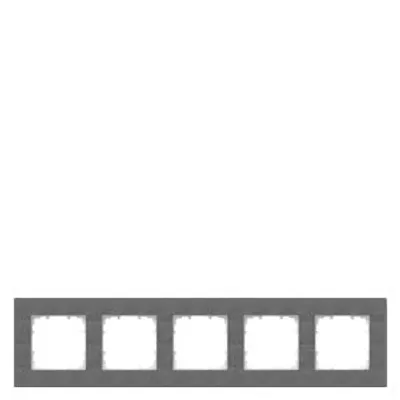

| 5TG1115-2 | 7 016 | Carbon metallic | 5 | 374 mm | 57 g |

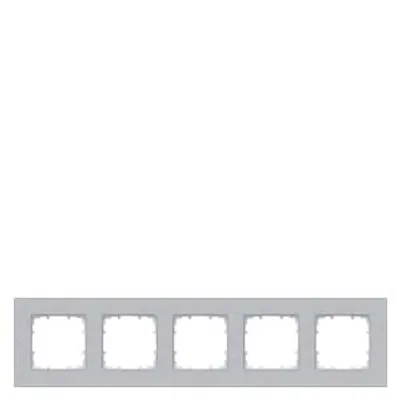

| 5TG1115-1 | 9 006 | Aluminum metallic | 5 | 374 mm | 95 g |

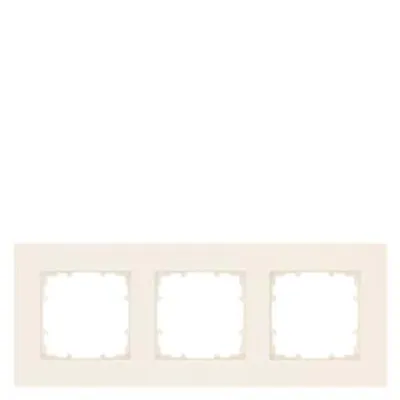

| 5TG1113-3 | 1 013 | Electrical white | 3 | 232 mm | 45 g |

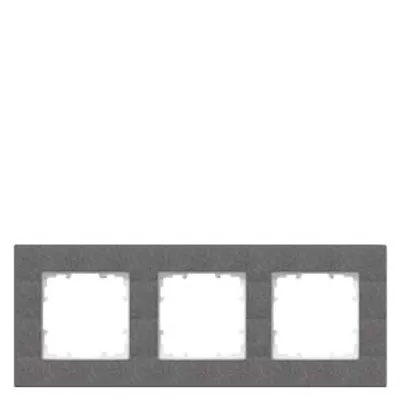

| 5TG1113-2 | 7 016 | Carbon metallic | 3 | 232 mm | 44 g |

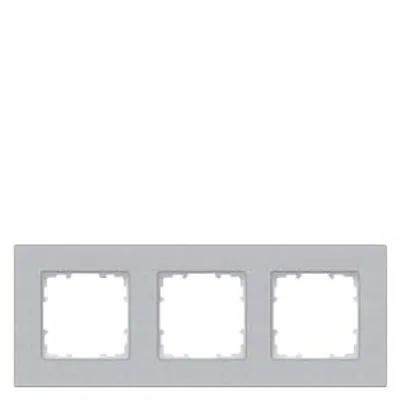

| 5TG1113-1 | 9 006 | Aluminum metallic | 3 | 232 mm | 45 g |

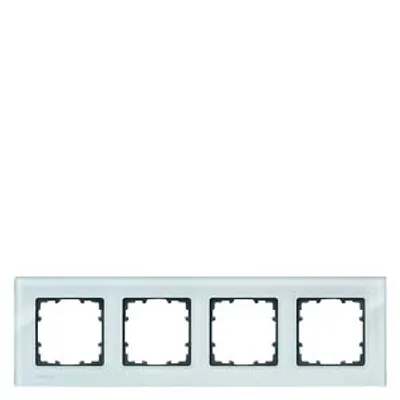

| 5TG1204 | 1 308 050 | crystal green | 4 | 303 mm | 276 g |

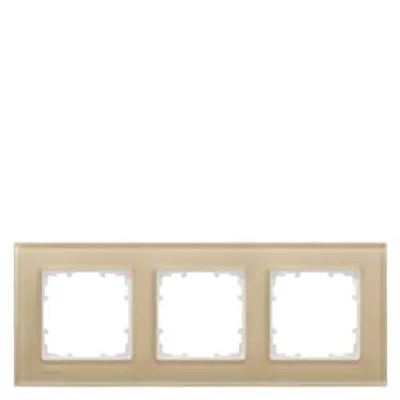

| 5TG1203-4 | 1 002 | Arena | 3 | 232 mm | 224 g |

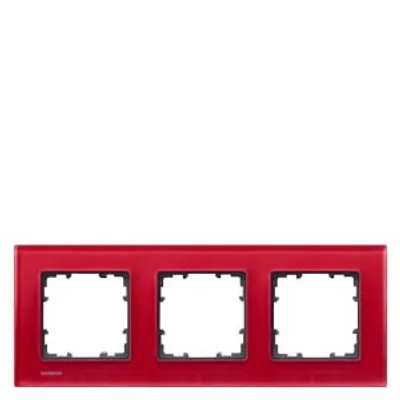

| 5TG1203-3 | 3 031 | Orient | 3 | 232 mm | 221 g |

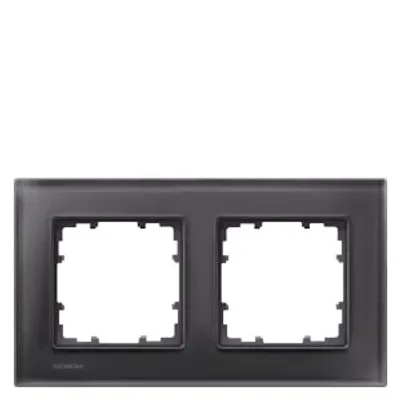

| 5TG1202-2 | 7 016 | black | 2 | 161 mm | 155 g |

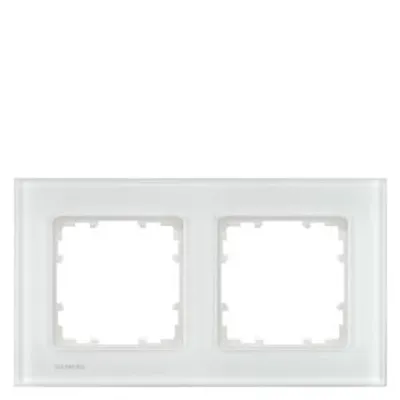

| 5TG1202-1 | 9 010 | white | 2 | 161 mm | 152 g |

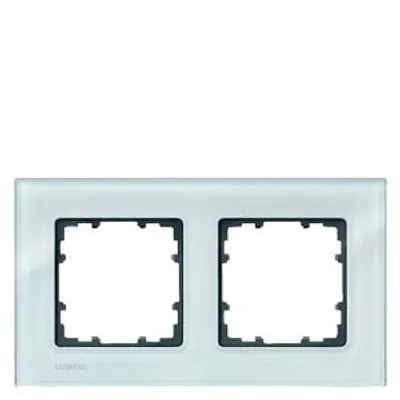

| 5TG1202-0 | 1 308 050 | crystal green | 2 | 161 mm | 156 g |

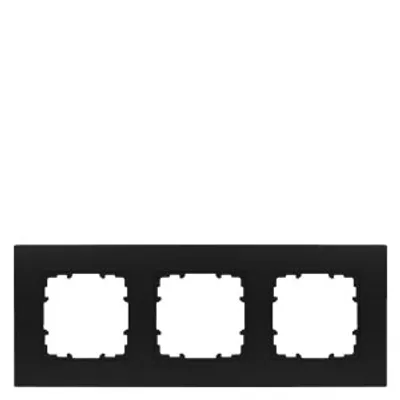

| 5TG1113-0SB | — | soft black | 3 | 232 mm | 41 g |

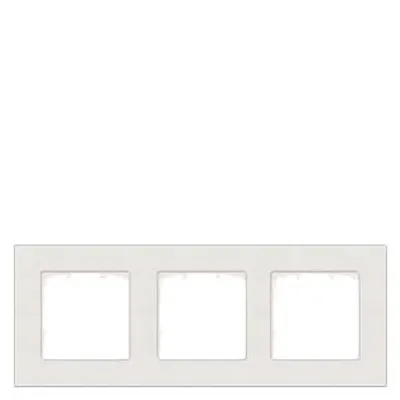

| 5TG1113-0 | 9 010 | Titanium white | 3 | 232 mm | 47 g |

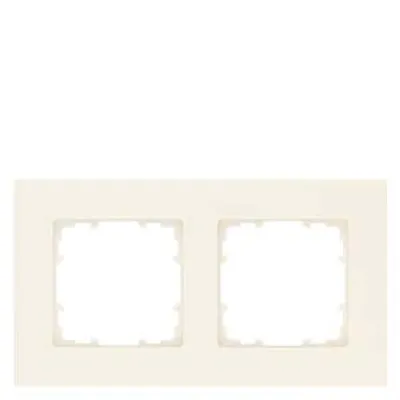

| 5TG1112-3 | 1 013 | Electrical white | 2 | 161 mm | 32 g |

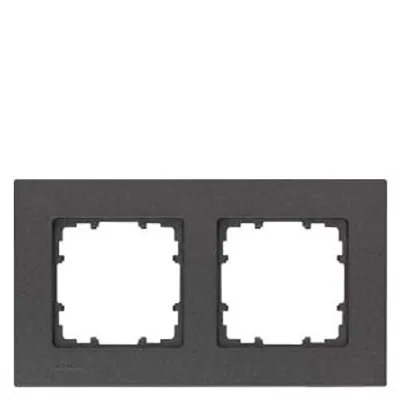

| 5TG1112-2 | 7 016 | Carbon metallic | 2 | 161 mm | 32 g |

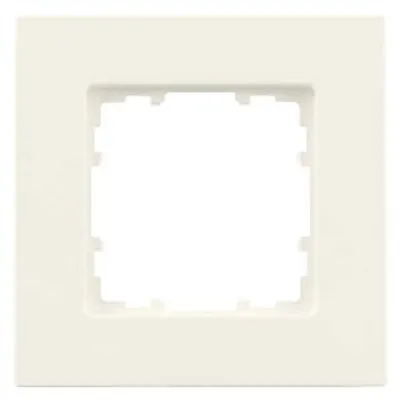

| 5TG1111-0 | 9 010 | Titanium white | 1 | 90 mm | 23 g |

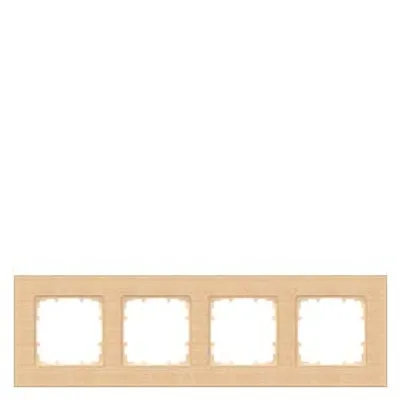

| 5TG1104-4 | 6 030 | beech | 4 | 303 mm | 114 g |

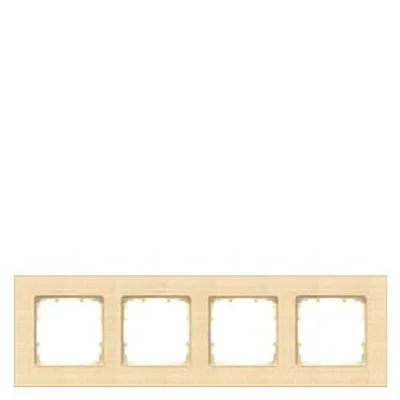

| 5TG1104-3 | 305 050 | maple | 4 | 303 mm | 103 g |
Common to all listed parts
| product designation | Frame |
| protection class IP | IP20 |
| suitability for integration underfloor duct box | No |
| suitability for integration flush mounting | Yes |
| product component — labeling field | No |
| product component — hinged lid | No |
| product feature halogen-free | Yes |
| product feature transparent | No |
