SIRIUS 3RA2 load feeders Parts

Showing 1–24 of 298 parts
Siemens 3RA2110-0KE15-1BB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0KE15-1BB4

Load feeder fuseless, Direct-on-line starting 400 V AC

Siemens 3RA2110-0KE15-1AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0KE15-1AP0

Load feeder fuseless, Direct-on-line starting 400 V AC

Siemens 3RA2110-0KD15-1FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0KD15-1FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

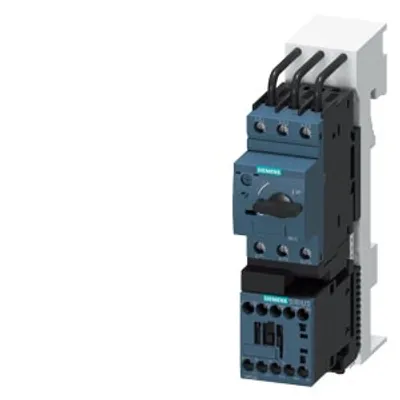

Siemens 3RA2110-0KD15-1BB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0KD15-1BB4

Load feeder fuseless, Direct-on-line starting 400 V AC

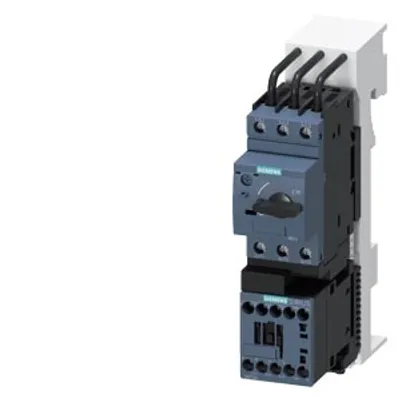

Siemens 3RA2110-0KD15-1AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0KD15-1AP0

Load feeder fuseless, Direct-on-line starting 400 V AC

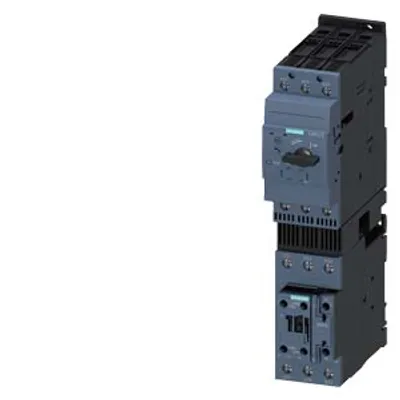

Siemens 3RA2150-4UA35-0AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC, Size S2 32...40 A 230 V AC
Siemens
3RA2150-4UA35-0AP0

Load feeder fuseless, Direct-on-line starting 400 V AC

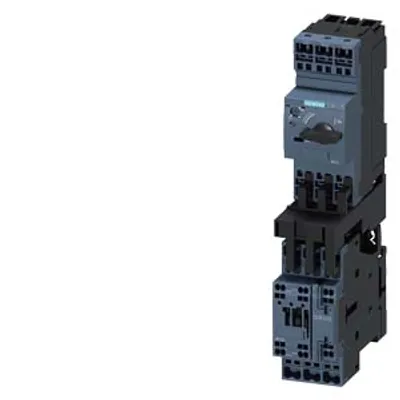

Siemens 3RA2120-1KE24-0AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2120-1KE24-0AP0

Load feeder fuseless, Direct-on-line starting 400 V AC

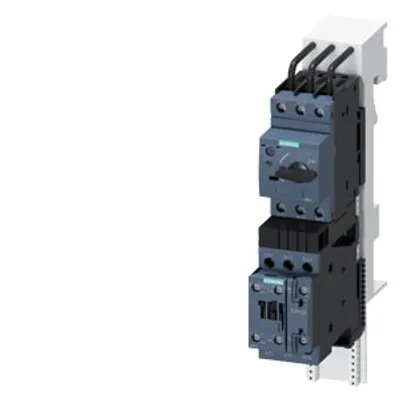

Siemens 3RA2120-1KD24-0FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2120-1KD24-0FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

Siemens 3RA2120-1KD24-0BB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2120-1KD24-0BB4

Load feeder fuseless, Direct-on-line starting 400 V AC

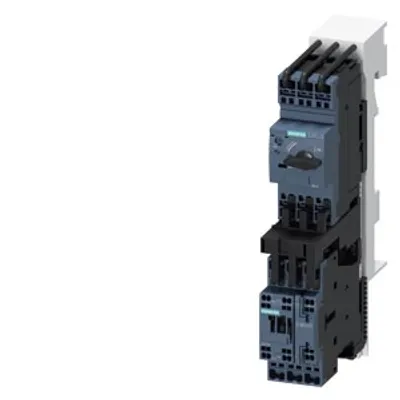

Siemens 3RA2120-1JH24-0BB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2120-1JH24-0BB4

Load feeder fuseless, Direct-on-line starting 400 V AC

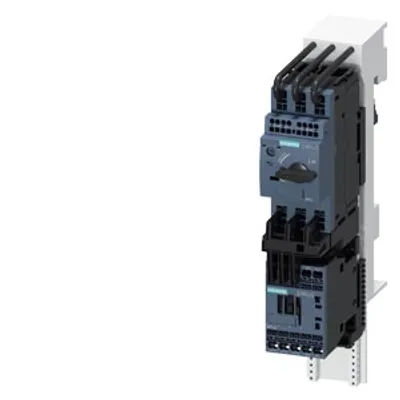

Siemens 3RA2115-1BH15-1FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2115-1BH15-1FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

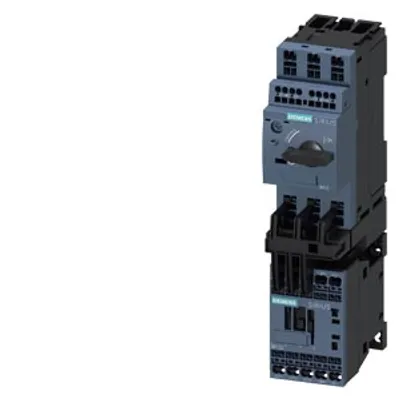

Siemens 3RA2115-1BE15-1FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2115-1BE15-1FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

Siemens 3RA2125-4AH26-0FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2125-4AH26-0FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

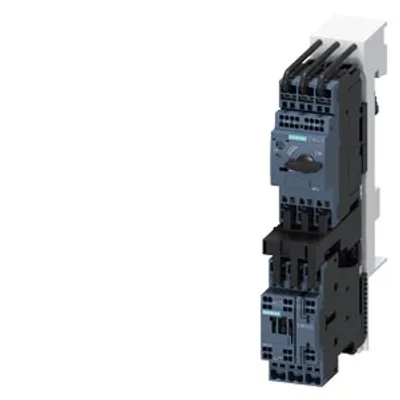

Siemens 3RA2125-1JH24-0FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2125-1JH24-0FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

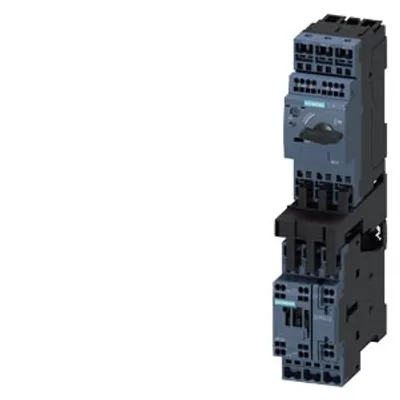

Siemens 3RA2125-1JE24-0FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2125-1JE24-0FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

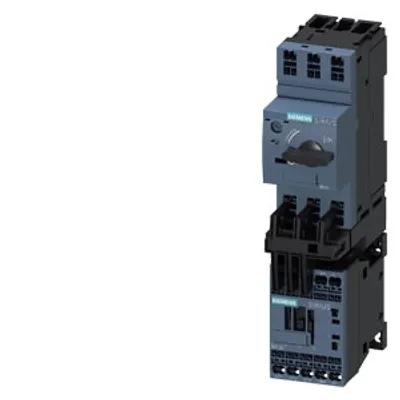

Siemens 3RA2110-0EE15-1AP0 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0EE15-1AP0

Load feeder fuseless, Direct-on-line starting 400 V AC

Siemens 3RA2110-0ED15-1FB4 – Load feeder fuseless, Direct-on-line starting 400 V AC
Siemens
3RA2110-0ED15-1FB4

Load feeder fuseless, Direct-on-line starting 400 V AC

Compare SIRIUS 3RA2 load feeders

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNmanufacturer's article number — of the supplied contactormanufacturer's article number — of the supplied circuit-breakersNet Weightadjustable current response value current of the current-dependent overload releaseoperational current — at AC-3 at 400 V rated value
3RA2110-0KE15-1BB43RT2015-2BB413RV2011-0KA200.687 kg0.9 ... 1.25 A1.3 A
3RA2110-0KE15-1AP03RT2015-2AP013RV2011-0KA200.64 kg0.9 ... 1.25 A1.3 A
3RA2110-0KD15-1FB43RT2015-1FB413RV2011-0KA100.825 kg0.9 ... 1.25 A1.3 A
3RA2110-0KD15-1BB43RT2015-1BB413RV2011-0KA100.831 kg0.9 ... 1.25 A1.3 A
3RA2110-0KD15-1AP03RT2015-1AP013RV2011-0KA100.771 kg0.9 ... 1.25 A1.3 A

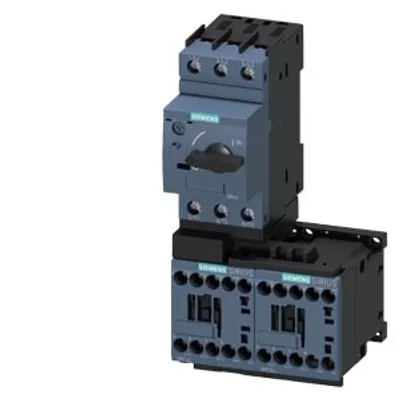

3RA2210-1BA15-2BB43RT2015-1BB423RV2011-1BA100.895 kg1.4 ... 2 A2 A
3RA2210-1BA15-2AP03RT2015-1AP023RV2011-1BA100.777 kg1.4 ... 2 A2 A

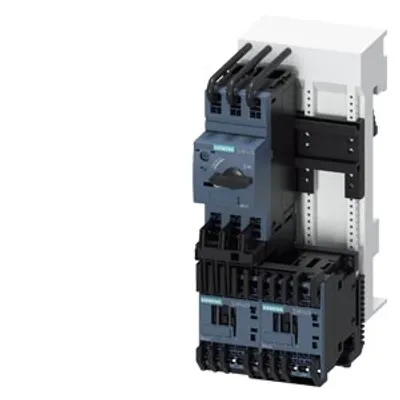

3RA2210-1AS15-2BB43RT2015-2BB423RV2011-1AA201.949 kg1.1 ... 1.6 A1.6 A
3RA2210-1AH15-2BB43RT2015-2BB423RV2011-1AA201.978 kg1.1 ... 1.6 A1.6 A

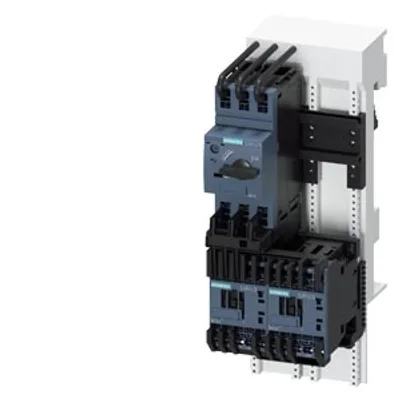

3RA2210-0JH15-2AP03RT2015-2AP023RV2011-0JA201.8 kg0.7 ... 1 A1 A

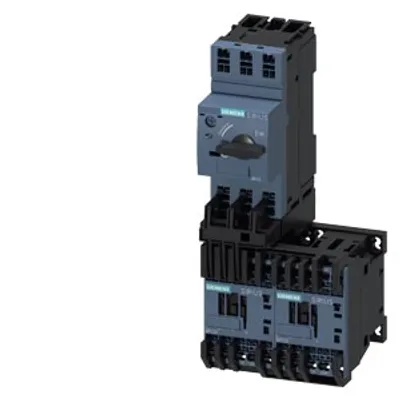

3RA2210-0JE15-2BB43RT2015-2BB423RV2011-0JA201.08 kg0.7 ... 1 A1 A
3RA2210-0JE15-2AP03RT2015-2AP023RV2011-0JA20986 g0.7 ... 1 A1 A
3RA2150-4UA35-0AP03RT2035-1AP003RV2032-4UA102.088 kg32 ... 40 A40 A
3RA2120-1KE24-0AP03RT2024-2AP003RV2021-1KA200.836 kg9 ... 12.5 A12 A
3RA2120-1KD24-0FB43RT2024-1FB403RV2011-1KA101.164 kg9 ... 12.5 A12 A
3RA2120-1KD24-0BB43RT2024-1BB403RV2011-1KA101.211 kg9 ... 12.5 A12 A
3RA2120-1JH24-0BB43RT2024-2BB403RV2021-1JA201.373 kg7 ... 10 A10 A
3RA2115-1BH15-1FB43RT2015-2FB413RV2011-1BA250.947 kg1.4 ... 2 A2 A
3RA2115-1BE15-1FB43RT2015-2FB413RV2011-1BA250.696 kg1.4 ... 2 A2 A
3RA2125-4AH26-0FB43RT2026-2FB403RV2021-4AA251.324 kg10 ... 16 A16 A
3RA2125-1JH24-0FB43RT2024-2FB403RV2021-1JA251.343 kg7 ... 10 A10 A
3RA2125-1JE24-0FB43RT2024-2FB403RV2021-1JA251.066 kg7 ... 10 A10 A
3RA2110-0EE15-1AP03RT2015-2AP013RV2011-0EA200.576 kg0.28 ... 0.4 A0.4 A
3RA2110-0ED15-1FB43RT2015-1FB413RV2011-0EA100.821 kg0.28 ... 0.4 A0.4 A

Common to all listed parts

type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
degree of protection NEMA ratingother
shock resistance according to IEC 60068-2-276 g / 11 ms
type of coordination2
reference code according to IEC 81346-2:2019Q
ambient temperature — during operation-20 ... +60 °C
