Axial piston fixed motors Parts
Compare Axial piston fixed motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Size (displacement) [cm³] | Shaft end | Working ports | Weight [kg] |
|---|---|---|---|---|---|
| R902230012 | A2FM | 125 | B (cyl.shaft w.key.DIN6885) | 02 (port A, B;SAE lat.opp.) | 34 |
| R902230008 | A2FM | 12 | P (cylindrical shaft with key DIN6885) | 04 (port A,B;4xthr. lat.+re.) | 6 |
| R902230007 | A2FM | 12 | P (cylindrical shaft with key DIN6885) | 03 (port A,B; thr. lat.) | 6 |
| R902230006 | A2FM | 12 | A (splined shaft DIN 5480) | 03 (port A,B; thr. lat.) | 6.25 |
| R902230005 | A2FM | 107 | P (cylindrical shaft with key DIN6885) | 02 (port A, B;SAE lat.opp.) | 42 |
| R902230004 | A2FM | 107 | A (splined shaft DIN 5480) | 02 (port A, B;SAE lat.opp.) | 37 |
| R902230003 | A2FM | 107 | A (splined shaft DIN 5480) | 01 (port A, B;SAE rear) | 32.5 |
| R902230002 | A2FM | 10 | B (cyl.shaft w.key.DIN6885) | 03 (port A,B; thr. lat.) | 6.67 |

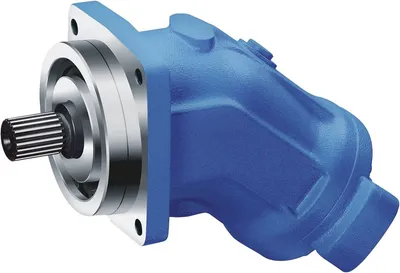

| R902230001 | A2FM | 10 | A (splined shaft DIN 5480) | 03 (port A,B; thr. lat.) | 7 |

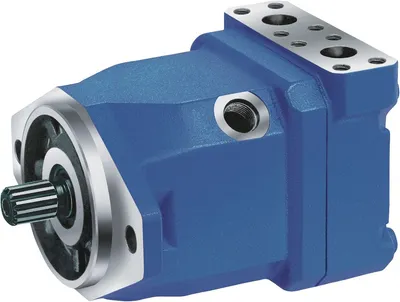

| R902406027 | A10F | 45 | R | 66 | 17.3 |
| R902230043 | A2FM | 90 | A (splined shaft DIN 5480) | 01 (port A, B;SAE rear) | 26 |
| R902253475 | A2FM | 63 | A (splined shaft DIN 5480) | 10 (A, B SAE bot;fast. thr.met) | 20 |
| R902230036 | A2FM | 56 | P (cylindrical shaft with key DIN6885) | 02 (port A, B;SAE lat.opp.) | 19.5 |
| R902230034 | A2FM | 45 | Z (splined shaft DIN 5480) | 02 (port A, B;SAE lat.opp.) | 19 |
