Components and Accessories Parts

Siemens

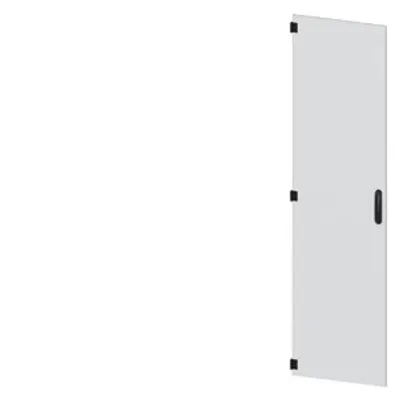

8MF1050-2UT15-0BA2

SIVACON, door, left, IP55, H: 2000 mm, W: 500 mm, RAL 7035

Siemens

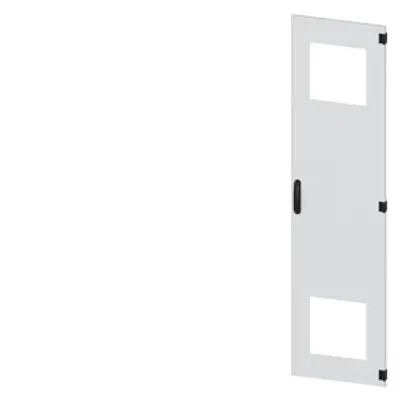

8MF1050-2UT14-3BA2

SIVACON, door, right, with cutout for filter fan

Siemens

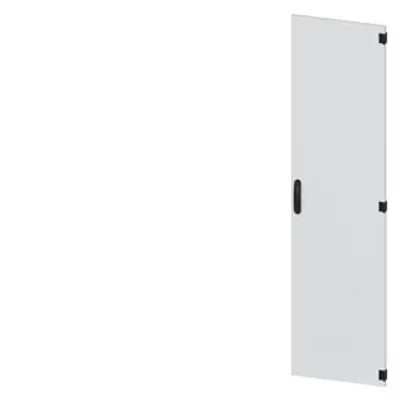

8MF1050-2UT14-2BA2

SIVACON, door, right, ventilated, IP40, H: 2000 mm

Siemens

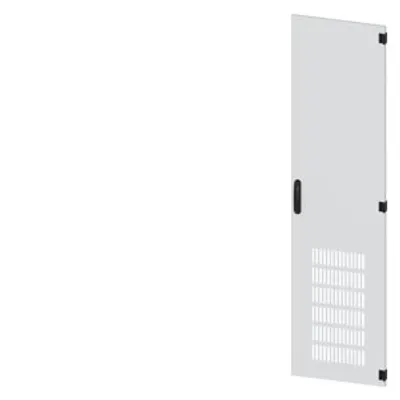

8MF1050-2UT14-1BA2

SIVACON, door, right, ventilated, IP20, H: 2000 mm

Siemens

8MF1050-2UT14-0CA1

SIVACON, door, right, EMC, IP40, H: 2000 mm, W: 500 mm

Siemens

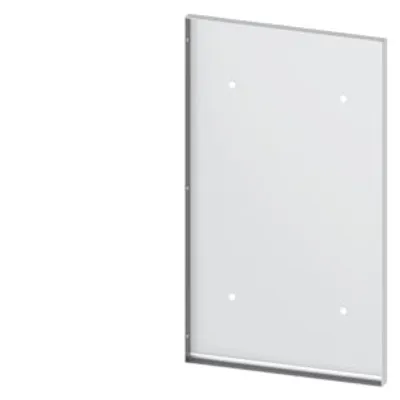

8MF1046-2VH

SIVACON, roof trough, for Increased degree of protection

Siemens

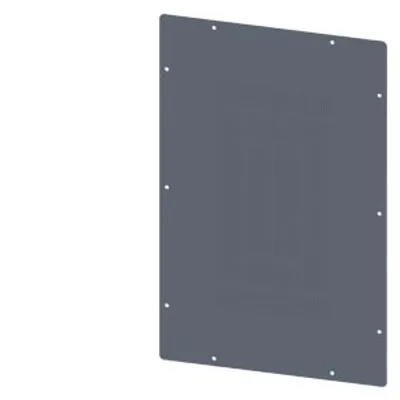

8MF1046-2UD30-0A

SIVACON, Roof, with Ventilation openings with Ventilation…

Siemens

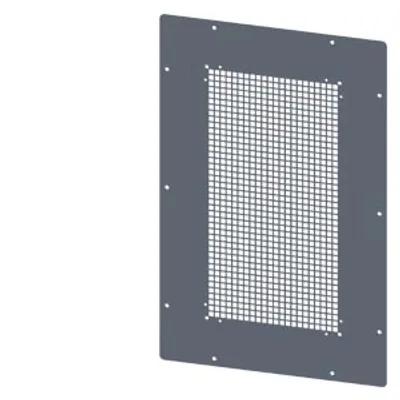

8MF1046-2UD20-0A

SIVACON, Roof, with Ventilation openings with Ventilation…

Siemens

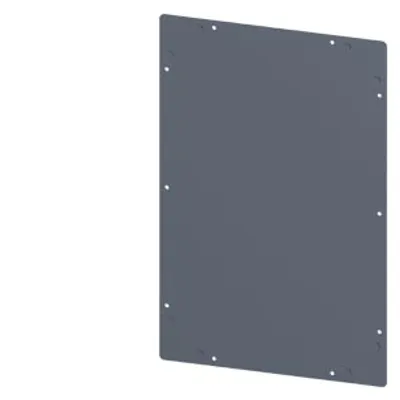

8MF1046-2UD12-0A

SIVACON, Roof, EMC, EMC, IP40, W: 400 mm, T: 600 mm

Siemens

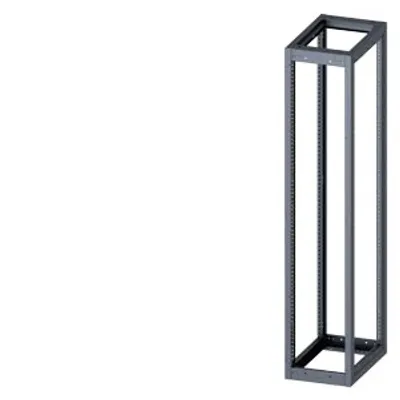

8MF1046-2GS40

SIVACON, Supporting structure, for standard Empty enclosure

Siemens

8MF1046-2GS30

SIVACON, Supporting structure, for standard Empty enclosure

Siemens

8MF1866-2GS40

SIVACON, Supporting structure, for standard Empty enclosure

Siemens

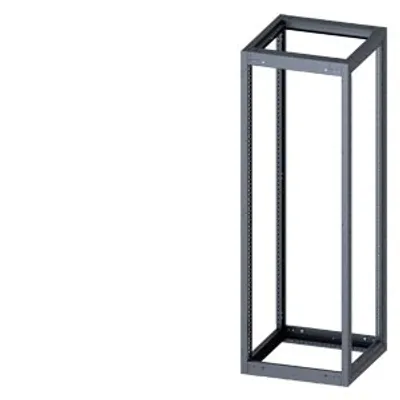

8MF1866-2GS30

SIVACON, Supporting structure, for standard Empty enclosure

Siemens

8MF1860-2UW63-1C

SIVACON, side panel, flat, IP40, H: 1800 mm, W: 600 mm

Siemens

8MF1860-2UW62-1B

SIVACON, side panel / rear panel, Closed, EMC, IP40

Siemens

8MF1860-2UW61-1C

SIVACON, side panel / rear panel, Closed, IP55, H: 1800 mm

Siemens

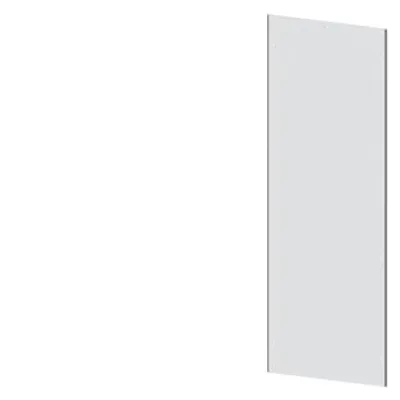

8MF1860-2UW60-1C

SIVACON, side panel / rear panel, Closed, IP40, H: 1800 mm

Siemens

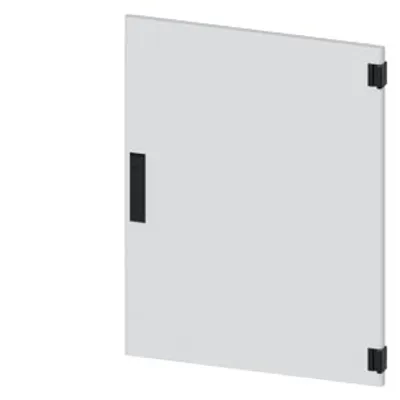

8MF1860-2UT34-0BA2

SIVACON, compartment door, right, IP40, H: 800 mm

Siemens

8MF1884-2GS40

SIVACON, Supporting structure, for standard Empty enclosure

Siemens

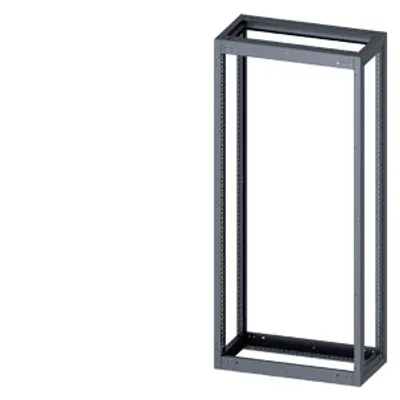

8MF1884-2GS30

SIVACON, Supporting structure, for standard Empty enclosure

Siemens

8MF1580-2HH

SIVACON, cable clamping rail, H: 50 mm, W: 800 mm

Siemens

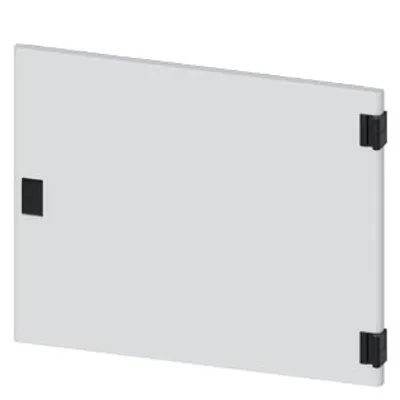

8MF1560-2UT34-0BA2

SIVACON, compartment door, right, IP40, H: 500 mm

Siemens

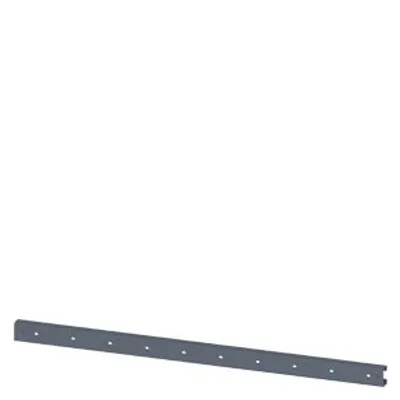

8MF1560-2HH

SIVACON, cable clamping rail, H: 50 mm, W: 600 mm

Siemens

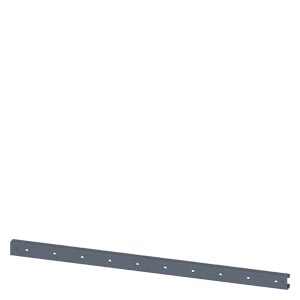

8MF1520-2HH

SIVACON, cable clamping rail, H: 50 mm, W: 1200 mm

Compare Components and Accessories

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	design of the product	height	width	Net Weight
8MF1050-2UT15-0BA2	Door	Closed	2 000 mm	500 mm	14.09 kg
8MF1050-2UT14-3BA2	Door	With cut-out for filter fan	2 000 mm	500 mm	16 kg
8MF1050-2UT14-2BA2	Door	With ventilation openings	2 000 mm	500 mm	16 kg
8MF1050-2UT14-1BA2	Door	With ventilation openings	2 000 mm	500 mm	16.1 kg
8MF1050-2UT14-0CA1	Door	Closed	2 000 mm	500 mm	13.994 kg
8MF1046-2VH	Roof trough	For an increased degree of protection	—	400 mm	4.5 kg
8MF1046-2UD30-0A	top plate	With ventilation openings	—	400 mm	1.9 kg
8MF1046-2UD20-0A	top plate	With ventilation openings	—	400 mm	1.5 kg
8MF1046-2UD12-0A	top plate	EMC	—	400 mm	3.1 kg
8MF1046-2GS40	supporting structure	For standard empty enclosure	2 000 mm	400 mm	41 kg
8MF1046-2GS30	supporting structure	For standard empty enclosure	2 000 mm	400 mm	41 kg
8MF1866-2GS40	supporting structure	For standard empty enclosure	1 800 mm	600 mm	40.4 kg
8MF1866-2GS30	supporting structure	For standard empty enclosure	1 800 mm	600 mm	40 kg
8MF1860-2UW63-1C	Side panel/rear panel	Flat	1 800 mm	600 mm	17 kg
8MF1860-2UW62-1B	Side panel/rear panel	EMC	1 800 mm	600 mm	13.446 kg
8MF1860-2UW61-1C	Side panel/rear panel	Closed	1 800 mm	600 mm	13.4 kg
8MF1860-2UW60-1C	Side panel/rear panel	Closed	1 800 mm	600 mm	13.4 kg
8MF1860-2UT34-0BA2	Compartment door	Closed	800 mm	600 mm	7.219 kg
8MF1884-2GS40	supporting structure	For standard empty enclosure	1 800 mm	800 mm	40.6 kg
8MF1884-2GS30	supporting structure	For standard empty enclosure	1 800 mm	800 mm	41 kg
8MF1580-2HH	Cable clamping rail	For strain relief	50 mm	800 mm	2.35 kg
8MF1560-2UT34-0BA2	Compartment door	Closed	500 mm	600 mm	4.828 kg
8MF1560-2HH	Cable clamping rail	For strain relief	50 mm	600 mm	1.75 kg
8MF1520-2HH	Cable clamping rail	For strain relief	50 mm	1 200 mm	3.5 kg
