3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | adjustable response value setting current (Ir) / of the L-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA2010-5HN42-0AA0 | 13.5 W | 4.5 W | 2.709 kg | 40 A | 1 200 A |

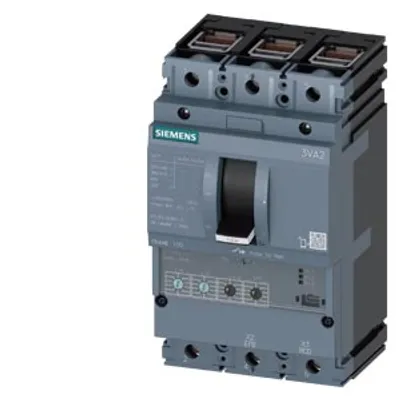

| 3VA2010-5HN36-0AA0 | 13.5 W | 4.5 W | 2.235 kg | 40 A | 1 200 A |
| 3VA2010-5KP46-0AA0 | 13.5 W | 4.5 W | 3.2 kg | 40 A | 150 A |

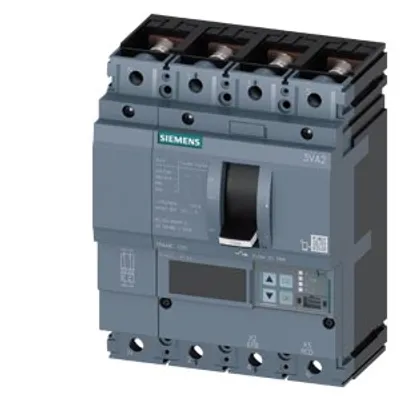

| 3VA2010-5KP42-0AA0 | 13.5 W | 4.5 W | 2.755 kg | 40 A | 150 A |
| 3VA2010-5KP32-0AA0 | 13.5 W | 4.5 W | 2.173 kg | 40 A | 150 A |
| 3VA2010-5JQ46-0AA0 | 13.5 W | 4.5 W | 2.882 kg | 40 A | 150 A |
| 3VA2010-5JQ32-0AA0 | 13.5 W | 4.5 W | 2.103 kg | 40 A | 150 A |
| 3VA2010-5JP42-0AA0 | 13.5 W | 4.5 W | 2.728 kg | 40 A | 150 A |
| 3VA2010-5JP36-0AA0 | 13.5 W | 4.5 W | 2.236 kg | 40 A | 150 A |
| 3VA2010-6KQ32-0AA0 | 13.5 W | 4.5 W | 2.5 kg | 40 A | 150 A |
| 3VA1225-6FF42-0AA0 | 57 W | 19 W | 2.08 kg | 175 A | 1 250 A |
| 3VA1463-5EF42-0AA0 | 192.9 W | 64.3 W | 6.414 kg | 441 A | 2 520 A |
| 3VA1463-6GF42-0AA0 | 192.9 W | 64.3 W | 6.395 kg | 441 A | 2 520 A |

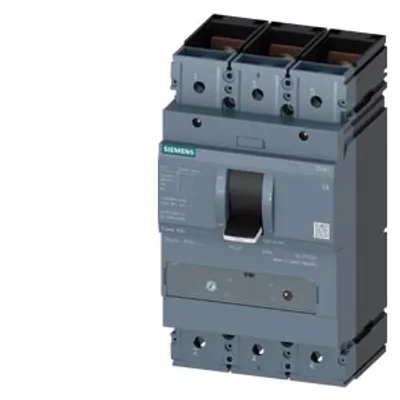

| 3VA1463-6EF32-0AA0 | 192.9 W | 64.3 W | 4.917 kg | 441 A | 2 520 A |

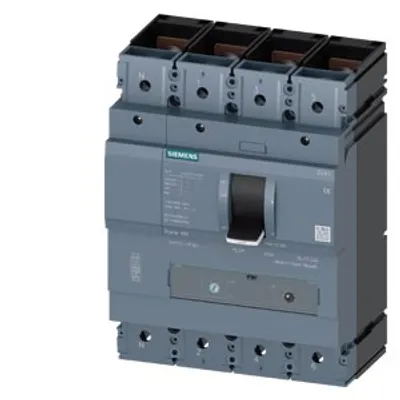

| 3VA1332-5GF42-0AA0 | 80.1 W | 26.7 W | 6.32 kg | 224 A | 1 600 A |
| 3VA1332-5EF32-0AA0 | 80.1 W | 26.7 W | 4.816 kg | 224 A | 1 600 A |
| 3VA1340-7EF42-0AA0 | 92.1 W | 30.7 W | 6.812 kg | 280 A | 2 000 A |
| 3VA1450-5EF32-0AA0 | 122.7 W | 40.9 W | 4.976 kg | 350 A | 2 500 A |
| 3VA1450-4FF42-0AA0 | 122.7 W | 40.9 W | 6.812 kg | 350 A | 2 500 A |
| 3VA1220-4FF42-0AA0 | 42 W | 14 W | 2.12 kg | 140 A | 1 000 A |
| 3VA1180-6EF42-0AA0 | 19.2 W | 6.4 W | 1.157 kg | 56 A | 400 A |
| 3VA1196-6GD42-0AA0 | 10.6 W | 3.53 W | 1.2 kg | 16 A | 320 A |

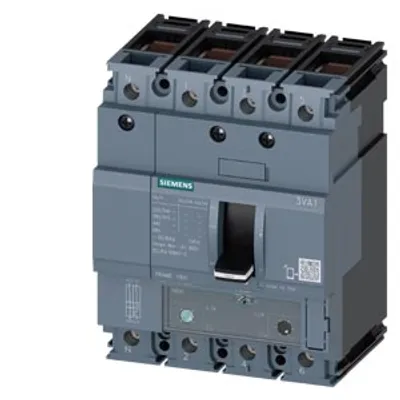

| 3VA1196-6EF46-0AA0 | 10.6 W | 3.53 W | 1.299 kg | 11 A | 160 A |
| 3VA1196-6EE46-0AA0 | 10.6 W | 3.53 W | 1.297 kg | 11 A | 320 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| design of the product | Line protection |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product feature / for L-tripping / can be switched on/off | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
