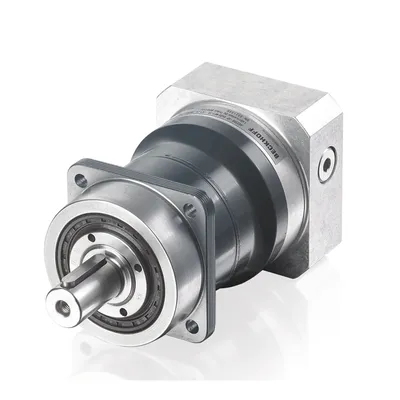

AG2300-+SP240S Parts
Compare AG2300-+SP240S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP240S-MF2-50 | standard MF | 3457 Nm | 5160 Nm | 50 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-70 | standard MF | 3784 Nm | 4730 Nm | 70 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF1-8 | standard MF | 2611 Nm | 4000 Nm | 8 | ≤ 3/1 arcmin |
| AG2300-+SP240S-MF2-32 | standard MF | 3754 Nm | 5400 Nm | 32 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MF2-64 | standard MF | 2914 Nm | 3642 Nm | 64 | ≤ 5/3 arcmin |
| AG2300-+SP240S-MC1-8 | high-speed MC | 1440 Nm | 1800 Nm | 8 | ≤ 4/2 arcmin |
| AG2300-+SP240S-MC2-32 | high-speed MC | 2320 Nm | 2900 Nm | 32 | ≤ 5/4 arcmin |
| AG2300-+SP240S-MC2-64 | high-speed MC | 1440 Nm | 1800 Nm | 64 | ≤ 5/4 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
