AX5000 | Digital compact servo drives Parts
Compare AX5000 | Digital compact servo drives
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated output current (channel) | Peak output current (channel) | Height without connectors | Depth without connectors | Width |
|---|---|---|---|---|---|
| AX5801 | — | — | — | — | — |

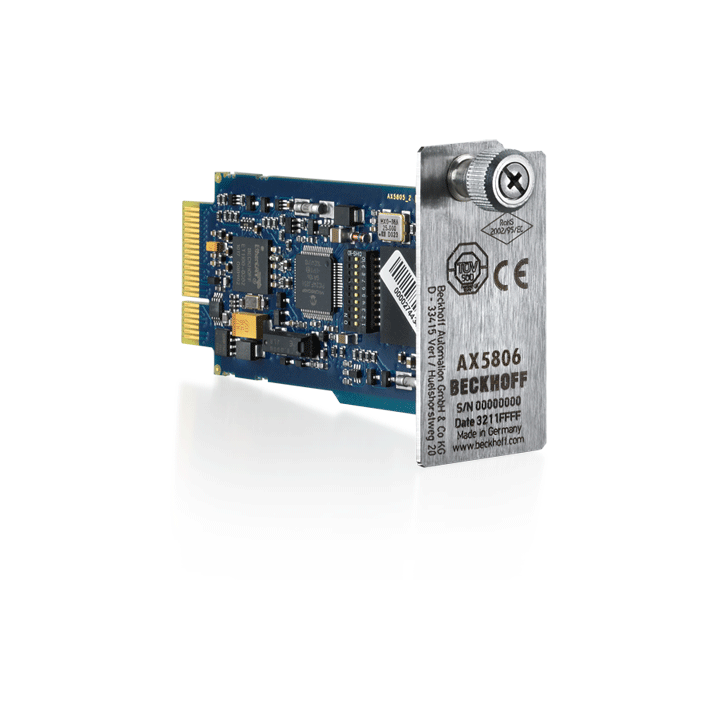

| AX5806 | — | — | — | — | — |
| AX5805 | — | — | — | — | — |

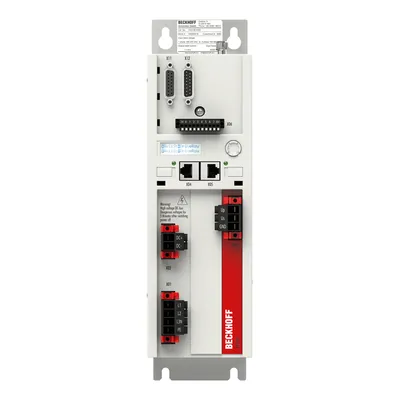

| AX5101 | 1.5 A | 4.5 A | 317.7 mm | 232 mm | 92 mm |
| AX5103 | 3 A | 7.5 A | 317.7 mm | 232 mm | 92 mm |
| AX5106 | 6 A | 13 A | 317.7 mm | 232 mm | 92 mm |
| AX5112 | 12 A | 26 A | 317.7 mm | 232 mm | 92 mm |
| AX5118 | 18 A | 36 A | 274 mm | 232 mm | 185 mm |

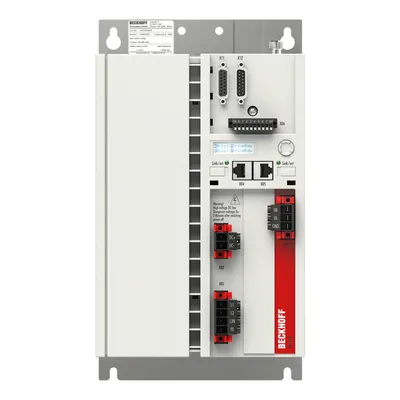

| AX5125 | 25 A | 50 A | 274 mm | 232 mm | 185 mm |
| AX5140 | 40 A | 80 A | 274 mm | 232 mm | 185 mm |
| AX5160 | 60 A | 120 A | 345 mm | 259 mm | 190 mm |

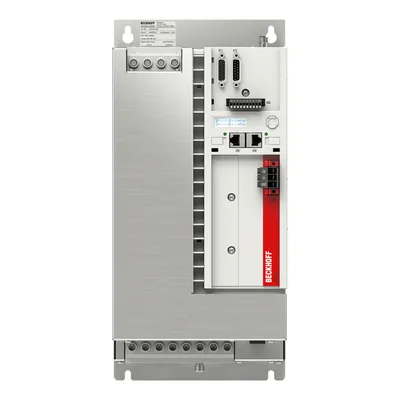

| AX5172 | 72 A | 144 A | 345 mm | 259 mm | 190 mm |
| AX5190 | 90 A | 180 A | 540 mm | 253 mm | 280 mm |

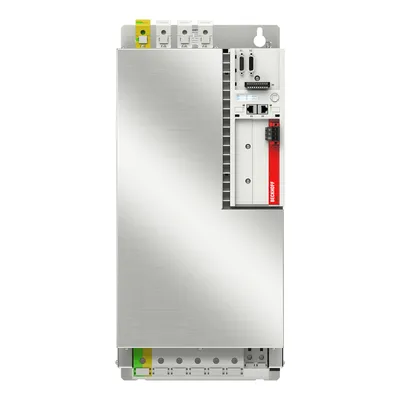

| AX5191 | 110 A | 180 A | 540 mm | 253 mm | 280 mm |

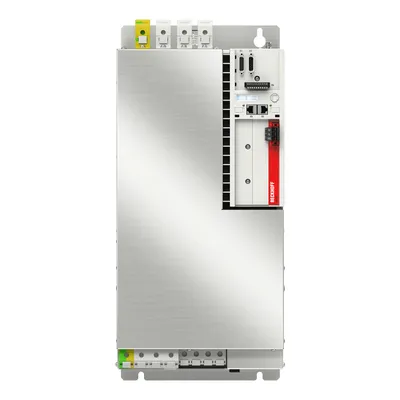

| AX5192 | 143 A | 215 A | 540 mm | 332 mm | 280 mm |
| AX5193 | 170 A | 221 A | 540 mm | 332 mm | 280 mm |
| AX5201 | 1.5 A | 5 A | 274 mm | 232 mm | 92 mm |
| AX5203 | 3 A | 10 A | 274 mm | 232 mm | 92 mm |
| AX5206 | 6 A | 13 A | 274 mm | 232 mm | 92 mm |

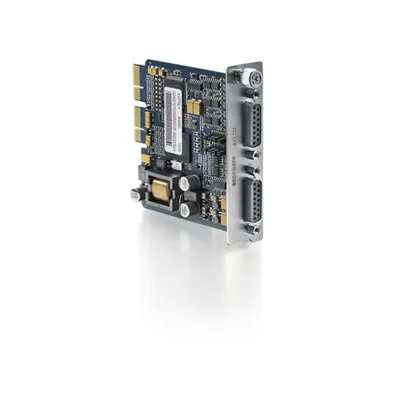

| AX5722 | — | — | — | — | — |
| AX5701 | — | — | — | — | — |

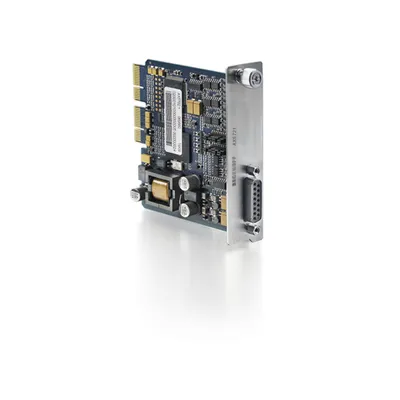

| AX5721 | — | — | — | — | — |

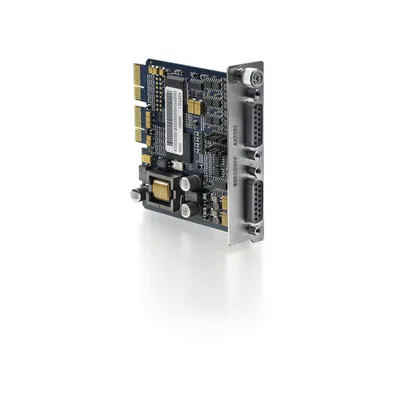

| AX5702 | — | — | — | — | — |
Common to all listed parts
| Approvals/markings | CE, cULus |
