Motor connectors Parts
Compare Motor connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installation size | Connector type | Number of positions (face) | Wire termination | Max. wire cross-section |
|---|---|---|---|---|---|

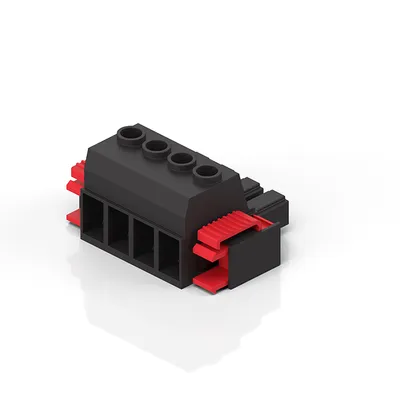

| ZS4500-2041 | Pitch dimension 10.16 mm | plug | 4-pin | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

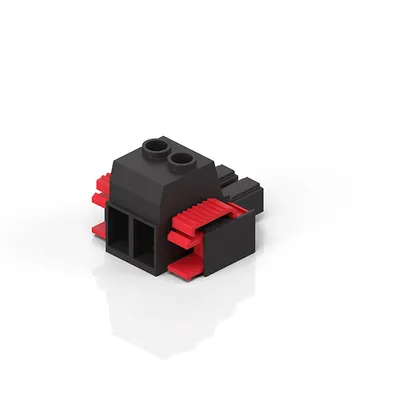

| ZS4500-2042 | Pitch dimension 10.16 mm | plug | 2-pin | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

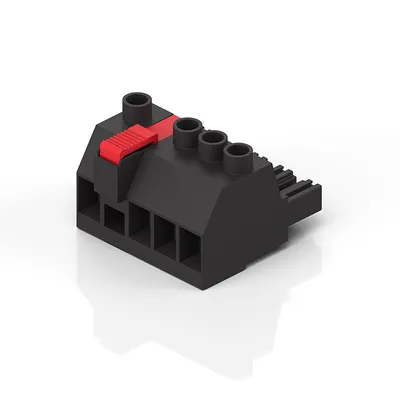

| ZS4500-2047 | Pitch dimension 10.16 mm | plug | 4-pin | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

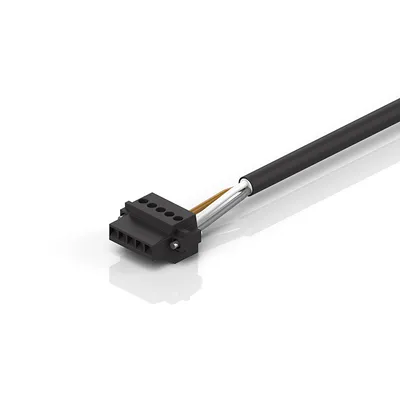

| ZS4500-2064 | Pitch dimension 5.08 mm | plug | 5-pin | Clamping yoke connection | AWG26…AWG12 (0.13 mm²…4 mm²) |

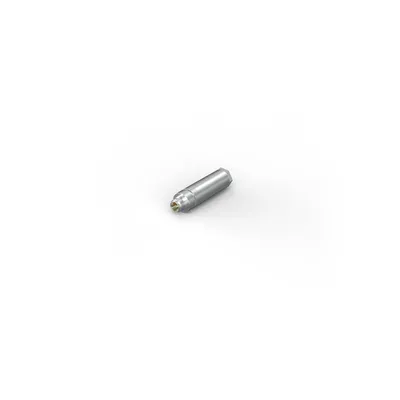

| ZS2000-1314 | M8 | plug | 5-pin | solder connection | AWG28 ... AWG22 (0.08 mm² ... 0.34 mm²) |

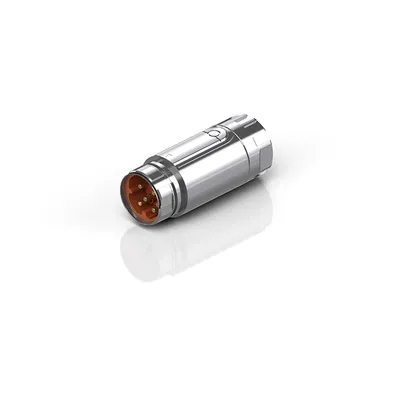

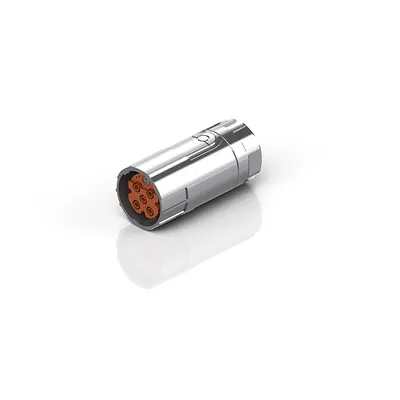

| ZS4000-2115 | M40 | socket | Power: 4+PE, Signal: 4, Data: 2 | crimp connection | — |

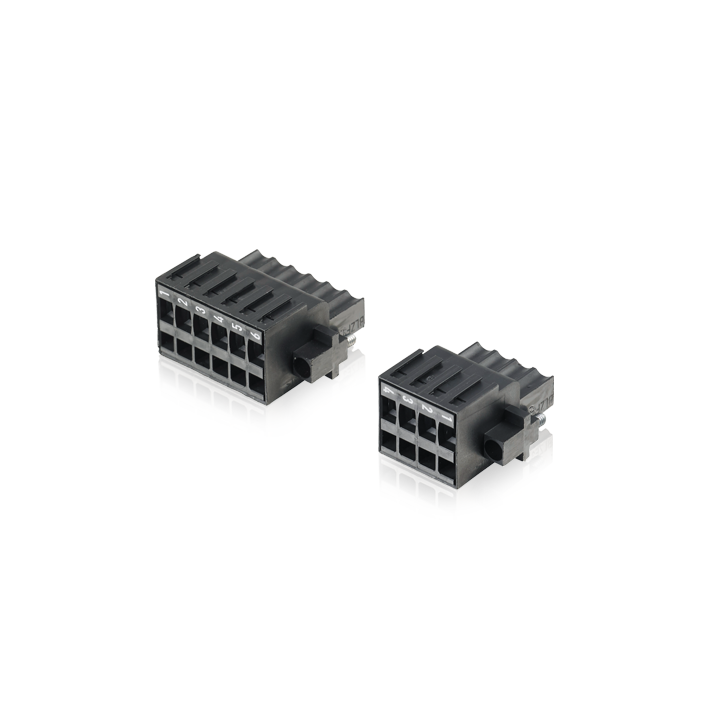

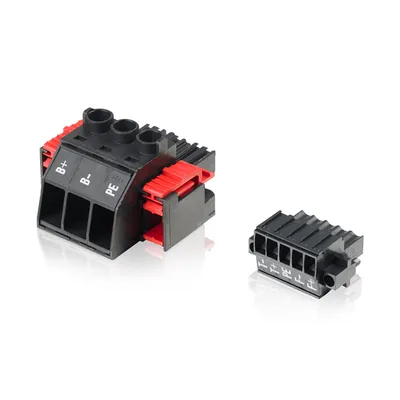

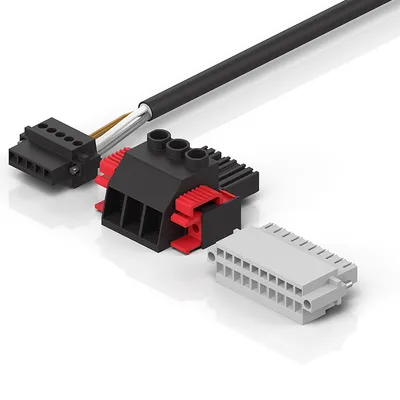

| ZS4500-2020 | — | connector set | — | — | AWG26…AWG14 (0.2 mm²…1.5 mm²) |

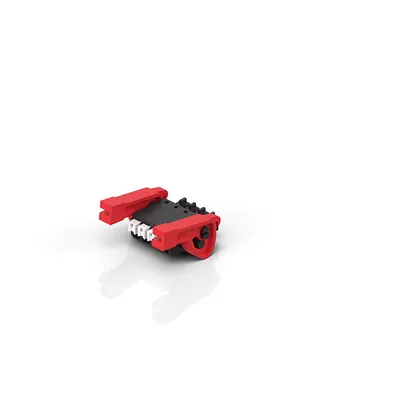

| ZS4800-2015 | Pitch dimension 3.81 mm | plug | 4-pin | Push-in | AWG26…AWG16 (0.14 mm²…1.5 mm²) |
| ZS4000-2109 | M40 | plug | Power: 4+PE, Signal: 4, Data: 2 | crimp connection | — |
| ZS4800-2003 | — | plug | 10-pin | Clamping yoke connection | AWG24…AWG8 |
| ZS4800-2002 | Pitch dimension 10.16 mm | plug | — | Clamping yoke connection | AWG22…AWG4 (0.2 mm²…16 mm²) |

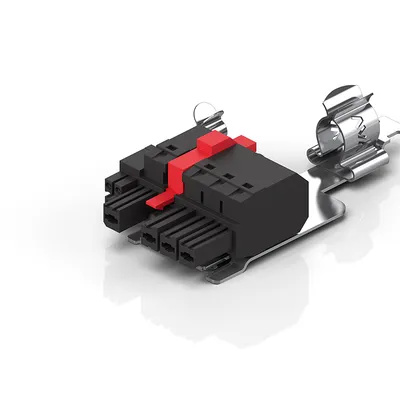

| ZS48B0-2013 | Pitch dimension 7.62 mm | plug | 4-pin | Push-in | AWG24…AWG8 (0.5 mm²…10 mm²) |
