Home / I/O / Accessories / Adapters, PCB connectors and connectors for field assembly / Hybrid connectors

Hybrid connectors Parts

Beckhoff

ZS7200-A010

Socket, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7200-A006

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7200-A001

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7200-0006

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7200-A002

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

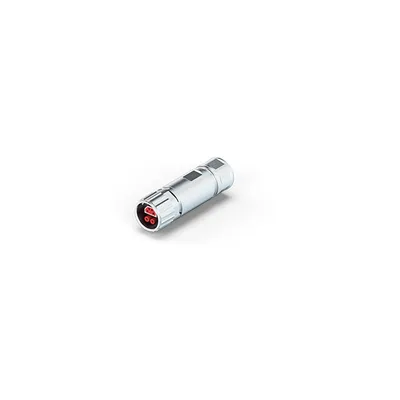

ZS7100-0002

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

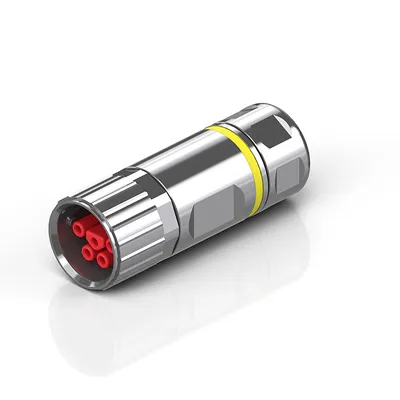

ZS7300-A002

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7200-A005

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

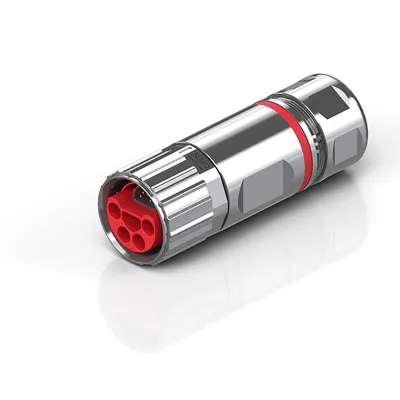

ZS7300-0001

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7200-0002

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7300-0002

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7200-0004

Plug, field assembly, EtherCAT P, IP65/67, geschirmt

Beckhoff

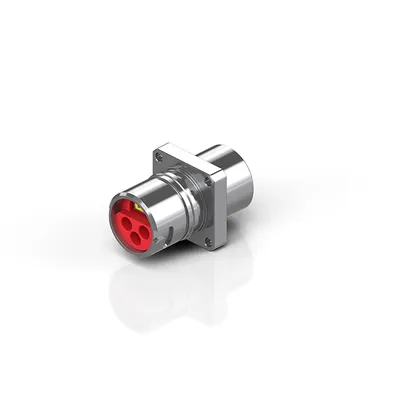

ZS7200-A032

EtherCAT connector, B17, field wireable, straight, male+female, 2+PE+4-pin, EtherCAT-coded, IP65/67

Beckhoff

ZS7200-0007

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7200-0005

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7400-0001

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7200-0008

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7400-A002

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7100-0001

Plug, field assembly, EtherCAT P, IP65/67, shielded

Beckhoff

ZS7200-A012

Socket, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

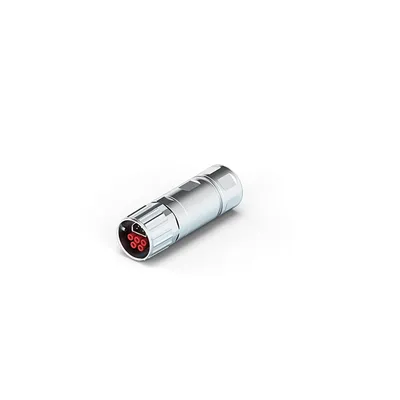

ZS7200-A008

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7100-A002

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7400-A001

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

Beckhoff

ZS7400-0002

Plug, field assembly, EtherCAT P, IP65/67, shielded

Compare Hybrid connectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of positions (face)	Max. wire cross-section (power)	Max. cable outer diameter	A1	A2
ZS7200-A010	pins 4+PE+4	AWG16/1.5 mm²	10.0…11.5 mm	—	—
ZS7200-A006	pins 4+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7200-A001	pins 2+PE+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7200-0006	pins 4+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7200-A002	pins 2+PE+4	AWG16/1.5 mm²	9.5…10.5 mm	ca. 70.0 mm	23.8 mm
ZS7100-0002	pins 2+4	AWG18/0.75 mm²	8.5…9.5 mm	60.00 mm	Ø 18.80 mm
ZS7300-A002	pins 4+PE+4	AWG12/4.0 mm²	15.0…16.0 mm	approx. 80.0 mm	29.0 mm
ZS7200-A005	pins 4+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7300-0001	pins 4+PE+4	AWG12/4.0 mm²	13.0…15.0 mm, 15.0…16.0 mm	approx. 80.0 mm	23.8 mm
ZS7200-0002	pins 2+PE+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7300-0002	pins 4+PE+4	AWG12/4.0 mm²	13.0…15.0 mm, 15.0…16.0 mm	approx. 80.0 mm	29.0 mm
ZS7200-0004	pins 2+PE+4	AWG14/2.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7200-A032	pins 2+PE+4	AWG14/2.5 mm²	—	38.00 mm	25.00 mm
ZS7200-0007	pins 4+PE+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7200-0005	pins 4+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7400-0001	pins 5+4	AWG5/16.0 mm²	23.0...26.0 mm	115.0 mm	Ø 47.0 mm
ZS7200-0008	pins 4+PE+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7400-A002	pins 5+4	AWG5/16.0 mm²	23.0...26.0 mm	115.0 mm	Ø 47.0 mm
ZS7100-0001	pins 2+4	AWG18/0.75 mm²	8.5…9.5 mm	60.00 mm	18.80 mm
ZS7200-A012	pins 4+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	Ø 23.0 mm
ZS7200-A008	pins 4+PE+4	AWG16/1.5 mm²	10.0…11.5 mm	approx. 70.0 mm	23.8 mm
ZS7100-A002	pins 2+4	AWG18/0.75 mm²	8.5…9.5 mm	60.00 mm	Ø 18.80 mm
ZS7400-A001	pins 5+4	AWG5/16.0 mm²	23.0...26.0 mm	115.0 mm	Ø 47.0 mm
ZS7400-0002	pins 5+4	AWG5/16.0 mm²	23.0...26.0 mm	115.00 mm	Ø 47.0 mm

Common to all listed parts

Shielding	yes
Wire termination	crimp connection
Max. wire cross-section (Ethernet)	AWG22/0.34 mm²
