Motor cables Parts
Beckhoff

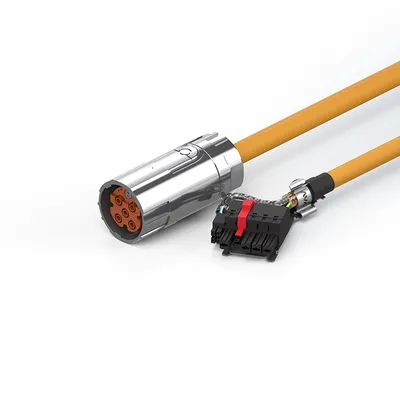

ZK4800-8025-xxxxMotor connection cable 4 mm² with M40 speedtec® plug system, drag-chain suitable
Beckhoff
ZK4800-8525-xxxxMotor connection cable 4 mm² with M40 speedtec® plug system, drag-chain suitable
Beckhoff

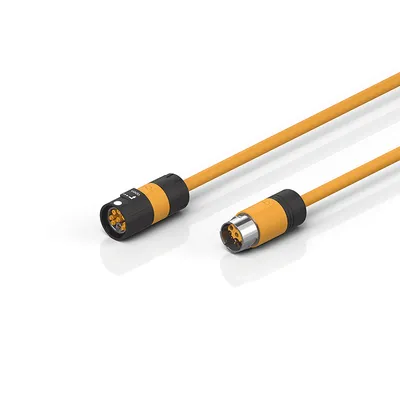

ZK4701-0401-2xxxMotor extension cable 0.75 mm² with itec® plug for motors with OCT, fixed installation
Compare Motor cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installation size | Cross-section (power) | Outer cable diameter | B1 | B2 |
|---|---|---|---|---|---|
| ZK4800-8024-xxxx | Pitch dimension 7.62 mm | 2.50 mm² (approx. AWG14) | 13.9 mm ± 0.4 mm (0.5472" ± 0.0157") | 60.00 mm | 47.00 mm |

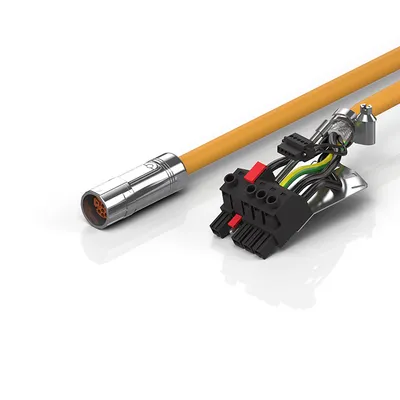

| ZK4800-8524-xxxx | Pitch dimension 3.50 mm | 2.50 mm² (approx. AWG14) | 13.9 mm ± 0.4 mm (0.5472" ± 0.0157") | 137.00 mm | 52.00 mm |
| ZK4800-8025-xxxx | Pitch dimension 7.62 mm | 4.00 mm² (approx. AWG12) | 15.9 mm ± 0.4 mm (0.6259" ± 0.0157") | 60.00 mm | 47.00 mm |

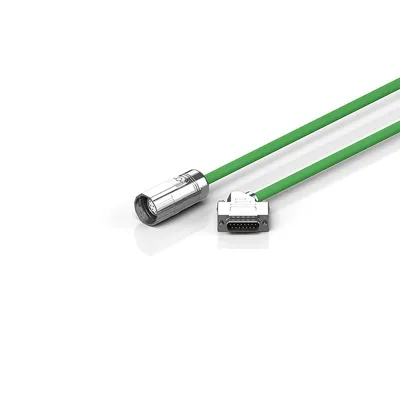

| ZK4810-8020-xxxx | D-sub | — | 9.0 mm ± 0.4 mm (0.3543" ± 0.0157") | 40.00 mm | 41.00 mm |

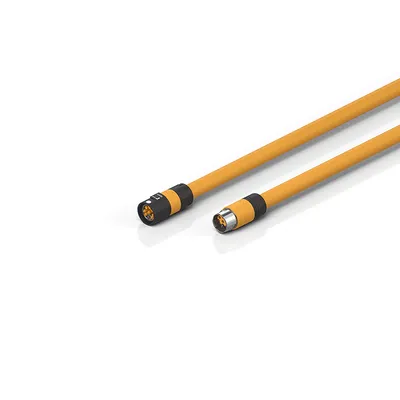

| ZK4501-8022-xxxx | itec® (Series 915) | 1.00 mm² (approx. AWG18) | 11.6 mm ± 0.4 mm (0.4567" ± 0.0157") | 44.00 mm | 19.00 mm |
| ZK4800-8525-xxxx | Pitch dimension 3.50 mm | — | — | 137.00 mm | 52.00 mm |

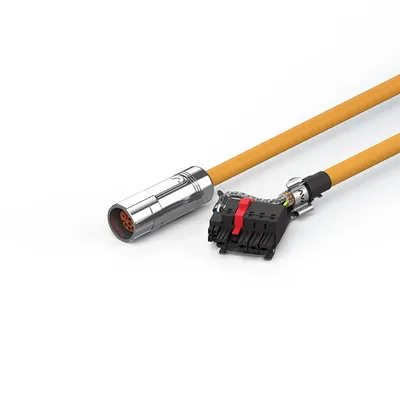

| ZK4800-8063-xxxx | Pitch dimension 7.62 mm | 1.50 mm² (approx. AWG16) | 13.6 mm ± 0.3 mm (0.5354" ± 0.0118") | 60.00 mm | 47.00 mm |
| ZK4800-8064-xxxx | Pitch dimension 7.62 mm | 2.50 mm² (approx. AWG14) | 15.2 mm ± 0.3 mm (0.5984" ± 0.0118") | 60.00 mm | 47.00 mm |
| ZK4800-8527-xxxx | Pitch dimension 3.50 mm | 10 mm² (approx. AWG8) | 20.9 mm ± 0.5 mm (0.8228" ± 0.0197") | 137.00 mm | 52.00 mm |
| ZK4701-0401-2xxx | itec® (Series 915) | 0.75 mm² (approx. AWG18) | 7.0 mm ± 0.3 mm (0.2756" ± 0.0118") | 44.00 mm | 19.00 mm |

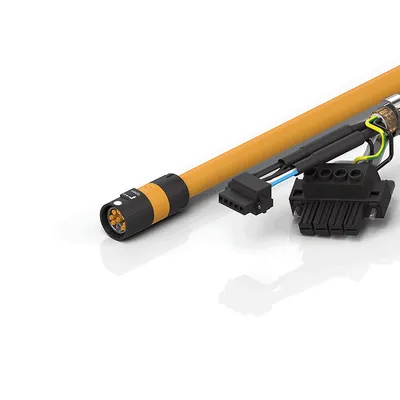

| ZK4500-8062-xxxx | Pitch dimension 3.50 mm | 1.00 mm² (approx. AWG18) | 12.0 mm ± 0.2 mm (0.472" ± 0.0079") | 45.00 mm | 45.00 mm |
| ZK4501-8062-xxxx | itec® (Series 915) | 1.00 mm² (approx. AWG18) | 12.0 mm ± 0.2 mm (0.472" ± 0.0079") | 44.00 mm | 19.00 mm |

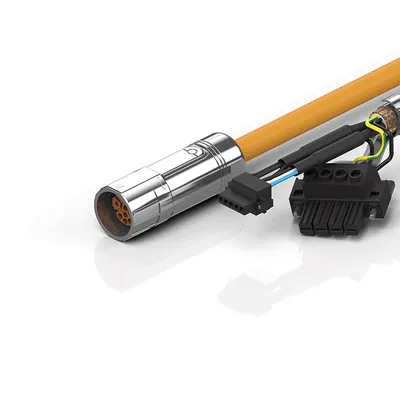

| ZK4500-8003-xxxx | Pitch dimension 3.50 mm | 1.50 mm² (approx. AWG16) | 12.2 mm ± 0,4 mm (0,4803" ± 0,0157") | 45.00 mm | 45.00 mm |

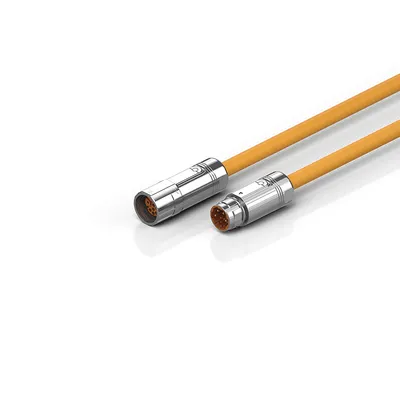

| ZK4501-8003-xxxx | M23 | 1.50 mm² (approx. AWG16) | 12.2 mm ± 0,4 mm (0,4803" ± 0,0157") | 70.00 mm | 20.00 mm |
| ZK4500-8023-xxxx | Pitch dimension 3.50 mm | 1.50 mm² (approx. AWG16) | 12.7 mm ± 0.4 mm (0.5" ± 0.0157") | 45.00 mm | 45.00 mm |
| ZK4501-8023-xxxx | M23 | 1.50 mm² (approx. AWG16) | 12.7 mm ± 0.4 mm (0.5" ± 0.0157") | 70.00 mm | 20.00 mm |
| ZK4500-8063-xxxx | Pitch dimension 3.50 mm | 1.50 mm² (approx. AWG16) | 13.6 mm ± 0.3 mm (0.5354" ± 0.0118") | 45.00 mm | 45.00 mm |

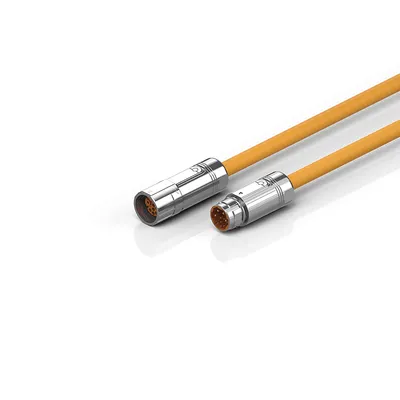

| ZK4501-8063-xxxx | M23 | 1.50 mm² (approx. AWG16) | 13.6 mm ± 0.3 mm (0.5354" ± 0.0118") | 70.00 mm | 20.00 mm |

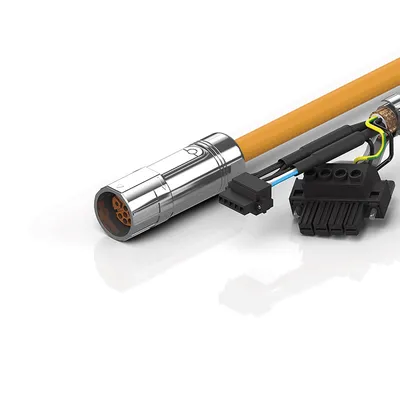

| ZK4500-8004-xxxx | Pitch dimension 3.50 mm | 2.50 mm² (approx. AWG14) | 13.8 mm ± 0,4 mm (0,5433" ± 0,0157") | 45.00 mm | 45.00 mm |
| ZK4501-8004-xxxx | M23 | 2.50 mm² (approx. AWG14) | 13.8 mm ± 0,4 mm (0,5433" ± 0,0157") | 70.00 mm | 20.00 mm |

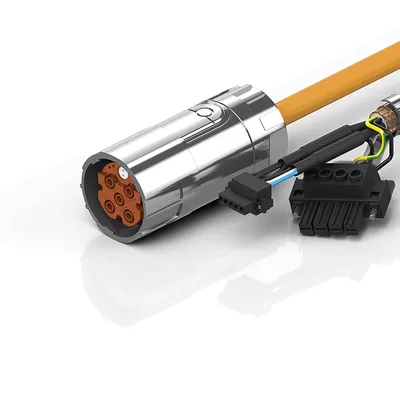

| ZK4500-8025-xxxx | Pitch dimension 3.50 mm | 4.00 mm² (approx. AWG12) | 15.9 mm ± 0.4 mm (0.6259" ± 0.0157") | 45.00 mm | 45.00 mm |

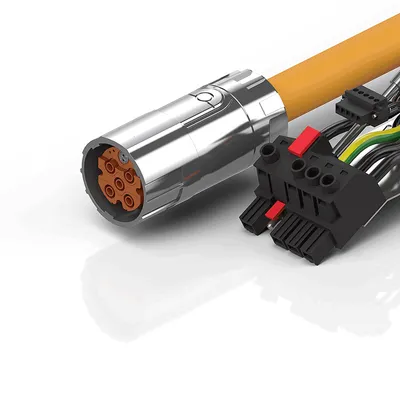

| ZK4500-8027-xxxx | Pitch dimension 3.50 mm | 10 mm² (approx. AWG8) | 20.9 mm ± 0.5 mm (0.8228" ± 0.0197") | 137.00 mm | 52.00 mm |

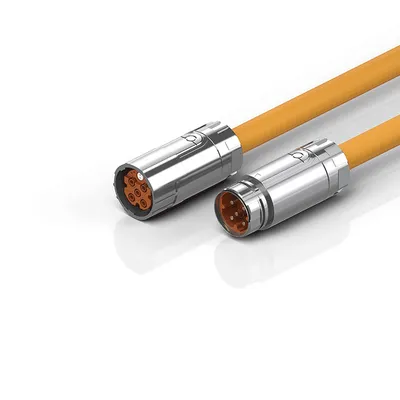

| ZK4501-8027-xxxx | M40 | 10 mm² (approx. AWG8) | 20.9 mm ± 0.5 mm (0.8228" ± 0.0197") | 110.00 mm | 45.00 mm |

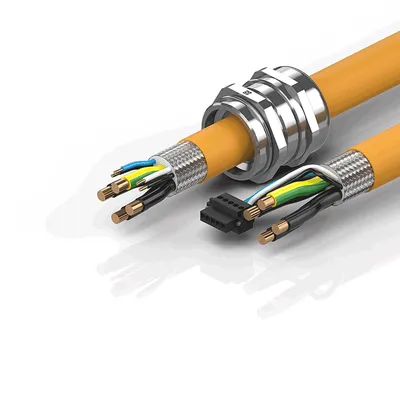

| ZK4506-8027-xxxx | Pitch dimension 5.08 mm | 10 mm² (approx. AWG8) | 20.9 mm ± 0.5 mm (0.8228" ± 0.0197") | — | — |
