Home / I/O / Measuring transformers / Übersicht Stromwandler

Übersicht Stromwandler Parts

Beckhoff

SCT1111-0032

Mini ring-type CT, 32 A AC, accuracy class 1

Beckhoff

SCT1111-0035

Mini ring-type CT, 35 A AC, accuracy class 1

Beckhoff

SCT1111-0040

Mini ring-type CT, 40 A AC, accuracy class 1

Beckhoff

SCT1111-0050

Mini ring-type CT, 50 A AC, accuracy class 1

Beckhoff

SCT1111-0060

Mini ring-type CT, 60 A AC, accuracy class 1

Beckhoff

SCT1111-0064

Mini ring-type CT, 64 A AC, accuracy class 1

Beckhoff

SCT0121-0002

Coil CT, 2.5 A AC, accuracy class 0.5

Beckhoff

SCT0121-0025

Coil CT, 25 A AC, accuracy class 0.5

Beckhoff

SCT0121-0015

Coil CT, 15 A AC, accuracy class 0.5

Beckhoff

SCT0111-0002

Coil CT, 2.5 A AC, accuracy class 1

Beckhoff

SCT0111-0010

Coil CT, 10 A AC, accuracy class 1

Beckhoff

SCT0111-0005

Coil CT, 5 A AC, accuracy class 1

Beckhoff

SCT0111-0020

Coil CT, 20 A AC, accuracy class 1

Beckhoff

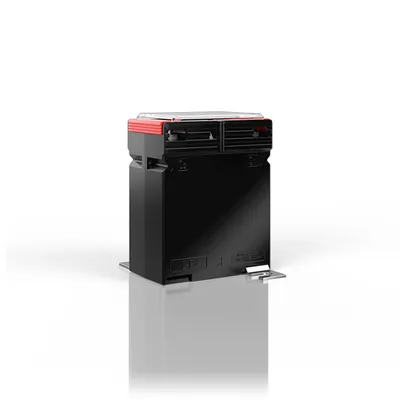

SCT0121-0010

Coil CT, 10 A AC, accuracy class 0.5

Beckhoff

SCT0121-0005

Coil CT, 5 A AC, accuracy class 0.5

Beckhoff

SCT0111-0025

Coil CT, 25 A AC, accuracy class 1

Beckhoff

SCT0111-0001

Coil CT, 1 A AC, accuracy class 1

Beckhoff

SCT0121-0001

Coil CT, 1 A AC, accuracy class 0.5

Beckhoff

SCT0111-0030

Coil CT, 30 A AC, accuracy class 1

Beckhoff

SCT0121-0050

Coil CT, 30 A AC, accuracy class 0.5

Beckhoff

SCT0111-0015

Coil CT, 15 A AC, accuracy class 1

Beckhoff

SCT0121-0020

Coil CT, 20 A AC, accuracy class 0.5

Beckhoff

SCT2311-1000

Ring-type CT, 1000 A AC, accuracy class 1, size 3

Beckhoff

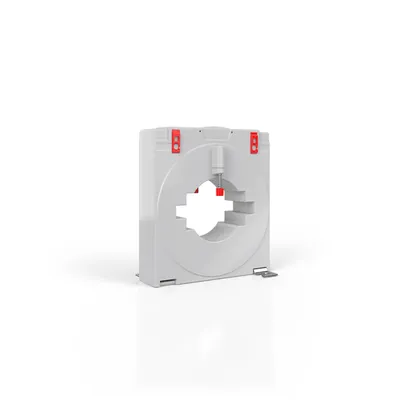

SCT2525-2000

Ring-type CT, 2000 A AC, accuracy class 0.5, size 5

Compare Übersicht Stromwandler

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Accuracy class	Primary current	Rated power	Max. diameter round conductor	Dimensions (W x H x D)
SCT1111-0032	1	32 A AC	0.2 VA	7.6 mm	27.5 mm x 46.5 mm x 19 mm
SCT1111-0035	1	35 A AC	0.2 VA	7.6 mm	27.5 mm x 46.5 mm x 19 mm
SCT1111-0040	1	40 A AC	0.3 VA	7.6 mm	27.5 mm x 46.5 mm x 19 mm
SCT1111-0050	1	50 A AC	0.4 VA	7.6 mm	27.5 mm x 46.5 mm x 19 mm
SCT1111-0060	1	60 A AC	0.4 VA	7.6 mm	27.5 mm x 46.5 mm x 19 mm
SCT1111-0064	1	64 A AC	0.5 VA	7.6 mm	27.5 mm x 46.5 mm x 19 mm
SCT0121-0002	0.5	2.5 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0025	0.5	25 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0015	0.5	15 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0002	1	2.5 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0010	1	10 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0005	1	5 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0020	1	20 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0010	0.5	10 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0005	0.5	5 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0025	1	25 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0001	1	1 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0001	0.5	1 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0030	1	30 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0050	0.5	30 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0111-0015	1	15 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT0121-0020	0.5	20 A AC	2.5 VA	primary conductor for connection	70 mm x 88.5 mm x 45 mm
SCT2311-1000	1	1000 A AC	10 VA	43.7 mm	85 mm x 105 mm x 52 mm
SCT2525-2000	0.5	2000 A AC	15 VA	54.7 mm	120 mm x 135 mm x 52 mm
