KL6xxx | Communication Parts





Bus Terminal, communication interface + 4-port digital output, 24 V DC, 0.5 A, TwinSAFE Logic














Compare KL6xxx | Communication
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Technology | Current consumption power contacts | Electrical isolation | Weight | Cable length |
|---|---|---|---|---|---|
| KL6821 | DALI-2 | – | 500 V (K-bus/DALI-bus) | approx. 80 g | — |

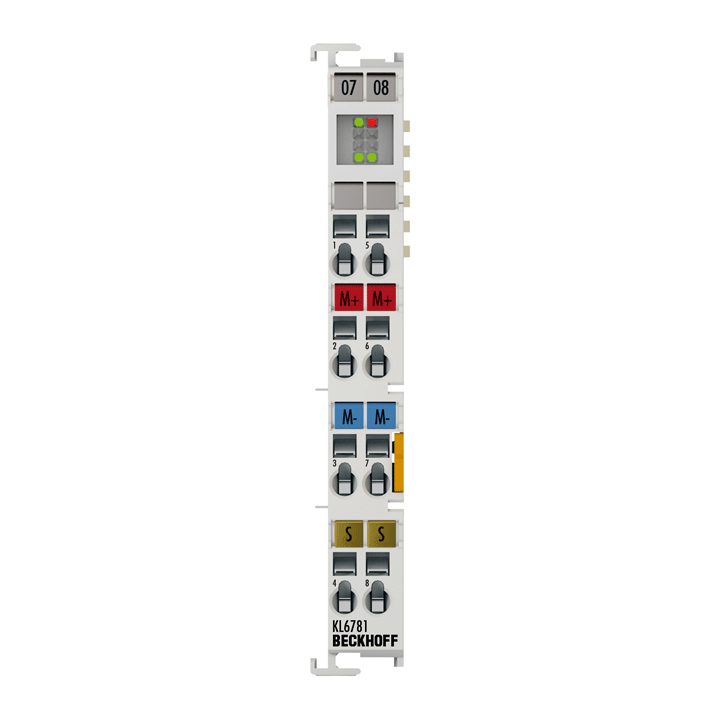

| KL6781 | M-Bus | max. 250 mA | 500 V (K-bus/M-Bus) | approx. 60 g | max. 300 m |
| KL6581 | EnOcean® | typ. 20 mA + load | — | approx. 85 g | max. 500 m |
| KL6224 | IO-Link | no data | 500 V (K-bus/signal voltage) | approx. 60 g | max. 20 m |
| KL6904 | — | load-dependent | — | approx. 100 g | — |
| KL6811 | DALI/DSI | typ. 30 mA + load | 500 V (K-bus/DALI-bus) | approx. 80 g | — |

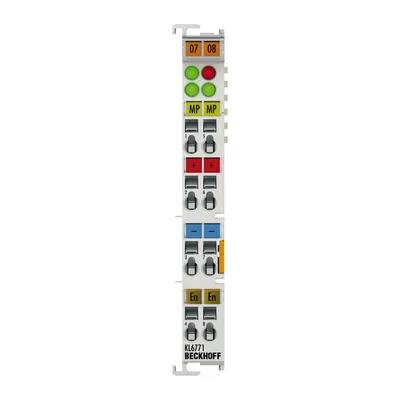

| KL6771 | MP-Bus | typ. 10 mA + load | 500 V (K-bus/MP-Bus) | approx. 85 g | — |
| KL6301 | KNX/EIB | – | 500 V (K-bus/EIB) | approx. 85 g | – |
| KL6051 | 2 x RS422 | – (no power contacts) | 500 V (K-bus/signal voltage) | approx. 60 g | approx. 1000 m twisted pair |
| KL6011 | TTY | – (no power contacts) | 500 V (K-bus/signal voltage) | approx. 60 g | max. 1000 m twisted pair |

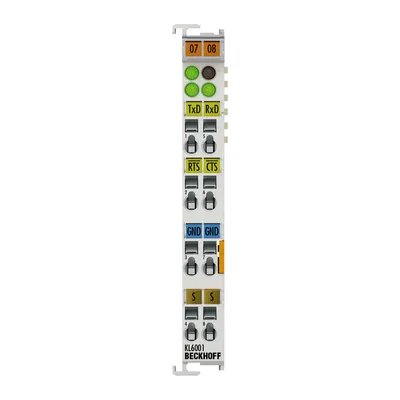

| KL6001 | RS232 | – (no power contacts) | 500 V (K-bus/signal voltage) | approx. 80 g | max. 15 m |
| KL6021 | RS422/RS485 | – (no power contacts) | 500 V (K-bus/signal voltage) | approx. 60 g | approx. 1000 m twisted pair |

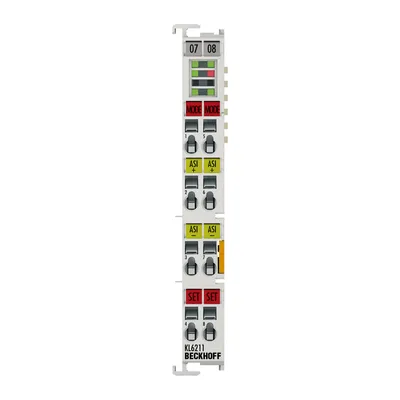

| KL6211 | AS-Interface | typ. 60 mA + load | 500 V (AS-Interface/K-bus) | approx. 55 g | — |
| KL6201 | AS-Interface master terminal (M3) | – (no power contacts) | 500 V (AS-Interface/K-bus) | approx. 55 g | — |
| KL6041 | RS422/RS485 | – (no power contacts) | 500 V (K-bus/signal voltage) | approx. 60 g | approx. 1000 m twisted pair |
| KL6031 | RS232 | – (no power contacts) | 500 V (K-bus/signal voltage) | approx. 80 g | max. 15 m |
| KL6841 | SMI | — | 500 V (K-bus/SMI-bus) | approx. 80 g | max. 200 m |
| KL6831 | SMI | — | 500 V (K-bus/SMI-bus) | approx. 80 g | max. 200 m |
| KL6583 | EnOcean® | typ. 20 mA (24 V DC) | — | approx. 90 g | max. 500 m |
