KL4xxx | Analog output Parts

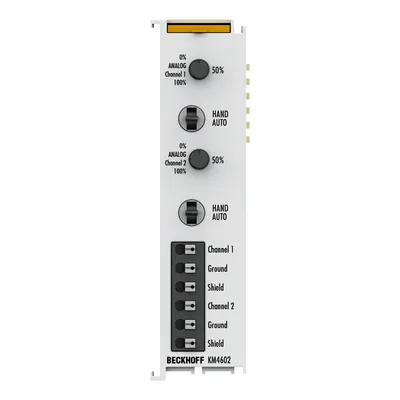

Beckhoff KM4602 – Bus Terminal module, 4-channel analog output, voltage, 0…10 V, 12 bit, single-ended, manual/autom. operation

Beckhoff

Bus Terminal module, 4-channel analog output, voltage, 0…10 V, 12 bit, single-ended, manual/autom. operation

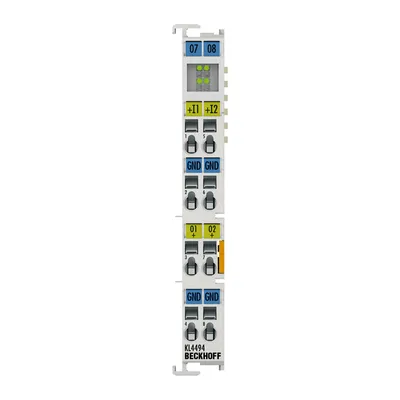

Beckhoff KL4494 – Bus Terminal, 2-channel analog input + 2-channel analog output, voltage, ±10 V, 12 bit, single-ended

Beckhoff

Bus Terminal, 2-channel analog input + 2-channel analog output, voltage, ±10 V, 12 bit, single-ended

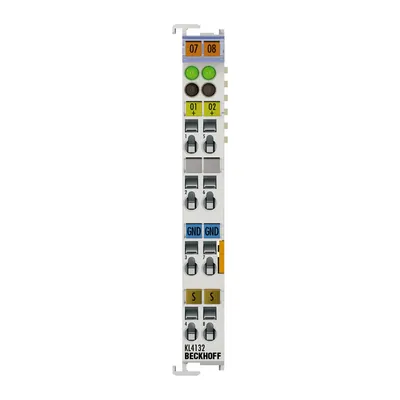

Beckhoff KL4132 – Bus Terminal, 2-channel analog output, voltage, ±10 V, 16 bit, differential

Beckhoff

Bus Terminal, 2-channel analog output, voltage, ±10 V, 16 bit, differential

Beckhoff KL4112 – Bus Terminal, 2-channel analog output, current, 0…20 mA, 16 bit, single-ended

Beckhoff

Bus Terminal, 2-channel analog output, current, 0…20 mA, 16 bit, single-ended

Beckhoff KL4034 – Bus Terminal, 4-channel analog output, voltage, ±10 V, 12 bit, differential

Beckhoff

Bus Terminal, 4-channel analog output, voltage, ±10 V, 12 bit, differential

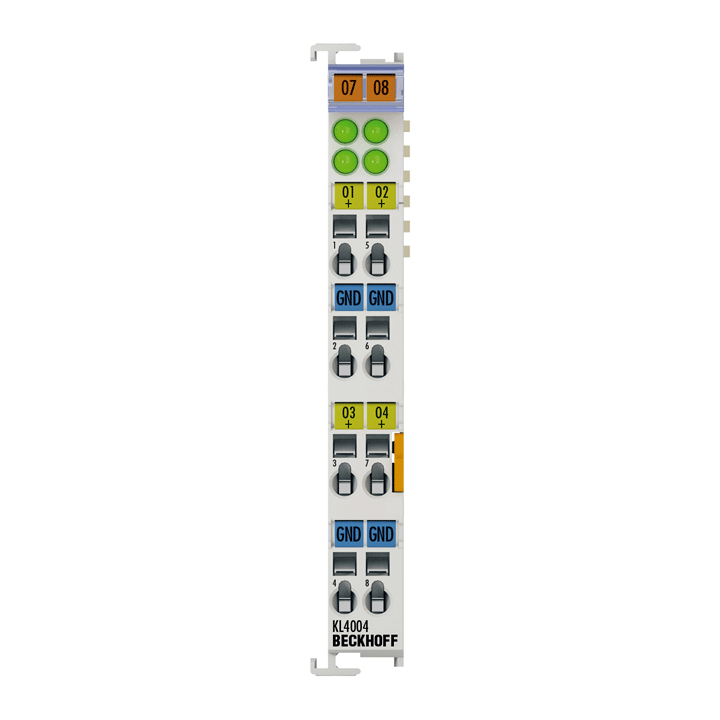

Beckhoff KL4004 – Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit, differential

Beckhoff

Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit, differential

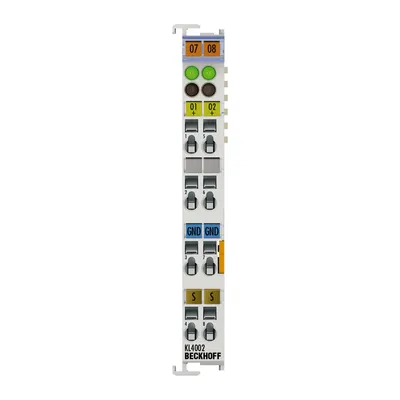

Beckhoff KL4002 – Bus Terminal, 2-channel analog output, voltage, 0…10 V, 12 bit, differential

Beckhoff

Bus Terminal, 2-channel analog output, voltage, 0…10 V, 12 bit, differential

Beckhoff KL4001 – Bus Terminal, 1-channel analog output, voltage, 0…10 V, 12 bit, differential

Beckhoff

Bus Terminal, 1-channel analog output, voltage, 0…10 V, 12 bit, differential

Beckhoff KL4012 – Bus Terminal, 2-channel analog output, current, 0…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 2-channel analog output, current, 0…20 mA, 12 bit, single-ended

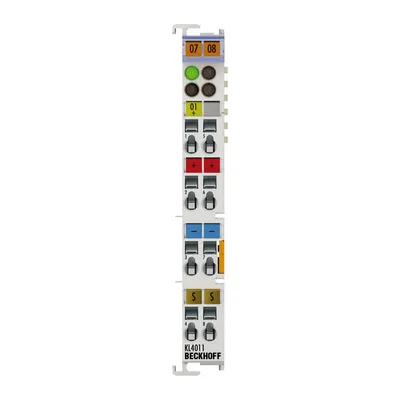

Beckhoff KL4011 – Bus Terminal, 1-channel analog output, current, 0…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 1-channel analog output, current, 0…20 mA, 12 bit, single-ended

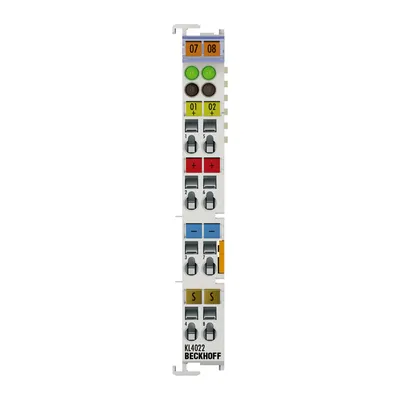

Beckhoff KL4022 – Bus Terminal, 2-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 2-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff KL4021 – Bus Terminal, 1-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 1-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff KL4032 – Bus Terminal, 2-channel analog output, voltage, ±10 V, 12 bit, differential

Beckhoff

Bus Terminal, 2-channel analog output, voltage, ±10 V, 12 bit, differential

Beckhoff KL4031 – Bus Terminal, 1-channel analog output, voltage, ±10 V, 12 bit, differential

Beckhoff

Bus Terminal, 1-channel analog output, voltage, ±10 V, 12 bit, differential

Beckhoff KL4418 – Bus Terminal, 8-channel analog output, current, 0…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 8-channel analog output, current, 0…20 mA, 12 bit, single-ended

Beckhoff KL4414 – Bus Terminal, 4-channel analog output, current, 0…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 4-channel analog output, current, 0…20 mA, 12 bit, single-ended

Beckhoff KL4408 – Bus Terminal, 8-channel analog output, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

Bus Terminal, 8-channel analog output, voltage, 0…10 V, 12 bit, single-ended

Beckhoff KL4404 – Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit, single-ended

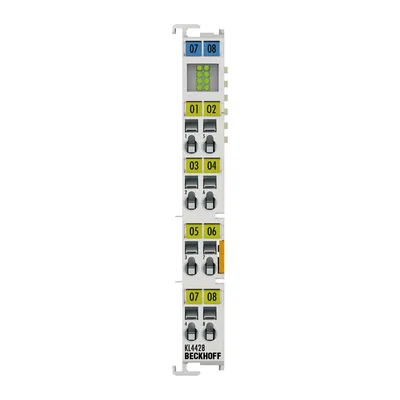

Beckhoff KL4428 – Bus Terminal, 8-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 8-channel analog output, current, 4…20 mA, 12 bit, single-ended

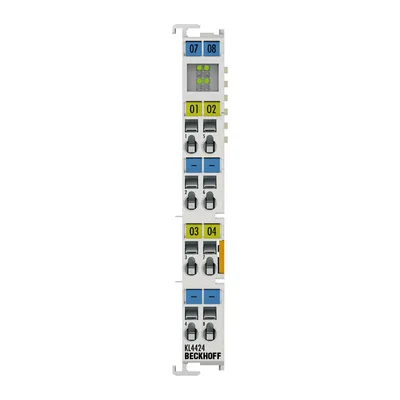

Beckhoff KL4424 – Bus Terminal, 4-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff

Bus Terminal, 4-channel analog output, current, 4…20 mA, 12 bit, single-ended

Beckhoff KL4438 – Bus Terminal, 8-channel analog output, voltage, ±10 V, 12 bit, single-ended

Beckhoff

Bus Terminal, 8-channel analog output, voltage, ±10 V, 12 bit, single-ended

Beckhoff KL4434 – Bus Terminal, 4-channel analog output, voltage, ±10 V, 12 bit, single-ended

Beckhoff

Bus Terminal, 4-channel analog output, voltage, ±10 V, 12 bit, single-ended

Compare KL4xxx | Analog output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of outputs	Load	Conversion time	Current consumption power contacts	Current consumption K-bus
KM4602	2	> 5 kΩ (short-circuit proof)	~ 1.5 ms	– (no power contacts)	typ. 175 mA
KL4494	2 outputs + 2 inputs	> 5 kΩ (short-circuit proof)	2 ms	load only	typ. 70 mA
KL4132	2	> 5 kΩ (short-circuit proof)	~ 1.5 ms	– (no power contacts)	typ. 75 mA
KL4112	2	500 Ω	~ 3.5 ms	typ. 50 mA + load	typ. 60 mA
KL4034	4	> 5 kΩ (short-circuit proof)	~ 2 ms	– (no power contacts)	typ. 85 mA
KL4004	4	> 5 kΩ (short-circuit proof)	~ 2 ms	– (no power contacts)	typ. 85 mA
KL4002	2	> 5 kΩ (short-circuit proof)	~ 1.5 ms	– (no power contacts)	typ. 75 mA
KL4001	1	> 5 kΩ (short-circuit proof)	~ 1.5 ms	– (no power contacts)	typ. 75 mA
KL4012	2	500 Ω	~ 1.5 ms	typ. 50 mA + load	typ. 60 mA
KL4011	1	500 Ω	~ 1.5 ms	typ. 30 mA + load	typ. 60 mA
KL4022	2	500 Ω	~ 1.5 ms	typ. 50 mA + load	typ. 60 mA
KL4021	1	500 Ω	~ 1.5 ms	typ. 30 mA + load	typ. 60 mA
KL4032	2	> 5 kΩ (short-circuit proof)	~ 1.5 ms	– (no power contacts)	typ. 75 mA
KL4031	1	> 5 kΩ (short-circuit proof)	~ 1.5 ms	– (no power contacts)	typ. 75 mA
KL4418	8	150 Ω (short-circuit proof)	~ 8 ms	typ. 60 mA + load	typ. 20 mA
KL4414	4	350 Ω (short-circuit proof)	~ 4 ms	typ. 60 mA + load	typ. 20 mA
KL4408	8	> 5 kΩ (short-circuit proof)	~ 8 ms	load only	typ. 20 mA
KL4404	4	> 5 kΩ (short-circuit proof)	~ 4 ms	load only	typ. 20 mA
KL4428	8	150 Ω (short-circuit proof)	~ 8 ms	typ. 60 mA + load	typ. 20 mA
KL4424	4	350 Ω (short-circuit proof)	~ 4 ms	typ. 60 mA + load	typ. 20 mA
KL4438	8	> 5 kΩ (short-circuit proof)	~ 8 ms	load only	typ. 20 mA
KL4434	4	> 5 kΩ (short-circuit proof)	~ 4 ms	load only	typ. 20 mA

Common to all listed parts

Electrical isolation	500 V (K-bus/signal voltage)
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
