KL3xxx | Analog input Parts

Showing 25–48 of 53 parts
Beckhoff KL3681 – Bus Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit
Beckhoff
KL3681

Bus Terminal, 1-channel analog input, multimeter, 300 V AC/DC, 10 A, 19 bit

Beckhoff KM3712 – Bus Terminal module, 2-channel analog input, relative pressure, ±1000 hPa (-1…+1 bar)
Beckhoff
KM3712

Bus Terminal module, 2-channel analog input, relative pressure, ±1000 hPa (-1…+1 bar)

Beckhoff KM3702 – Bus Terminal module, 2-channel analog input, relative pressure, 0...7500 hPa (0…+7.5 bar)
Beckhoff
KM3702

Bus Terminal module, 2-channel analog input, relative pressure, 0...7500 hPa (0…+7.5 bar)

Beckhoff KM3701 – Bus Terminal module, 1-channel analog input, differential pressure, ±100 hPa (±100 mbar)
Beckhoff
KM3701

Bus Terminal module, 1-channel analog input, differential pressure, ±100 hPa (±100 mbar)

Beckhoff KL3012 – Bus Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, differential
Beckhoff
KL3012

Bus Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff KL3011 – Bus Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, differential
Beckhoff
KL3011

Bus Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, differential

Beckhoff KL3002 – Bus Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, differential
Beckhoff
KL3002

Bus Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, differential

Beckhoff KL3001 – Bus Terminal, 1-channel analog input, voltage, ±10 V, 12 bit, differential
Beckhoff
KL3001

Bus Terminal, 1-channel analog input, voltage, ±10 V, 12 bit, differential

Beckhoff KL3022 – Bus Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential
Beckhoff
KL3022

Bus Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff KL3021 – Bus Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, differential
Beckhoff
KL3021

Bus Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, differential

Beckhoff KL3042 – Bus Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, single-ended
Beckhoff
KL3042

Bus Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff KL3041 – Bus Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, single-ended
Beckhoff
KL3041

Bus Terminal, 1-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff KL3052 – Bus Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended
Beckhoff
KL3052

Bus Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff KL3051 – Bus Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, single-ended
Beckhoff
KL3051

Bus Terminal, 1-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff KL3062 – Bus Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended
Beckhoff
KL3062

Bus Terminal, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

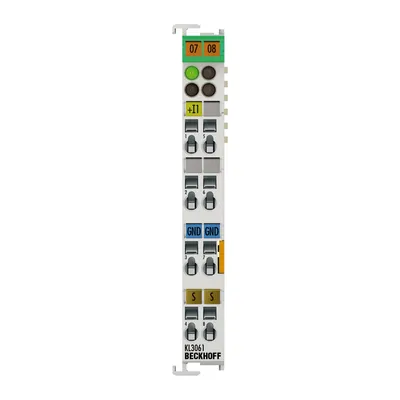

Beckhoff KL3061 – Bus Terminal, 1-channel analog input, voltage, 0…10 V, 12 bit, single-ended
Beckhoff
KL3061

Bus Terminal, 1-channel analog input, voltage, 0…10 V, 12 bit, single-ended

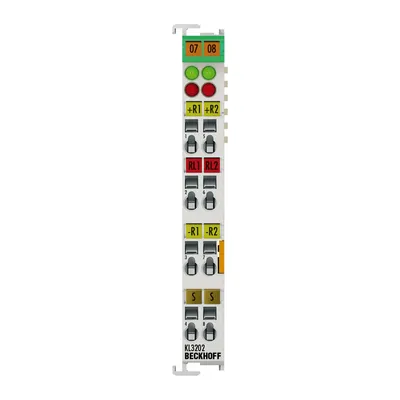

Beckhoff KL3202 – Bus Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit
Beckhoff
KL3202

Bus Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff KL3201 – Bus Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit
Beckhoff
KL3201

Bus Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff KL3311 – Bus Terminal, 1-channel analog input, temperature, thermocouple, 16 bit
Beckhoff
KL3311

Bus Terminal, 1-channel analog input, temperature, thermocouple, 16 bit

Beckhoff KL3312 – Bus Terminal, 2-channel analog input, temperature, thermocouple, 16 bit
Beckhoff
KL3312

Bus Terminal, 2-channel analog input, temperature, thermocouple, 16 bit

Beckhoff KL3404 – Bus Terminal, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended
Beckhoff
KL3404

Bus Terminal, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff KL3468 – Bus Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended
Beckhoff
KL3468

Bus Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff KL3464 – Bus Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended
Beckhoff
KL3464

Bus Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff KL3408 – Bus Terminal, 8-channel analog input, voltage, ±10 V, 12 bit, single-ended
Beckhoff
KL3408

Bus Terminal, 8-channel analog input, voltage, ±10 V, 12 bit, single-ended

Compare KL3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNNumber of inputsInternal resistanceMeasurement error/uncertaintyCurrent consumption K-busConversion time
KL36811 voltage or 1 current (10 A/1 A)3 mΩ/0.2 Ω/12.5 MΩ0.01% DC voltage measurement at 25°Ctyp. 100 mA—
KM37122—3% (relative to full scale value)typ. 15 mA—
KM37022—3% (relative to full scale value)typ. 15 mA—
KM37011 (differential pressure)—3% (relative to full scale value)typ. 15 mA—
KL3012280 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 60 mA~ 2 ms
KL3011180 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 60 mA~ 1 ms
KL30022> 200 kΩ±0.3% (relative to full scale value)typ. 65 mA~ 2 ms
KL30011> 200 kΩ±0.3% (relative to full scale value)typ. 65 mA~ 1 ms
KL3022280 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 60 mA~ 2 ms
KL3021180 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 60 mA~ 1 ms
KL3042280 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 65 mA~ 2 ms
KL3041180 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 65 mA~ 1 ms
KL3052280 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 65 mA~ 2 ms
KL3051180 Ω + diode voltage 0.7 V±0.3% (relative to full scale value)typ. 65 mA~ 1 ms
KL30622typ. > 200 kΩ±0.3% (relative to full scale value)typ. 60 mA~ 2 ms
KL30611typ. > 200 kΩ±0.3% (relative to full scale value)typ. 60 mA~ 1 ms
KL32022—±1°Ctyp. 60 mA~ 250 ms
KL32011—±1°Ctyp. 60 mA~ 200 ms
KL33111—±0.5% (relative to full scale value)typ. 65 mA~ 200 ms
KL33122—±0.5% (relative to full scale value)typ. 65 mA~ 250 ms
KL34044> 130 kΩ±0.3% (relative to full scale value)typ. 100 mA~ 2 ms
KL34688> 130 kΩ±0.3% (relative to full scale value)typ. 140 mA~ 4 ms
KL34644> 130 kΩ±0.3% (relative to full scale value)typ. 100 mA~ 2 ms
KL34088> 130 kΩ±0.3% (relative to full scale value)typ. 140 mA~ 4 ms

Common to all listed parts

Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/variable
Design formcompact terminal housing with signal LEDs
Materialpolycarbonate
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
