Home / I/O / Bus Terminals / KL1xxx | Digital input

KL1xxx | Digital input Parts

Beckhoff KL1704 – Bus Terminal, 4-channel digital input, 120…230 V AC, 10 ms

Beckhoff

Bus Terminal, 4-channel digital input, 120…230 V AC, 10 ms

Beckhoff KL1434 – Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, type 2, 2-wire connection

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, type 2, 2-wire connection

Beckhoff KL1722 – Bus Terminal, 2-channel digital input, 120…230 V AC, 10 ms, without power contacts

Beckhoff

Bus Terminal, 2-channel digital input, 120…230 V AC, 10 ms, without power contacts

Beckhoff KL1712 – Bus Terminal, 2-channel digital input, 120 V AC/DC, 10 ms

Beckhoff

Bus Terminal, 2-channel digital input, 120 V AC/DC, 10 ms

Beckhoff KL1702 – Bus Terminal, 2-channel digital input, 120…230 V AC, 10 ms

Beckhoff

Bus Terminal, 2-channel digital input, 120…230 V AC, 10 ms

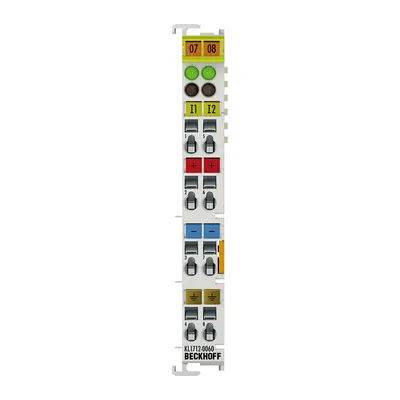

Beckhoff KL1712-0060 – Bus Terminal, 2-channel digital input, 60 V DC, 10 ms

Beckhoff

Bus Terminal, 2-channel digital input, 60 V DC, 10 ms

Beckhoff KL1859 – Bus Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A

Beckhoff

Bus Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A

Beckhoff KL1889 – Bus Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff

Bus Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching

Beckhoff KL1808 – Bus Terminal, 8-channel digital input, 24 V DC, 3 ms

Beckhoff

Bus Terminal, 8-channel digital input, 24 V DC, 3 ms

Beckhoff KL1904 – Bus Terminal, 4-channel digital input, 24 V DC, TwinSAFE

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, TwinSAFE

Beckhoff KL1512 – Bus Terminal, 2-channel digital input, counter, 24 V DC, 1 kHz

Beckhoff

Bus Terminal, 2-channel digital input, counter, 24 V DC, 1 kHz

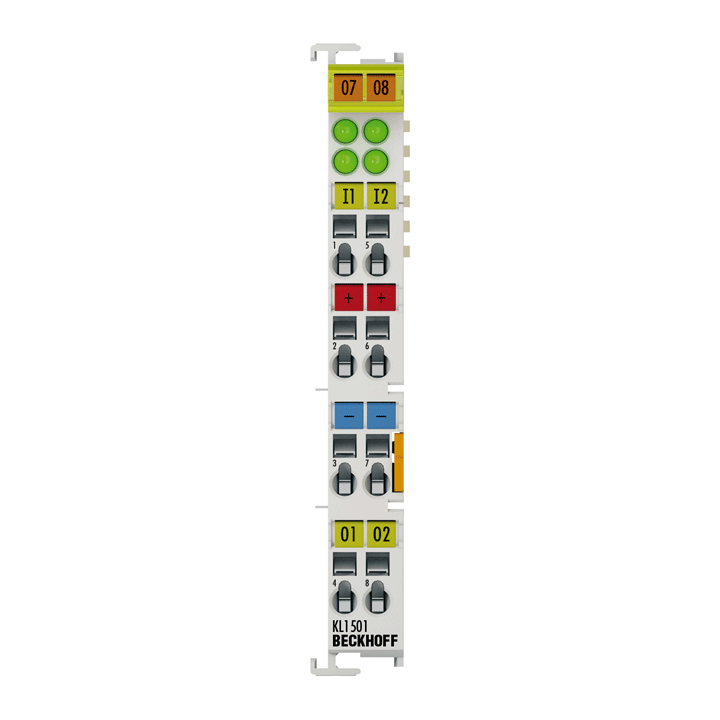

Beckhoff KL1501 – Bus Terminal, 1-channel digital input, counter, 24 V DC, 100 kHz

Beckhoff

Bus Terminal, 1-channel digital input, counter, 24 V DC, 100 kHz

Beckhoff KL1382 – Bus Terminal, 2-channel digital input, thermistor, 24 V DC, 30 ms

Beckhoff

Bus Terminal, 2-channel digital input, thermistor, 24 V DC, 30 ms

Beckhoff KL1362 – Bus Terminal, 2-channel digital input, break-in alarm, 24 V DC, 3 ms

Beckhoff

Bus Terminal, 2-channel digital input, break-in alarm, 24 V DC, 3 ms

Beckhoff KL1352 – Bus Terminal, 2-channel digital input, NAMUR

Beckhoff

Bus Terminal, 2-channel digital input, NAMUR

Beckhoff KL1232 – Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms, pulse extension

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 0.2 ms, pulse extension

Beckhoff KL1212 – Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, with diagnostics

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, with diagnostics

Beckhoff KL1124 – Bus Terminal, 4-channel digital input, 5 V DC, 0.2 ms

Beckhoff

Bus Terminal, 4-channel digital input, 5 V DC, 0.2 ms

Beckhoff KL1052 – Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, positive/ground switching

Beckhoff

Bus Terminal, 2-channel digital input, 24 V DC, 3 ms, positive/ground switching

Beckhoff KL1032 – Bus Terminal, 2-channel digital input, 48 V DC, 3 ms

Beckhoff

Bus Terminal, 2-channel digital input, 48 V DC, 3 ms

Beckhoff KL1414 – Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, 2-wire connection

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 0.2 ms, 2-wire connection

Beckhoff KL1404 – Bus Terminal, 4-channel digital input, 24 V DC, 3 ms, 2-wire connection

Beckhoff

Bus Terminal, 4-channel digital input, 24 V DC, 3 ms, 2-wire connection

Beckhoff KL1862-0010 – Bus Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching, flat-ribbon cable

Beckhoff

Bus Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching, flat-ribbon cable

Beckhoff KL1498 – Bus Terminal, 8-channel digital input, 24 V DC, 0.2 ms, ground switching

Beckhoff

Bus Terminal, 8-channel digital input, 24 V DC, 0.2 ms, ground switching

Compare KL1xxx | Digital input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal voltage	“0” signal voltage	“1” signal voltage	Input filter	Current consumption K-bus
KL1704	120/230 V AC	0…40 V	79…260 V	typ. 10 ms	typ. 3 mA
KL1434	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 2)	11…30 V (EN 61131-2, type 2)	typ. 0.2 ms	typ. 3 mA
KL1722	120/230 V AC	0…40 V	79…260 V	typ. 10 ms	typ. 3 mA
KL1712	120 V AC/DC	0…40 V	80…140 V	typ. 10 ms	typ. 3 mA
KL1702	120/230 V AC	0…40 V	79…260 V	typ. 10 ms	typ. 3 mA
KL1712-0060	60 V DC	0…20 V	40…70 V	typ. 10 ms	typ. 3 mA
KL1859	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 1/3)	11…30 V (EN 61131-2, type 3)	typ. 3.0 ms	typ. 25 mA
KL1889	24 V DC (-15%/+20%)	18…30 V	0…7 V	typ. 3.0 ms	typ. 20 mA
KL1808	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 1/3)	11…30 V (EN 61131-2, type 3)	typ. 3.0 ms	typ. 15 mA
KL1904	—	—	—	—	48 mA
KL1512	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 1)	15…30 V (EN 61131-2, type 1)	—	typ. 50 mA
KL1501	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 1)	15…30 V (EN 61131-2, type 1)	—	typ. 50 mA
KL1382	24 V (-15%/+20%)	≤ 1.5 kΩ	≥ 3 kΩ	30 ms	typ. 60 mA
KL1362	24 V (-15%/+20%)	—	—	3.0 ms	typ. 35 mA
KL1352	—	—	—	3.0 ms	typ. 70 mA
KL1232	24 V DC (-15%/+20%)	-3…+5 V	15…30 V	0.2 ms	typ. 5 mA
KL1212	24 V DC (-15%/+20%)	-3…+5 V	15…30 V	typ. 3.0 ms	typ. 8 mA
KL1124	5 V DC	0.8 V	> 2.4 V	typ. 0.2 ms	typ. 5 mA
KL1052	24 V DC (-15%/+20%)	7.6…17.4 V	0…7 V and 18…30 V	typ. 3.0 ms	typ. 8 mA
KL1032	48 V DC (-15%/+20%)	-6…+34 V	34…60 V	typ. 3.0 ms	typ. 3 mA
KL1414	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 1/3)	11…30 V (EN 61131-2, type 3)	typ. 0.2 ms	typ. 3 mA
KL1404	24 V DC (-15%/+20%)	-3…+5 V (EN 61131-2, type 1/3)	11…30 V (EN 61131-2, type 3)	typ. 3.0 ms	typ. 3 mA
KL1862-0010	24 V DC (-15%/+20%)	18…30 V	0…7 V	typ. 3.0 ms	typ. 3 mA
KL1498	24 V DC (-15%/+20%)	18…30 V	0…7 V	typ. 0.2 ms	typ. 5 mA

Common to all listed parts

Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
