ER2xxx | Digital output Parts

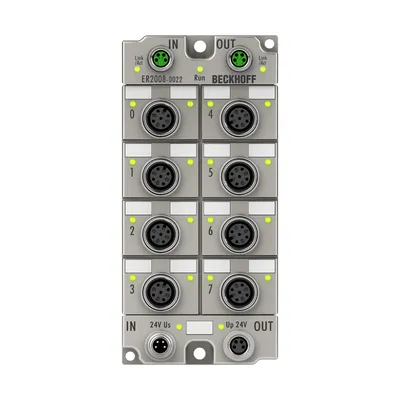

Beckhoff ER2008-0022 – EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

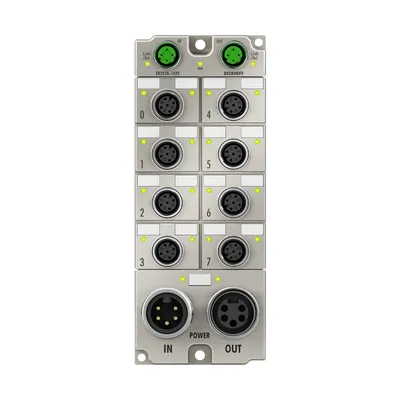

Beckhoff ER2028-1032 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, zinc die-cast

Beckhoff ER2008-0001 – EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M8, zinc die-cast

Beckhoff ER2008-0002 – EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

Beckhoff ER2028-0001 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, zinc die-cast

Beckhoff ER2028-0002 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, zinc die-cast

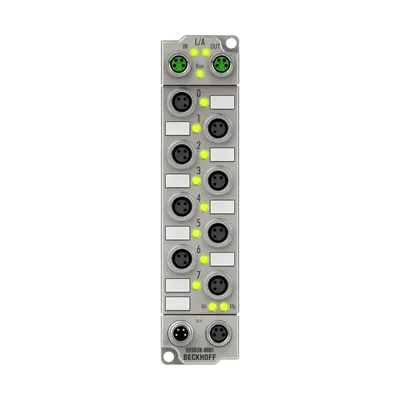

Beckhoff ER2038-0001 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics, zinc die-cast

Beckhoff ER2038-0002 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics, zinc die-cast

Beckhoff ER2809-0021 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M8, zinc die-cast

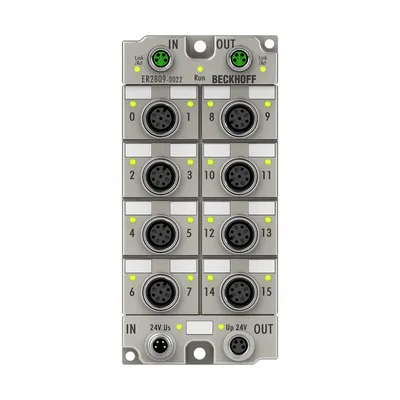

Beckhoff ER2809-0022 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, zinc die-cast

Beckhoff ER2624-0002 – EtherCAT Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12, zinc die-cast

Beckhoff ER2328-0001 – EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8, zinc die-cast

Beckhoff ER2308-0001 – EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8, zinc die-cast

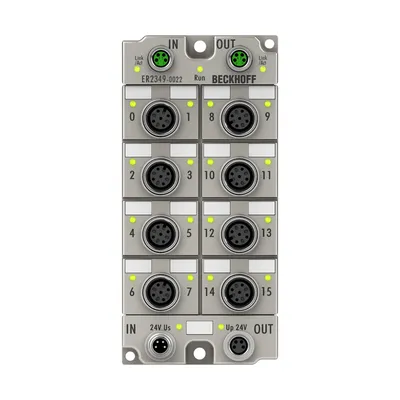

Beckhoff ER2349-0022 – EtherCAT Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12, zinc die-cast

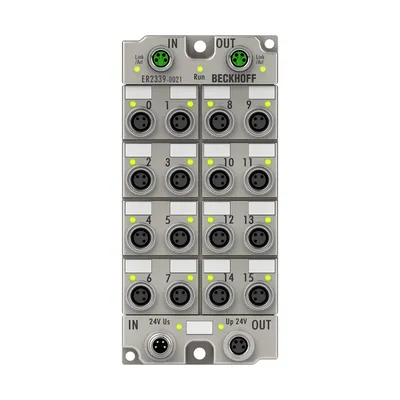

Beckhoff ER2339-0021 – EtherCAT Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8, zinc die-cast

Beckhoff ER2318-0001 – EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M8, zinc die-cast

Beckhoff ER2318-0002 – EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M12, zinc die-cast

Beckhoff ER2308-0002 – EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12, zinc die-cast

Beckhoff ER2349-0021 – EtherCAT Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 16-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8, zinc die-cast

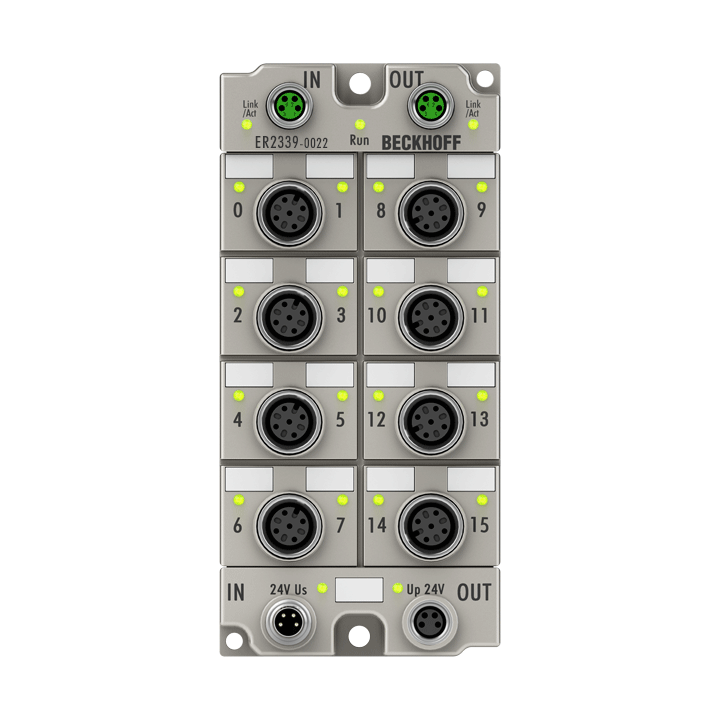

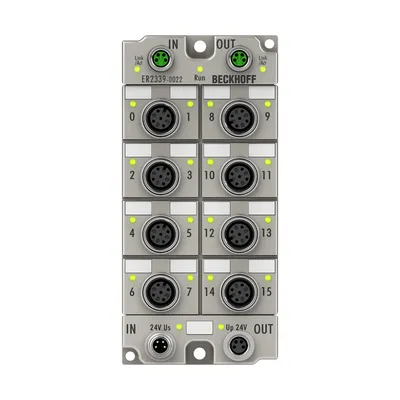

Beckhoff ER2339-0022 – EtherCAT Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, M12, zinc die-cast

Beckhoff ER2328-0002 – EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M12, zinc die-cast

Beckhoff ER2338-0001 – EtherCAT Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M8, zinc die-cast

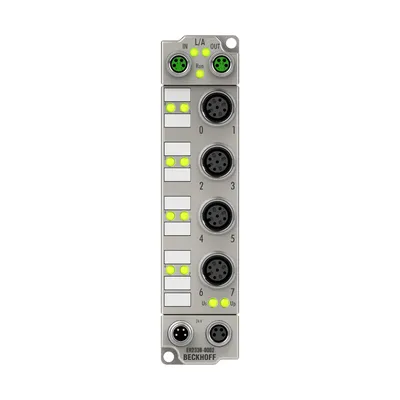

Beckhoff ER2338-0002 – EtherCAT Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12, zinc die-cast

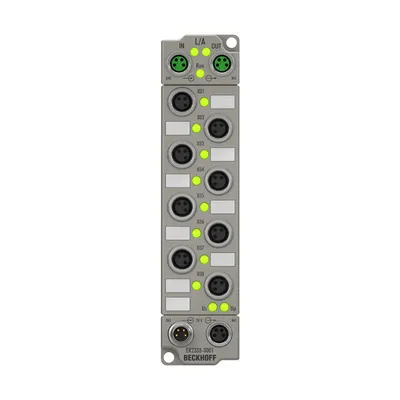

Beckhoff ER2338-1001 – EtherCAT Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8, zinc die-cast

Beckhoff

EtherCAT Box, 8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8, zinc die-cast

Compare ER2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Switching times	Short-circuit current	Current consumption from US	Weight	Dimensions (W x H x D)
ER2008-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 130 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2028-1032	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	typ. 130 mA	approx. 950 g	60 mm x 150 mm x 26.5 mm
ER2008-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2008-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2028-0001	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2028-0002	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2038-0001	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2038-0002	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2809-0021	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 130 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2809-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	typ. 130 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2624-0002	—	—	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2328-0001	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2308-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2349-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	typ. 130 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2339-0021	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	120 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2318-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2318-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2308-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2349-0021	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	typ. 130 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2339-0022	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.5 A	120 mA	approx. 450 g	60 mm x 126 mm x 26.5 mm
ER2328-0002	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	typ. 120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2338-0001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2338-0002	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm
ER2338-1001	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	120 mA	approx. 265 g	30 mm x 126 mm x 26.5 mm

Common to all listed parts

Protocol	EtherCAT
Load type	ohmic, inductive, lamp load
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Material	zinc die-cast
