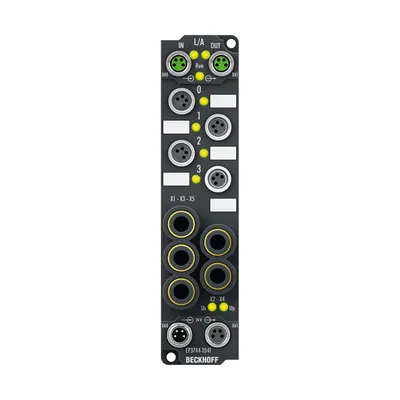

Beckhoff EP3744-1041 – EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…7000 hPa (0…+7 bar), M8

Beckhoff

EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…7000 hPa (0…+7 bar), M8

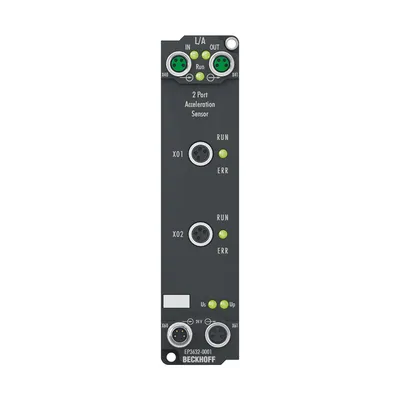

Beckhoff EP3632-0001 – EtherCAT Box, 2-channel analog input, IEPE/accelerometer, 16 bit, 50 ksps, M8

Beckhoff

EtherCAT Box, 2-channel analog input, IEPE/accelerometer, 16 bit, 50 ksps, M8

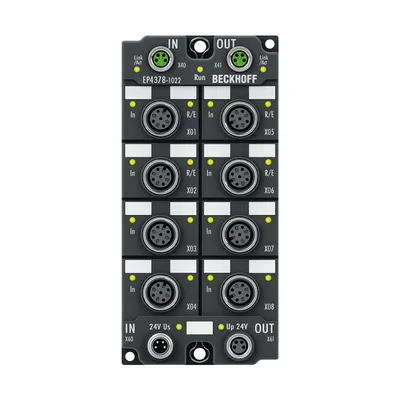

Beckhoff EP4378-1022 – EtherCAT Box, 4-channel analog input + 4-channel analog output, multi-function, ±10 V, 0/4…±20 mA, 16 bit, single-ended, M12

Beckhoff

EtherCAT Box, 4-channel analog input + 4-channel analog output, multi-function, ±10 V, 0/4…±20 mA, 16 bit, single-ended, M12

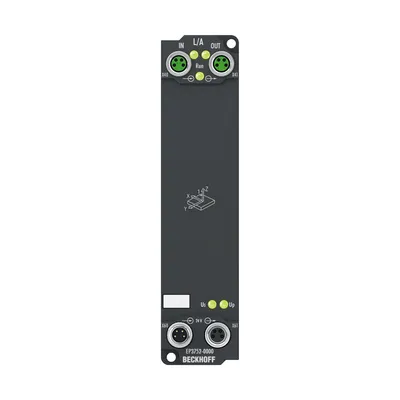

Beckhoff EP3752-0000 – EtherCAT Box, 2-channel, 2 x 3-axis accelerometers

Beckhoff

EtherCAT Box, 2-channel, 2 x 3-axis accelerometers

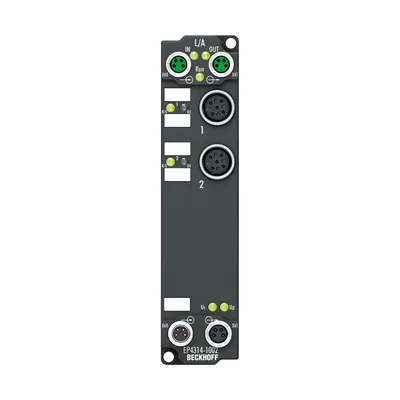

Beckhoff EP4314-1002 – EtherCAT Box, 2-channel analog input + 2-channel analog output, multi-function, ±20 mA, 16 bit, single-ended, M12

Beckhoff

EtherCAT Box, 2-channel analog input + 2-channel analog output, multi-function, ±20 mA, 16 bit, single-ended, M12

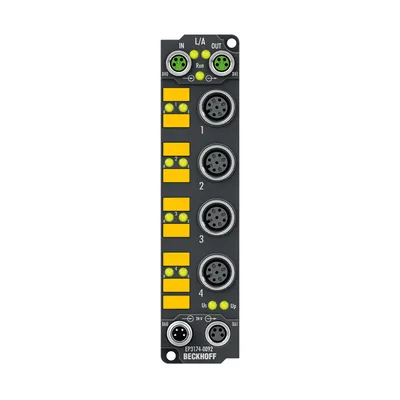

Beckhoff EP3174-0092 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, TwinSAFE SC

Beckhoff

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, TwinSAFE SC

Beckhoff EP3744-0041 – EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…1000 hPa (0…+1 bar), M8

Beckhoff

EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…1000 hPa (0…+1 bar), M8

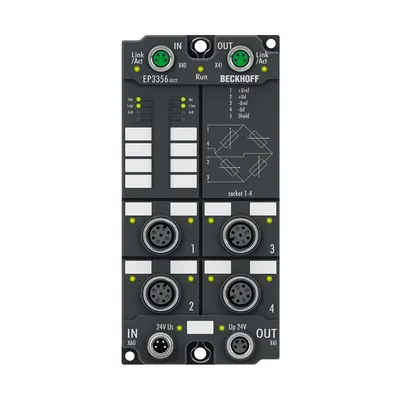

Beckhoff EP3356-0022 – EtherCAT Box, 1-channel analog input, measuring bridge, full bridge, 24 bit, M12

Beckhoff

EtherCAT Box, 1-channel analog input, measuring bridge, full bridge, 24 bit, M12

Beckhoff EP3314-0002 – EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12

Beckhoff

EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12

Beckhoff EP3204-0002 – EtherCAT Box, 4-channel analog input, temperature, RTD (Pt100), 16 bit, M12

Beckhoff

EtherCAT Box, 4-channel analog input, temperature, RTD (Pt100), 16 bit, M12

Beckhoff EP3184-1002 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

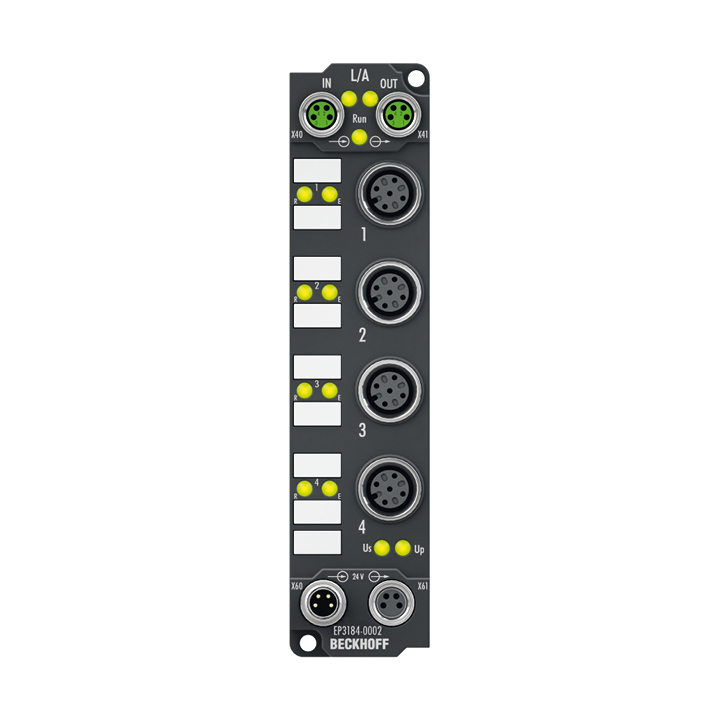

Beckhoff EP3184-0002 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

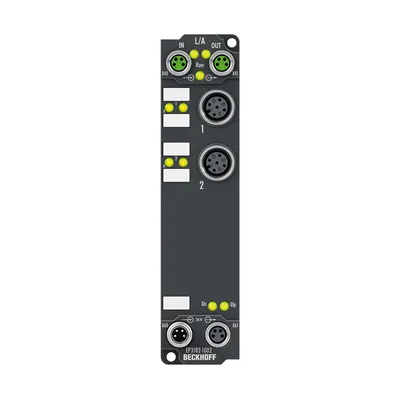

Beckhoff EP3182-1002 – EtherCAT Box, 2-channel analog input + 2-channel digital output, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff

EtherCAT Box, 2-channel analog input + 2-channel digital output, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12

Beckhoff EP3174-0002 – EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

Beckhoff EP3162-0002 – EtherCAT Box, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, electrically isolated, M12

Beckhoff

EtherCAT Box, 2-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, single-ended, electrically isolated, M12

Beckhoff EP4374-0002 – EtherCAT Box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

Beckhoff

EtherCAT Box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

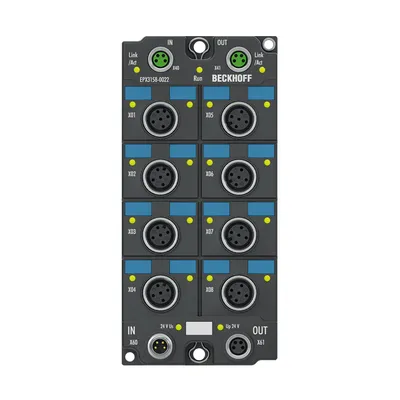

Beckhoff EPX3158-0022 – EtherCAT Box, 8-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, Ex i

Beckhoff

EtherCAT Box, 8-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, Ex i

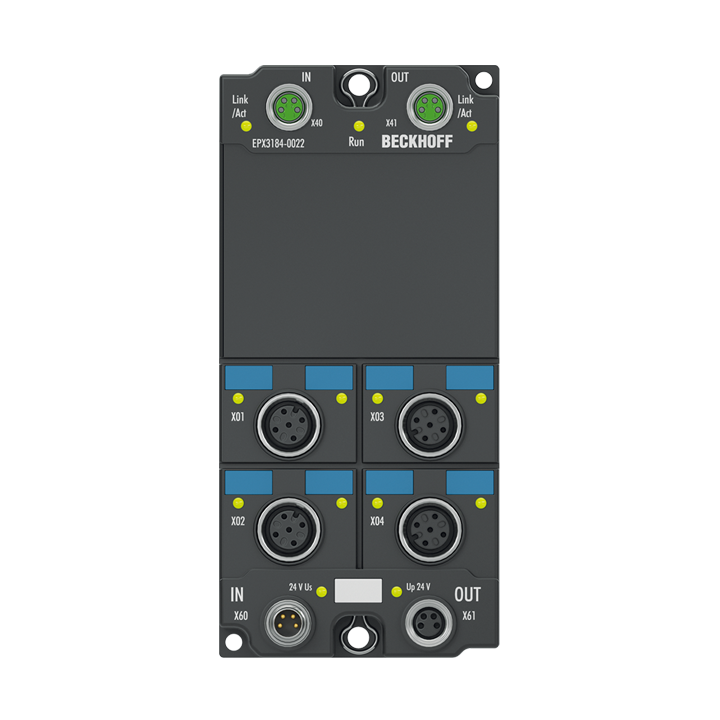

Beckhoff EPX3184-0022 – EtherCAT Box, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, HART, Ex i

Beckhoff

EtherCAT Box, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, HART, Ex i

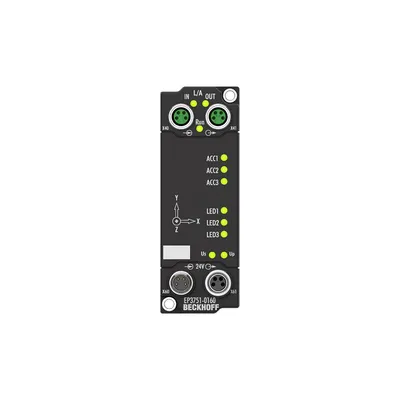

Beckhoff EP3751-0160 – EtherCAT Box, 1-channel, 1 x 3-axis accelerometers

Beckhoff

EtherCAT Box, 1-channel, 1 x 3-axis accelerometers

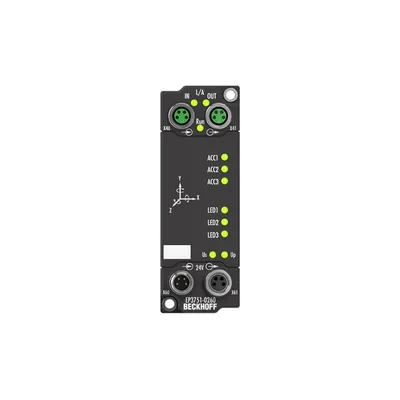

Beckhoff EP3751-0260 – EtherCAT Box, 1-channel, 1 x 3-axis accelerometer, 1 x 3-axis gyroscope

Beckhoff

EtherCAT Box, 1-channel, 1 x 3-axis accelerometer, 1 x 3-axis gyroscope

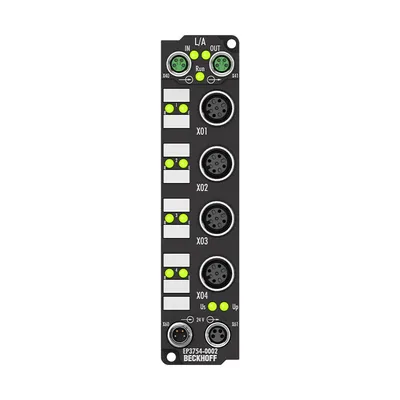

Beckhoff EP3754-0002 – EtherCAT Box, 4-channel analog input, multi-function, M12

Beckhoff

EtherCAT Box, 4-channel analog input, multi-function, M12

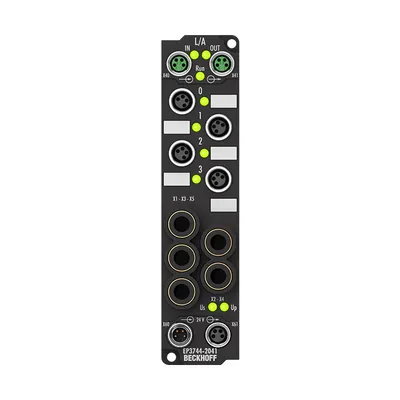

Beckhoff EP3744-2041 – EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…1000 hPa (0…+1 bar), high-precision, M8

Beckhoff

EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…1000 hPa (0…+1 bar), high-precision, M8

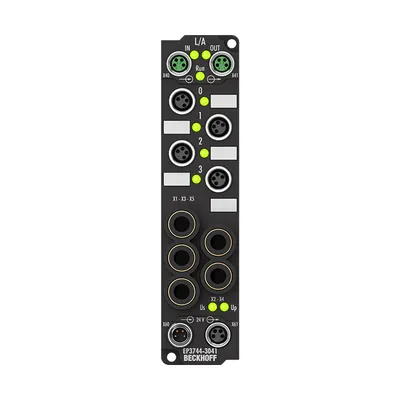

Beckhoff EP3744-3041 – EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…12000 hPa (0…+12 bar), M8

Beckhoff

EtherCAT Box, 4-channel analog input + 8-channel digital combi, pressure, 0…12000 hPa (0…+12 bar), M8

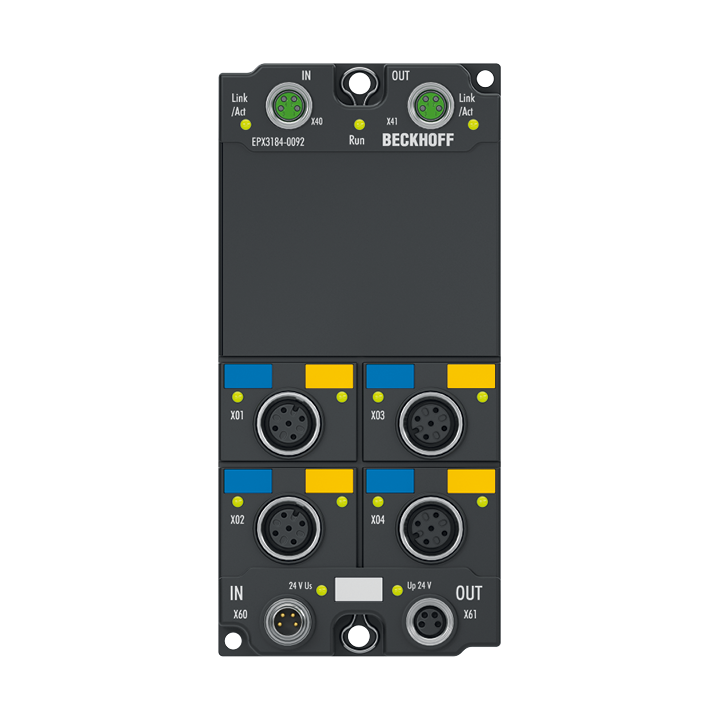

Beckhoff EPX3184-0092 – EtherCAT Box, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, HART, Ex i, TwinSAFE SC

Beckhoff

EtherCAT Box, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended, M12, HART, Ex i, TwinSAFE SC

Compare EP3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distributed clocks	Current consumption from US	Electrical isolation	Dimensions (W x H x D)	Nominal voltage
EP3744-1041	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	—
EP3632-0001	yes	typ. 120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP4378-1022	—	120 mA	500 V	60 mm x 126 mm x 26.5 mm	—
EP3752-0000	–	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP4314-1002	—	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3174-0092	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3744-0041	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	—
EP3356-0022	yes	120 mA	—	60 mm x 126 mm x 26.5 mm	24 V (-15%/+20%)
EP3314-0002	–	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3204-0002	–	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3184-1002	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3184-0002	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3182-1002	—	120 mA	control voltage/fieldbus: yes	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3174-0002	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3162-0002	yes	120 mA	500 V fieldbus, 300 V signals/signal	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP4374-0002	—	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EPX3158-0022	yes	50 mA	—	60 mm x 126 mm x 26.5 mm	24 V DC
EPX3184-0022	yes	50 mA	—	60 mm x 126 mm x 26.5 mm	24 V DC
EP3751-0160	yes	typ. 100 mA	500 V	30 mm x 86 mm x 22 mm	24 V DC (-15%/+20%)
EP3751-0260	yes	typ. 100 mA	500 V	30 mm x 86 mm x 22 mm	24 V DC (-15%/+20%)
EP3754-0002	no	120 mA	500 V	30 mm x 126 mm x 26.5 mm	24 V DC (-15%/+20%)
EP3744-2041	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	—
EP3744-3041	yes	120 mA	500 V	30 mm x 126 mm x 26.5 mm	—
EPX3184-0092	yes	50 mA	—	60 mm x 126 mm x 26.5 mm	24 V DC

Common to all listed parts

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Material	PA6 (polyamide)
