Home / I/O / EtherCAT Box / EPxxxx | Industrial housing / EP2xxx | Digital output

EP2xxx | Digital output Parts

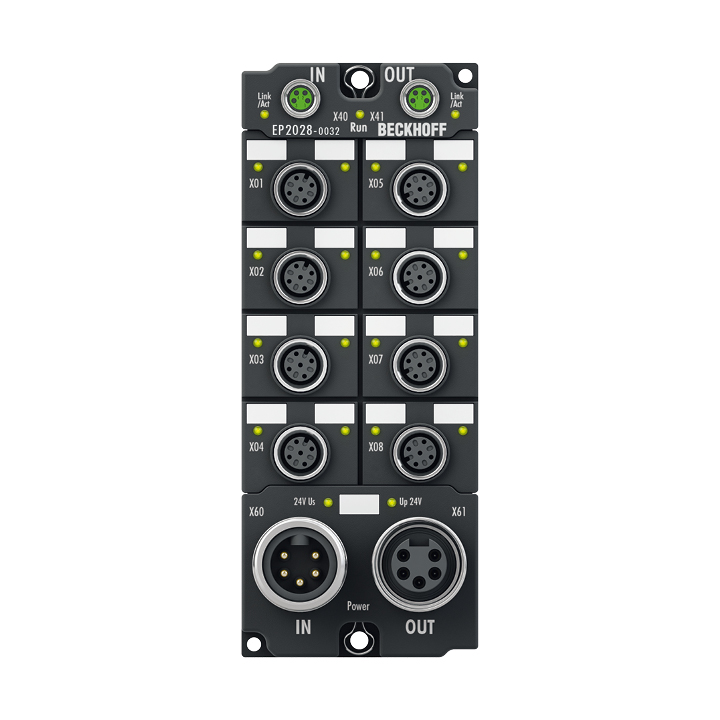

Beckhoff EP2028-0032 – EtherCAT Box, 8-channel digital output, 24 V DC, 2.8 A, M12

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2.8 A, M12

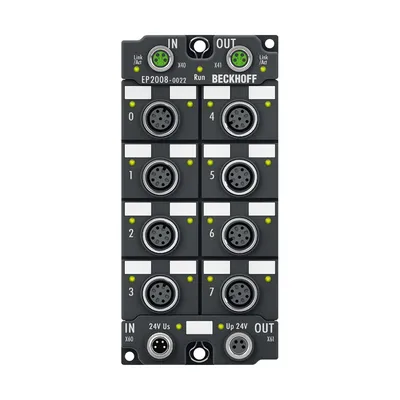

Beckhoff EP2008-0022 – EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff EP2008-0001 – EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff EP2008-0002 – EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 0.5 A, M12

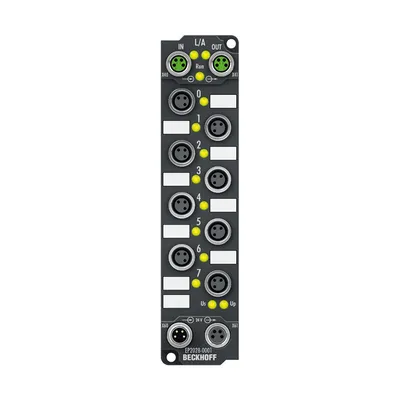

Beckhoff EP2028-0001 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8

Beckhoff EP2028-0002 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12

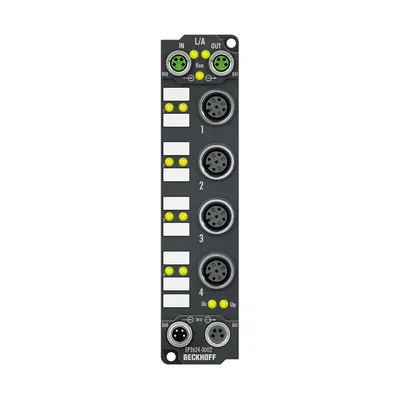

Beckhoff EP2624-0002 – EtherCAT Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12

Beckhoff

EtherCAT Box, 4-channel relay output, 25 V AC, 30 V DC, 0.5 A AC, 2 A DC, M12

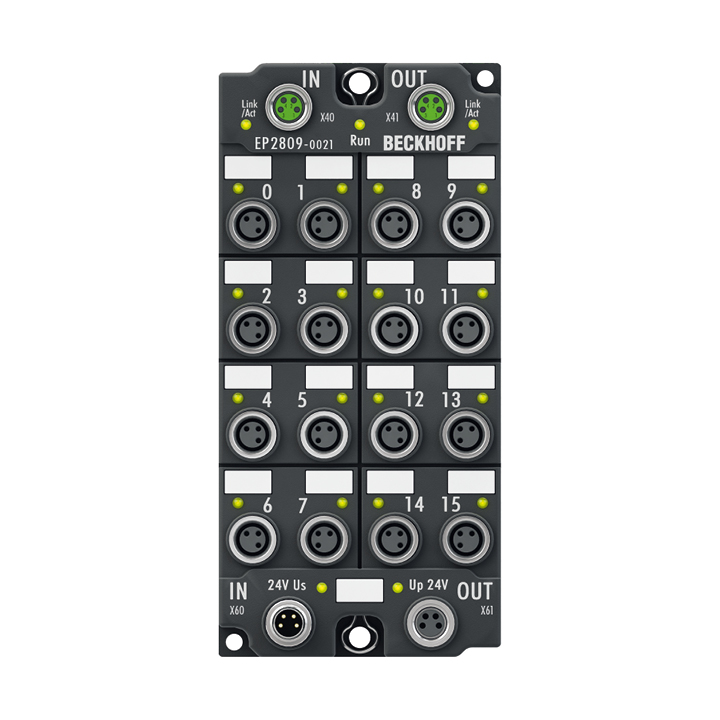

Beckhoff EP2809-0021 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff EP2809-0022 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12

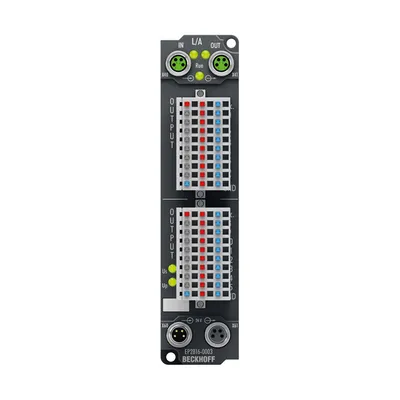

Beckhoff EP2816-0003 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, IP20 connector

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, IP20 connector

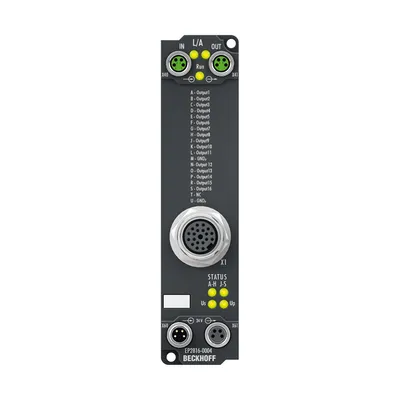

Beckhoff EP2816-0004 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M16

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M16

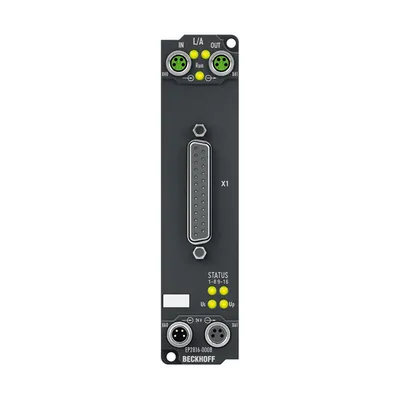

Beckhoff EP2816-0008 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

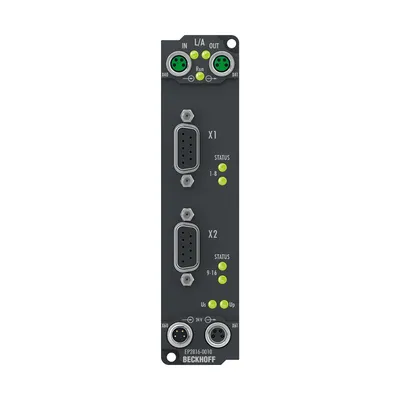

Beckhoff EP2816-0010 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

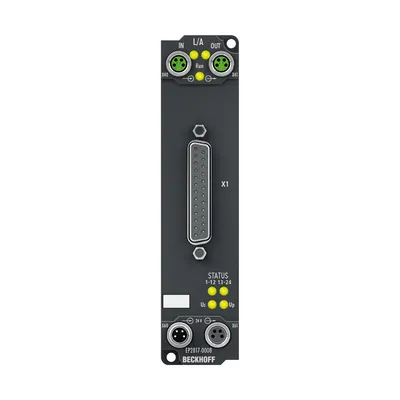

Beckhoff EP2817-0008 – EtherCAT Box, 24-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

EtherCAT Box, 24-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff EP2038-0001 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M8, with diagnostics

Beckhoff EP2038-0002 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with diagnostics

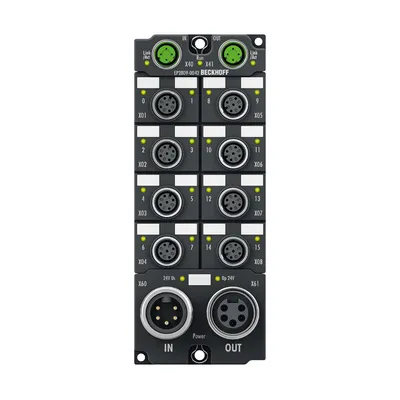

Beckhoff EP2809-0042 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12

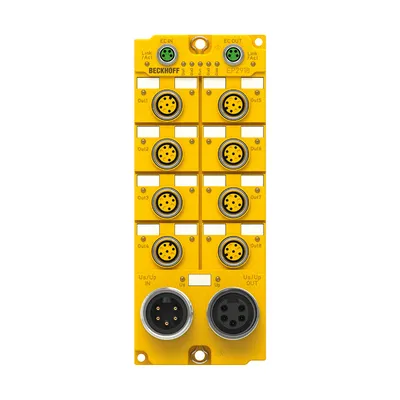

Beckhoff EP2918-0032 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, TwinSAFE, TwinSAFE Logic

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, TwinSAFE, TwinSAFE Logic

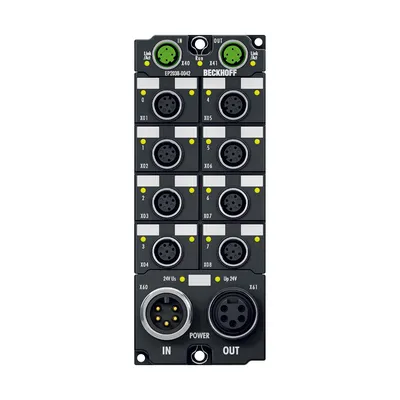

Beckhoff EP2038-0042 – EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with extended diagnostics

Beckhoff

EtherCAT Box, 8-channel digital output, 24 V DC, 2 A, M12, with extended diagnostics

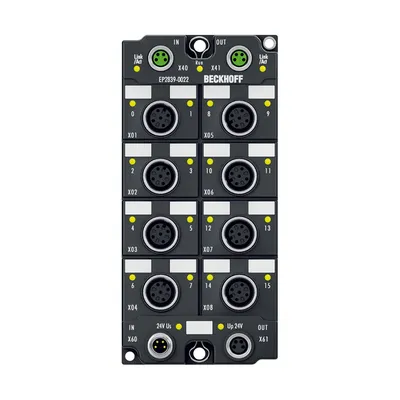

Beckhoff EP2839-0022 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, with extended diagnostics

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, with extended diagnostics

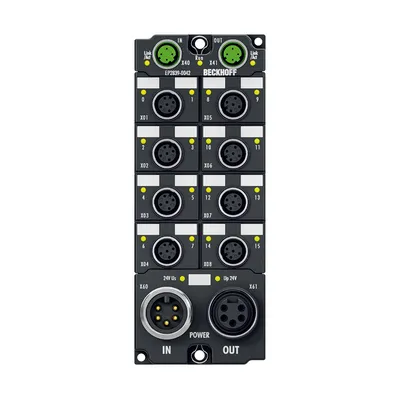

Beckhoff EP2839-0042 – EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, with extended diagnostics

Beckhoff

EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, M12, with extended diagnostics

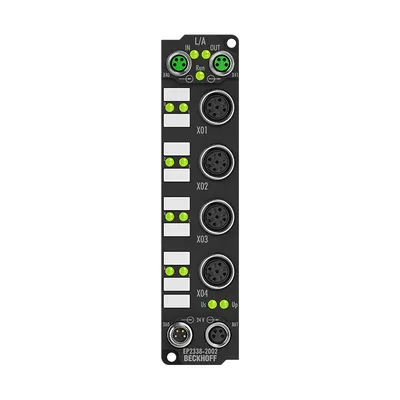

Beckhoff EP2338-2002 – EtherCAT Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

Beckhoff

EtherCAT Box, 8-channel digital combi, 24 V DC, 10 µs, 0.5 A, M12

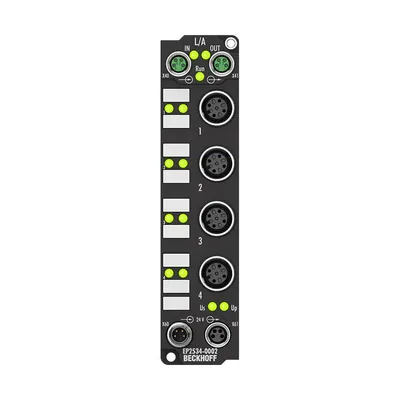

Beckhoff EP2534-0002 – EtherCAT Box, 4-channel PWM output, 24 V DC, 2 A, M12, current-controlled

Beckhoff

EtherCAT Box, 4-channel PWM output, 24 V DC, 2 A, M12, current-controlled

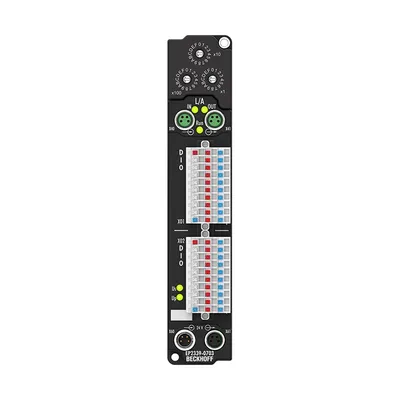

Beckhoff EP2339-0703 – EtherCAT Box, 16-channel digital combi, ID switch, 24 V DC, 3 ms, 0.5 A, IP20 connector

Beckhoff

EtherCAT Box, 16-channel digital combi, ID switch, 24 V DC, 3 ms, 0.5 A, IP20 connector

Compare EP2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of outputs	Output connections	Switching times	Short-circuit current	Weight
EP2028-0032	8	M12 x 1, 5-pin, a-coded	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	—
EP2008-0022	8	M12 x 1, 5-pin, a-coded	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	approx. 250 g
EP2008-0001	8	M8 x 1, 3-pin, a-coded	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	approx. 165 g
EP2008-0002	8	M12 x 1, 5-pin, a-coded	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	approx. 165 g
EP2028-0001	8	M8 x 1, 3-pin, a-coded	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	approx. 165 g
EP2028-0002	8	M12 x 1, 5-pin, a-coded	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	approx. 165 g
EP2624-0002	4 x make contacts	M12 x 1, 5-pin, a-coded	—	—	approx. 165 g
EP2809-0021	16	M8 x 1, 3-pin, a-coded	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	approx. 250 g
EP2809-0022	16	M12 x 1, 5-pin, a-coded	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	approx. 250 g
EP2816-0003	16	connector with spring-loaded system	typ. TON: 25 µs, typ. TOFF: 50 µs	max. 1.5 A	approx. 165 g
EP2816-0004	16	M16, 19-pin	typ. TON: 25 µs, typ. TOFF: 50 µs	max. 1.5 A	approx. 165 g
EP2816-0008	16	D-sub socket, 25-pin, UNC4-40	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	approx. 165 g
EP2816-0010	16	D-sub socket, 9-pin	typ. TON: 60 µs, typ. TOFF: 300 µs	max. 1.5 A	approx. 165 g
EP2817-0008	24	D-sub socket, 25-pin, UNC4-40	typ. TON: 10 µs, typ. TOFF: 50 µs	max. 1.0 A	approx. 165 g
EP2038-0001	8	M8 x 1, 3-pin, a-coded	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	approx. 165 g
EP2038-0002	8	M12 x 1, 5-pin, a-coded	typ. TON: 200 µs, typ. TOFF: 200 µs	typ. 15 A	approx. 165 g
EP2809-0042	16	M12 x 1, 5-pin, a-coded	typ. TON: 60 µs, typ. TOFF: 300 µs	typ. 1.9 A	approx. 440 g
EP2918-0032	8	—	—	—	approx. 470 g
EP2038-0042	8	M12 x 1, 5-pin, a-coded	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 3.2 A	approx. 440 g
EP2839-0022	16	M12 x 1, 5-pin, a-coded	typ. TON: 50 µs, typ. TOFF: 100 µs	max. 1.5 A	approx. 250 g
EP2839-0042	16	M12 x 1, 5-pin, a-coded	typ. TON: 50 µs, typ. TOFF: 100 µs	max. 1.5 A	approx. 440 g
EP2338-2002	—	—	typ. TON: 50 µs, typ. TOFF: 100 µs	typ. 1.5 A	approx. 165 g
EP2534-0002	4	M12 x 1, 5-pin, a-coded	—	typ. 4 A	approx. 165 g
EP2339-0703	—	—	typ. TON: 25 µs, typ. TOFF: 75 µs	typ. 1.5 A	approx. 200 g

Common to all listed parts

Material

PA6 (polyamide)
