Beckhoff

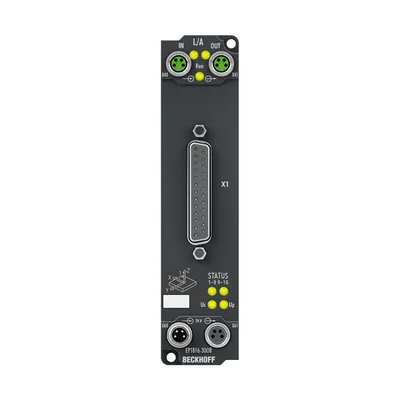

EP1816-3008EtherCAT Box, 16-channel digital input, 24 V DC, 10 µs, D-sub, 2 x 3-axis accelerometers
EP1xxx | Digital input Parts
Beckhoff

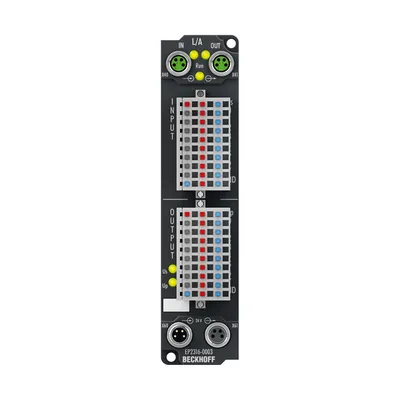

EP2316-0003EtherCAT Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, IP20 connector
Beckhoff

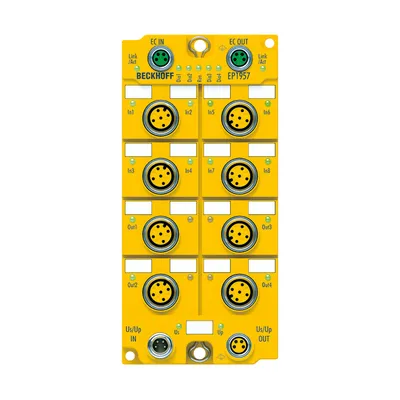

EP1957-0022EtherCAT Box, 8-channel digital input + 4-channel digital output, 24 V DC, 0.5 A, M12, TwinSAFE, TwinSAFE Logic
Beckhoff

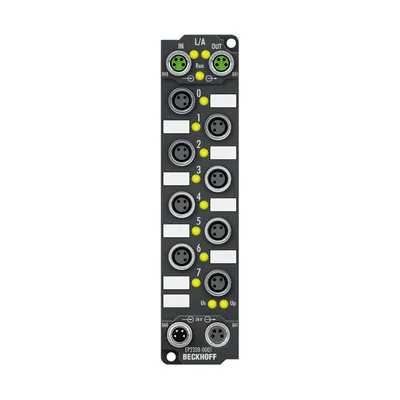

EP2308-0001EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M8
Beckhoff
EP2308-0002EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff

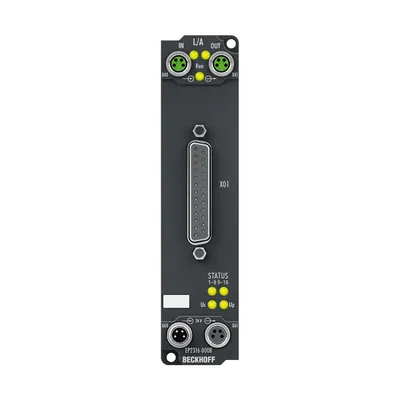

EP2316-0008EtherCAT Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, D-sub
Beckhoff
EP2318-0001EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M8
Beckhoff
EP2318-0002EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 10 µs, 0.5 A, M12
Compare EP1xxx | Digital input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Protocol | Input connections | Input filter | “0” signal voltage | Weight |
|---|---|---|---|---|---|
| EP1816-3008 | EtherCAT | D-sub socket, 25-pin, UNC4-40 | 10 µs | -3…+5 V (EN 61131-2, type 3) | — |

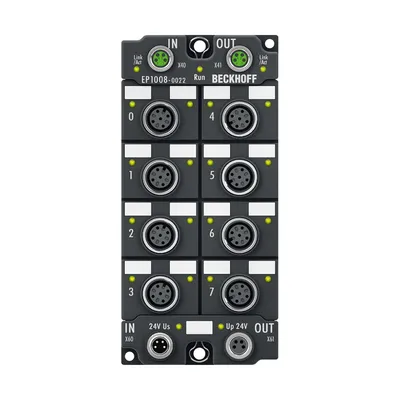

| EP1008-0022 | EtherCAT | M12 x 1, 5-pin, A-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | approx. 250 g |
| EP2316-0003 | EtherCAT | — | 10 µs | -3…+5 V | approx. 165 g |
| EP1957-0022 | TwinSAFE/Safety over EtherCAT | — | — | — | approx. 315 g |

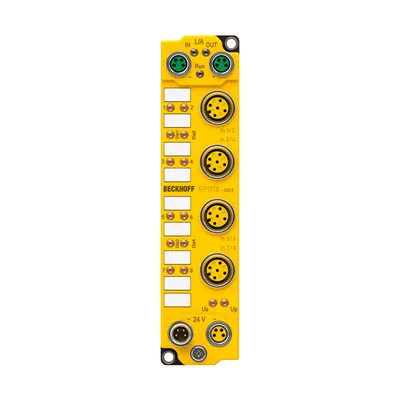

| EP1918-0002 | TwinSAFE/Safety over EtherCAT | — | — | — | — |

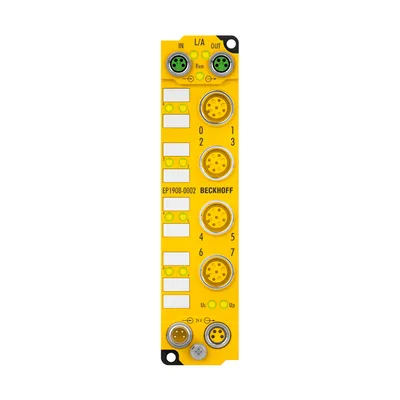

| EP1908-0002 | TwinSAFE/Safety over EtherCAT | — | — | — | approx. 170 g |
| EP1008-0001 | EtherCAT | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | approx. 165 g |
| EP1008-0002 | EtherCAT | M12 x 1, 5-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | approx. 165 g |
| EP1018-0001 | EtherCAT | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | approx. 165 g |
| EP1018-0002 | EtherCAT | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | approx. 165 g |
| EP1816-0008 | EtherCAT | D-sub socket, 25-pin, UNC4-40 | 10 µs | -3…+5 V (EN 61131-2, type 3) | approx. 165 g |

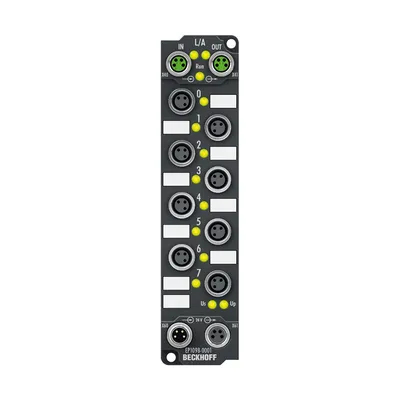

| EP1098-0001 | EtherCAT | M8 x 1, 3-pin, a-coded | 10 µs | 11…30 V | approx. 165 g |
| EP1258-0001 | EtherCAT | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (similar to EN 61131-2, type 3) | approx. 165 g |
| EP1258-0002 | EtherCAT | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (similar to EN 61131-2, type 3) | approx. 165 g |
| EP1518-0002 | EtherCAT | M12 x 1, 5-pin, a-coded | adjustable 0…100 ms | -3…+5 V (EN 61131-2, type 3) | approx. 165 g |
| EP1809-0021 | EtherCAT | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | approx. 250 g |
| EP1809-0022 | EtherCAT | M12 x 1, 5-pin, A-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | approx. 250 g |

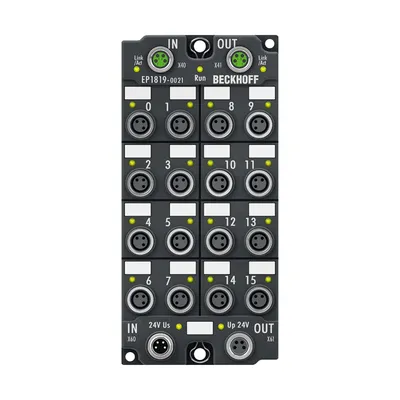

| EP1819-0021 | EtherCAT | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | approx. 250 g |
| EP1819-0022 | EtherCAT | M12 x 1, 5-pin, A-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | approx. 250 g |
| EP2308-0001 | EtherCAT | — | 3.0 ms | -3…+5 V | approx. 165 g |
| EP2308-0002 | EtherCAT | — | 3.0 ms | -3…+5 V | approx. 165 g |
| EP2316-0008 | EtherCAT | — | 10 µs | -3…+5 V | approx. 165 g |
| EP2318-0001 | EtherCAT | — | 10 µs | -3…+5 V | approx. 165 g |
| EP2318-0002 | EtherCAT | — | 10 µs | -3…+5 V | approx. 165 g |
Common to all listed parts
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Material | PA6 (polyamide) |
