EL9xxx | System Parts

Beckhoff EL9110 – Potential supply terminal, 24 V DC, with diagnostics

Beckhoff

Potential supply terminal, 24 V DC, with diagnostics

Beckhoff EL9100 – Potential supply terminal, 24 V DC

Beckhoff

Potential supply terminal, 24 V DC

Beckhoff EL9011 – Bus end cover for E-bus contacts

Beckhoff

Bus end cover for E-bus contacts

Beckhoff EL9080 – Separation terminal

Beckhoff

Separation terminal

Beckhoff EL9070 – Shield terminal

Beckhoff

Shield terminal

Beckhoff EL9183 – Potential distribution terminal, 16 x 1 potential

Beckhoff

Potential distribution terminal, 16 x 1 potential

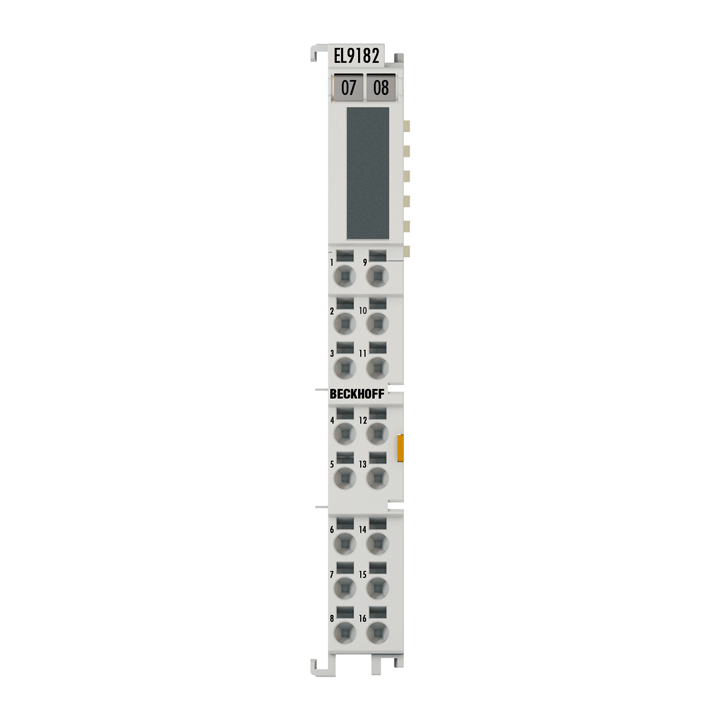

Beckhoff EL9182 – Potential distribution terminal, 2 x 8 potentials

Beckhoff

Potential distribution terminal, 2 x 8 potentials

Beckhoff EL9181 – Potential distribution terminal, 8 x 2 potentials

Beckhoff

Potential distribution terminal, 8 x 2 potentials

Beckhoff EL9160 – Potential supply terminal, 120…230 V AC, with diagnostics

Beckhoff

Potential supply terminal, 120…230 V AC, with diagnostics

Beckhoff EL9150 – Potential supply terminal, 120…230 V AC

Beckhoff

Potential supply terminal, 120…230 V AC

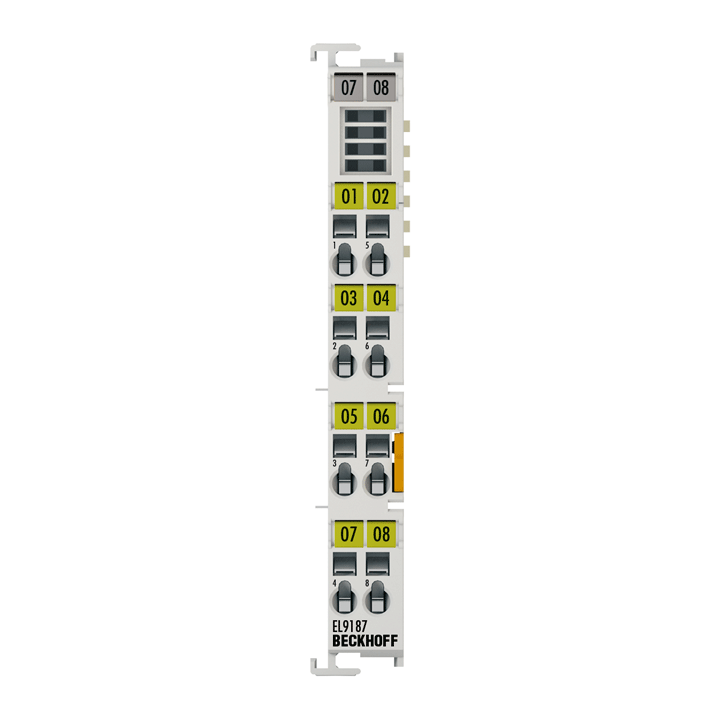

Beckhoff EL9187 – Potential distribution terminal, 8 x 0 V DC

Beckhoff

Potential distribution terminal, 8 x 0 V DC

Beckhoff EL9186 – Potential distribution terminal, 8 x 24 V DC

Beckhoff

Potential distribution terminal, 8 x 24 V DC

Beckhoff EL9185 – Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC

Beckhoff

Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC

Beckhoff EL9180 – EtherCAT Terminal, potential distribution, 2 x 24 V DC, 2 x 0 V DC, 2 x ⏚

Beckhoff

EtherCAT Terminal, potential distribution, 2 x 24 V DC, 2 x 0 V DC, 2 x ⏚

Beckhoff EL9189 – Potential distribution terminal, 16 x 0 V DC

Beckhoff

Potential distribution terminal, 16 x 0 V DC

Beckhoff EL9188 – Potential distribution terminal, 16 x 24 V DC

Beckhoff

Potential distribution terminal, 16 x 24 V DC

Beckhoff EL9184 – Potential distribution terminal, 8 x 24 V DC, 8 x 0 V DC

Beckhoff

Potential distribution terminal, 8 x 24 V DC, 8 x 0 V DC

Beckhoff EL9576 – Brake chopper terminal

Beckhoff

Brake chopper terminal

Beckhoff EL9200 – Potential supply terminal, 24 V DC, with fuse

Beckhoff

Potential supply terminal, 24 V DC, with fuse

Beckhoff EL9190 – Potential supply terminal, any voltage up to 230 V AC/DC

Beckhoff

Potential supply terminal, any voltage up to 230 V AC/DC

Beckhoff EL9195 – Shield terminal

Beckhoff

Shield terminal

Beckhoff EL9210 – Potential supply terminal, 24 V DC, with diagnostics and fuse

Beckhoff

Potential supply terminal, 24 V DC, with diagnostics and fuse

Beckhoff EL9550 – System terminal, surge filter system and field supply

Beckhoff

System terminal, surge filter system and field supply

Beckhoff EL9540 – System terminal, surge filter and field supply

Beckhoff

System terminal, surge filter and field supply

Compare EL9xxx | System

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal voltage	Weight	Operating temperature	Storage temperature	Approvals/markings
EL9110	24 V DC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9100	24 V DC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9011	—	approx 8 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9080	—	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9070	arbitrary up to 230 V AC	approx. 50 g	-25…+60°C	-40…+85°C	CE, UL
EL9183	≤ 60 V AC/DC	approx. 60 g	-25…+60°C	-40…+85°C	CE, UL
EL9182	≤ 60 V AC/DC	approx. 60 g	-25…+60°C	-40…+85°C	CE, UL
EL9181	≤ 60 V AC/DC	approx. 60 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9160	120/230 V AC	approx. 50 g	-25…+60°C	-40…+85°C	CE, UL
EL9150	120/230 V AC	approx. 50 g	-25…+60°C	-40…+85°C	CE, UL
EL9187	≤ 60 V DC / ≤ 30 V AC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9186	≤ 60 V DC / ≤ 30 V AC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9185	arbitrary up to 230 V AC/DC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9180	arbitrary up to 230 V AC/DC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9189	≤ 60 V	approx. 60 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9188	≤ 60 V	approx. 60 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9184	≤ 60 V	approx. 60 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9576	arbitrary up to 72 V	approx. 90 g	0…55°C	-25…+85°C	CE, UL
EL9200	24 V DC	approx. 50 g	0…55°C	-25…+85°C	CE, CCC, UL, ATEX, IECEx
EL9190	arbitrary up to 230 V AC/DC	approx. 50 g	-25…+60°C	-40…+85°C	CE, UL
EL9195	arbitrary up to 230 V AC/DC	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
EL9210	24 V DC	approx. 55 g	-25…+55°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx, DNV
EL9550	24 V (-15%/+20%)	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx, cFMus
EL9540	24 V (-15%/+20%)	approx. 50 g	-25…+60°C	-40…+85°C	CE, CCC, UL, ATEX, IECEx
