EL/ELM7xxx | Compact drive technology Parts

Beckhoff EL7221-9014 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT, suitable for STO applications

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT, suitable for STO applications

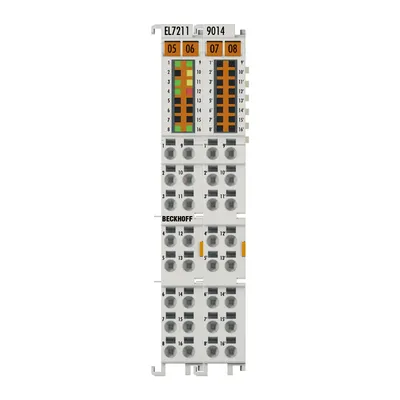

Beckhoff EL7211-9014 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, suitable for STO applications

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, suitable for STO applications

Beckhoff EL7201-9014 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, OCT, suitable for STO applications

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, OCT, suitable for STO applications

Beckhoff EL7037 – EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A, with incremental encoder

Beckhoff

EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A, with incremental encoder

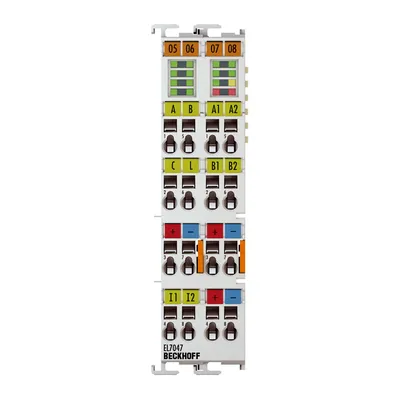

Beckhoff EL7047 – EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, vector control, with incremental encoder

Beckhoff

EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, vector control, with incremental encoder

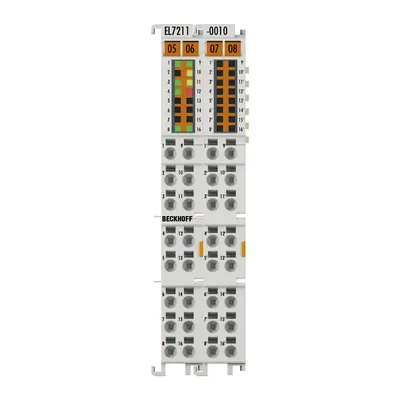

Beckhoff EL7211-0010 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT

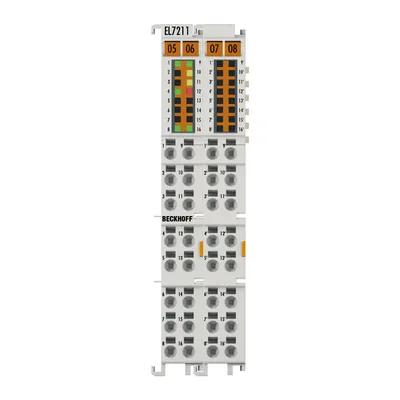

Beckhoff EL7211 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, resolver

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, resolver

Beckhoff EL7201-0010 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, OCT

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, OCT

Beckhoff EL7201 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, resolver

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 2.8 A, resolver

Beckhoff EL7041 – EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, with incremental encoder

Beckhoff

EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, with incremental encoder

Beckhoff EL7031 – EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A

Beckhoff

EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A

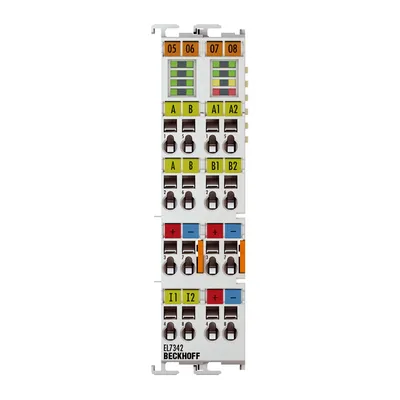

Beckhoff EL7342 – EtherCAT Terminal, 2-channel motion interface, DC motor, 48 V DC, 3.5 A

Beckhoff

EtherCAT Terminal, 2-channel motion interface, DC motor, 48 V DC, 3.5 A

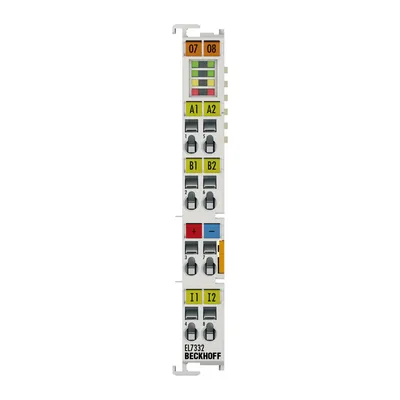

Beckhoff EL7332 – EtherCAT Terminal, 2-channel motion interface, DC motor, 24 V DC, 1 A

Beckhoff

EtherCAT Terminal, 2-channel motion interface, DC motor, 24 V DC, 1 A

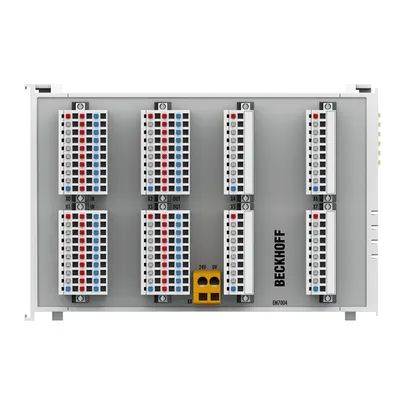

Beckhoff EM7004 – EtherCAT Terminal module, 4-channel motion interface, axis/servo drive, 24 V DC

Beckhoff

EtherCAT Terminal module, 4-channel motion interface, axis/servo drive, 24 V DC

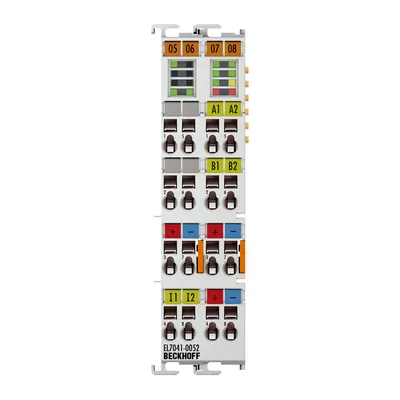

Beckhoff EL7041-0052 – EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A

Beckhoff

EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A

Beckhoff EL7031-0030 – EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 2.8 A

Beckhoff

EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 2.8 A

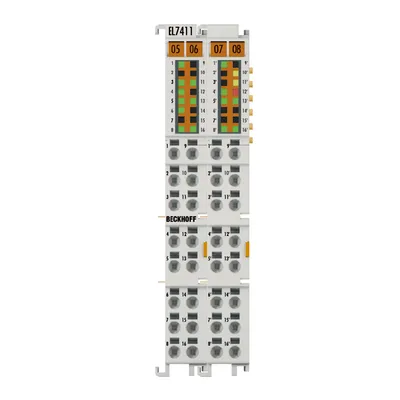

Beckhoff EL7411 – EtherCAT Terminal, 1-channel motion interface, BLDC motor, 48 V DC, 4.5 A, with incremental encoder

Beckhoff

EtherCAT Terminal, 1-channel motion interface, BLDC motor, 48 V DC, 4.5 A, with incremental encoder

Beckhoff ELM7211-9016 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, TwinSAFE Logic

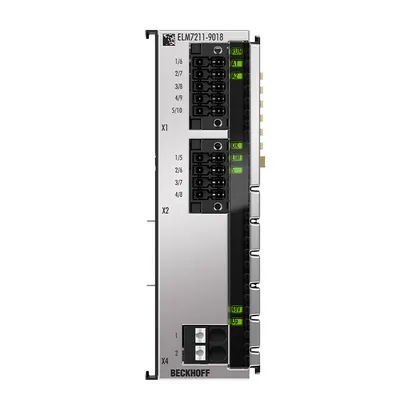

Beckhoff ELM7211-9018 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, Safe Motion, TwinSAFE Logic

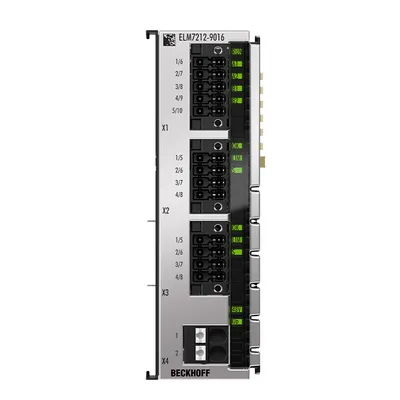

Beckhoff ELM7212-9016 – EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, TwinSAFE Logic

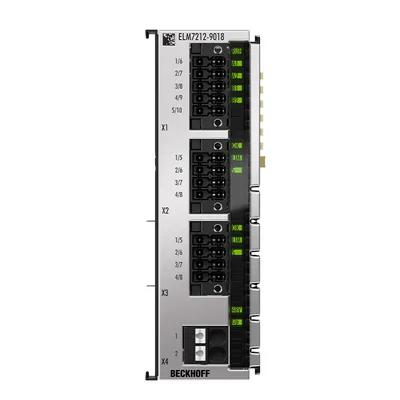

Beckhoff ELM7212-9018 – EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, STO, Safe Motion, TwinSAFE Logic

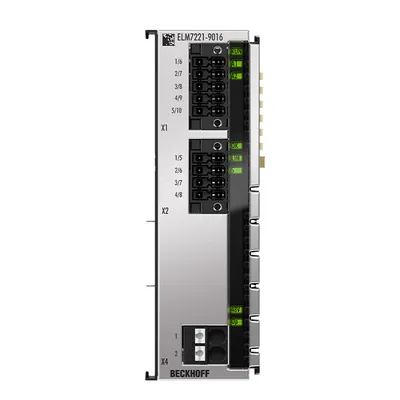

Beckhoff ELM7221-9016 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, TwinSAFE Logic

Beckhoff ELM7221-9018 – EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, Safe Motion, TwinSAFE Logic

Beckhoff ELM7222-9016 – EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, TwinSAFE Logic

Beckhoff

EtherCAT Terminal, 2-channel motion interface, servomotor, 48 V DC, 8 A, OCT, STO, TwinSAFE Logic

Compare EL/ELM7xxx | Compact drive technology

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Current consumption E-bus	Weight	Approvals/markings	Dimensions (W x H x D)	Output current
EL7221-9014	typ. 120 mA	approx. 95 g	CE, UL, TÜV SÜD	24 mm x 100 mm x 68 mm	—
EL7211-9014	typ. 120 mA	approx. 95 g	CE, UL, TÜV SÜD	24 mm x 100 mm x 68 mm	—
EL7201-9014	120 mA	approx. 60 g	CE, UL, TÜV SÜD	12 mm x 100 mm x 68 mm	—
EL7037	typ. 100 mA	approx. 50 g	CE, UL	12 mm x 100 mm x 68 mm	max. 1.5 A
EL7047	typ. 140 mA	approx. 90 g	CE, UL	24 mm x 100 mm x 68 mm	max. 5.0 A
EL7211-0010	typ. 120 mA	approx. 95 g	CE, UL	24 mm x 100 mm x 68 mm	—
EL7211	typ. 120 mA	approx. 95 g	CE, UL	24 mm x 100 mm x 68 mm	—
EL7201-0010	120 mA	approx. 60 g	CE, UL	12 mm x 100 mm x 68 mm	—
EL7201	typ. 120 mA	approx. 60 g	CE, UL	12 mm x 100 mm x 68 mm	—
EL7041	typ. 140 mA	approx. 90 g	CE, UL	24 mm x 100 mm x 68 mm	max. 5.0 A
EL7031	typ. 120 mA	approx. 50 g	CE, UL	12 mm x 100 mm x 68 mm	max. 1.5 A
EL7342	typ. 140 mA	approx. 90 g	CE, UL	24 mm x 100 mm x 68 mm	max. 3.5 A per channel
EL7332	typ. 140 mA	approx. 50 g	CE, UL	12 mm x 100 mm x 68 mm	max. 1 A per channel
EM7004	typ. 280 mA	approx. 260 g	CE	147 mm x 100 mm x 56 mm (with connector)	—
EL7041-0052	typ. 140 mA	approx. 90 g	CE	24 mm x 100 mm x 68 mm	max. 5.0 A
EL7031-0030	typ. 120 mA	approx. 50 g	CE, UL	12 mm x 100 mm x 68 mm	2.8 A
EL7411	typ. 190 mA	approx. 95 g	CE, UL	24 mm x 100 mm x 68 mm	—
ELM7211-9016	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A
ELM7211-9018	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A
ELM7212-9016	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A
ELM7212-9018	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A
ELM7221-9016	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A
ELM7221-9018	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A
ELM7222-9016	120 mA	approx. 390 g	CE, UL, TÜV SÜD	30 mm x 100 mm x 95 mm	max. 0.5 A

Common to all listed parts

Electrical isolation	500 V (E-bus/field potential)
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
