Beckhoff EL4008 – EtherCAT Terminal, 8-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff

EtherCAT Terminal, 8-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff EL4004 – EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff EL4002 – EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 12 bit

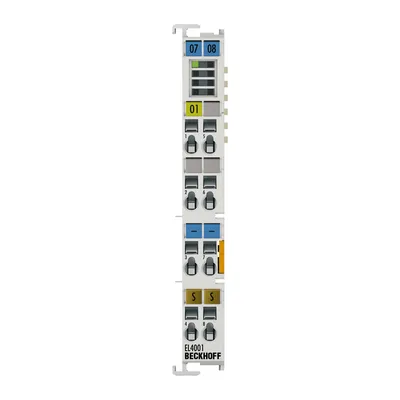

Beckhoff EL4001 – EtherCAT Terminal, 1-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff

EtherCAT Terminal, 1-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff EL4124 – EtherCAT Terminal, 4-channel analog output, current, 4…20 mA, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, current, 4…20 mA, 16 bit

Beckhoff EL4122 – EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 16 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 16 bit

Beckhoff EL4028 – EtherCAT Terminal, 8-channel analog output, current, 4…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 8-channel analog output, current, 4…20 mA, 12 bit

Beckhoff EL4024 – EtherCAT Terminal, 4-channel analog output, current, 4…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, current, 4…20 mA, 12 bit

Beckhoff EL4022 – EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 12 bit

Beckhoff EL4021 – EtherCAT Terminal, 1-channel analog output, current, 4…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 1-channel analog output, current, 4…20 mA, 12 bit

Beckhoff EL4114 – EtherCAT Terminal, 4-channel analog output, current, 0…20 mA, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, current, 0…20 mA, 16 bit

Beckhoff EL4112 – EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 16 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 16 bit

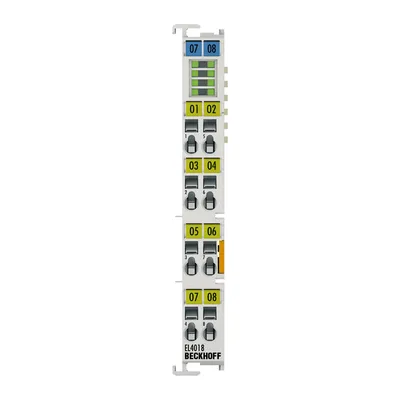

Beckhoff EL4018 – EtherCAT Terminal, 8-channel analog output, current, 0…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 8-channel analog output, current, 0…20 mA, 12 bit

Beckhoff EL4014 – EtherCAT Terminal, 4-channel analog output, current, 0…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, current, 0…20 mA, 12 bit

Beckhoff EL4012 – EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, current, 0…20 mA, 12 bit

Beckhoff EL4011 – EtherCAT Terminal, 1-channel analog output, current, 0…20 mA, 12 bit

Beckhoff

EtherCAT Terminal, 1-channel analog output, current, 0…20 mA, 12 bit

Beckhoff EL4104 – EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V, 16 bit

Beckhoff EL4102 – EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 16 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 16 bit

Beckhoff EL4134 – EtherCAT Terminal, 4-channel analog output, voltage, ±10 V, 16 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, voltage, ±10 V, 16 bit

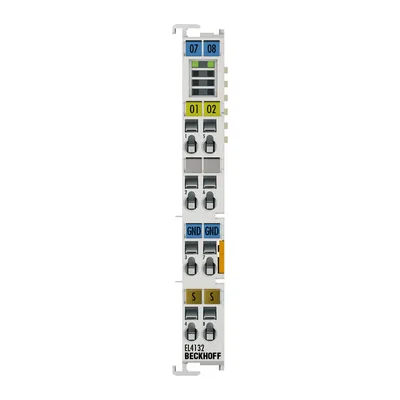

Beckhoff EL4132 – EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 16 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 16 bit

Beckhoff EL4038 – EtherCAT Terminal, 8-channel analog output, voltage, ±10 V, 12 bit

Beckhoff

EtherCAT Terminal, 8-channel analog output, voltage, ±10 V, 12 bit

Beckhoff EL4034 – EtherCAT Terminal, 4-channel analog output, voltage, ±10 V, 12 bit

Beckhoff

EtherCAT Terminal, 4-channel analog output, voltage, ±10 V, 12 bit

Beckhoff EL4032 – EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 12 bit

Beckhoff

EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 12 bit

Beckhoff EL4031 – EtherCAT Terminal, 1-channel analog output, voltage, ±10 V, 12 bit

Beckhoff

EtherCAT Terminal, 1-channel analog output, voltage, ±10 V, 12 bit

Compare EL4xxx | Analog output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of outputs	Load	Current consumption power contacts	Current consumption E-bus	Bit width in the process image
EL4008	8	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 100 mA	8 x 16 bit AO output
EL4004	4	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 140 mA	4 x 16 bit AO output
EL4002	2	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 140 mA	2 x 16 bit AO output
EL4001	1	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 140 mA	1 x 16 bit AO output
EL4124	4	350 Ω (short-circuit proof)	typ. 15 mA + load	typ. 110 mA	4 x 16 bit AO output
EL4122	2	500 Ω (short-circuit proof)	typ. 15 mA + load	typ. 110 mA	2 x 16 bit AO output
EL4028	8	150 Ω	typ. 50 mA	typ. 100 mA	8 x 16 bit AO output
EL4024	4	350 Ω (short-circuit proof)	typ. 50 mA	typ. 140 mA	4 x 16 bit AO output
EL4022	2	500 Ω (short-circuit proof)	typ. 50 mA	typ. 140 mA	2 x 16 bit AO output
EL4021	1	500 Ω (short-circuit proof)	typ. 50 mA	typ. 140 mA	1 x 16 bit AO output
EL4114	4	350 Ω (short-circuit proof)	typ. 15 mA + load	typ. 110 mA	4 x 16 bit AO output
EL4112	2	500 Ω (short-circuit proof)	typ. 15 mA + load	typ. 110 mA	2 x 16 bit AO output
EL4018	8	150 Ω	typ. 50 mA	typ. 100 mA	8 x 16 bit AO output
EL4014	4	350 Ω (short-circuit proof)	typ. 50 mA	typ. 140 mA	4 x 16 bit AO output
EL4012	2	500 Ω (short-circuit proof)	typ. 50 mA	typ. 140 mA	2 x 16 bit AO output
EL4011	1	500 Ω (short-circuit proof)	typ. 50 mA	typ. 140 mA	1 x 16 bit AO output
EL4104	4	> 5 kΩ (short-circuit proof)	–	typ. 190 mA	4 x 16 bit AO output
EL4102	2	> 5 kΩ (short-circuit proof)	–	typ. 170 mA	2 x 16 bit AO output
EL4134	4	> 5 kΩ (short-circuit proof)	–	typ. 190 mA	4 x 16 bit AO output
EL4132	2	> 5 kΩ (short-circuit proof)	–	typ. 170 mA	2 x 16 bit AO output
EL4038	8	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 100 mA	8 x 16 bit AO output
EL4034	4	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 140 mA	4 x 16 bit AO output
EL4032	2	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 140 mA	2 x 16 bit AO output
EL4031	1	> 5 kΩ (short-circuit proof)	typ. 40 mA	typ. 140 mA	1 x 16 bit AO output

Common to all listed parts

Distributed clocks	yes
Distributed clock precision	1 µs
Electrical isolation	500 V (E-bus/signal voltage)
Storage temperature	-40…+85°C
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/variable
