EL1xxx | Digital input Parts


EtherCAT Terminal, 2-channel digital input, 120…230 V AC, 10 ms, without power contacts






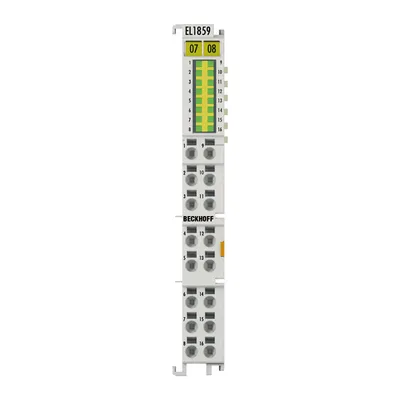

EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A







EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching, flat-ribbon cable








EtherCAT Terminal, 16-channel digital input, 24 V DC, 10 µs, ground switching, flat-ribbon cable

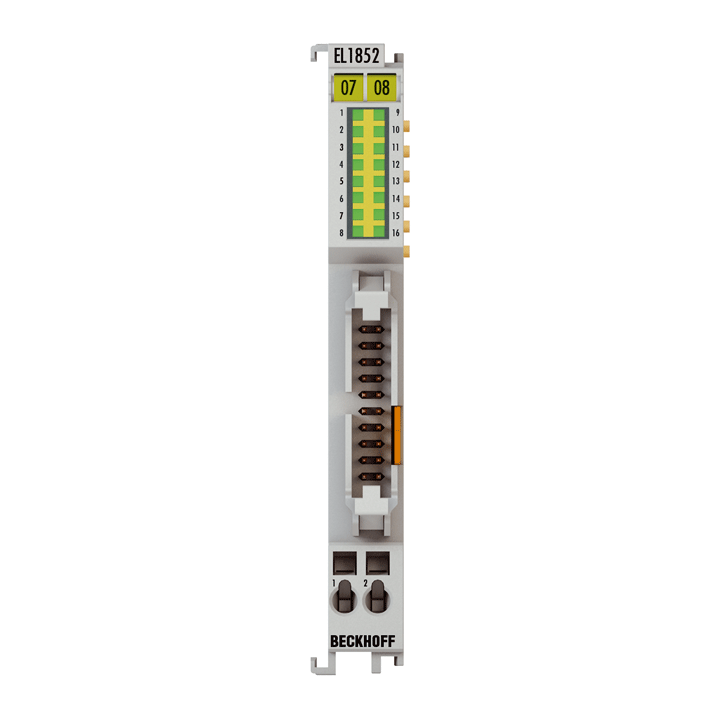

EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, flat-ribbon cable
Compare EL1xxx | Digital input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal voltage | “0” signal voltage | “1” signal voltage | Input current | Current consumption E-bus |
|---|---|---|---|---|---|

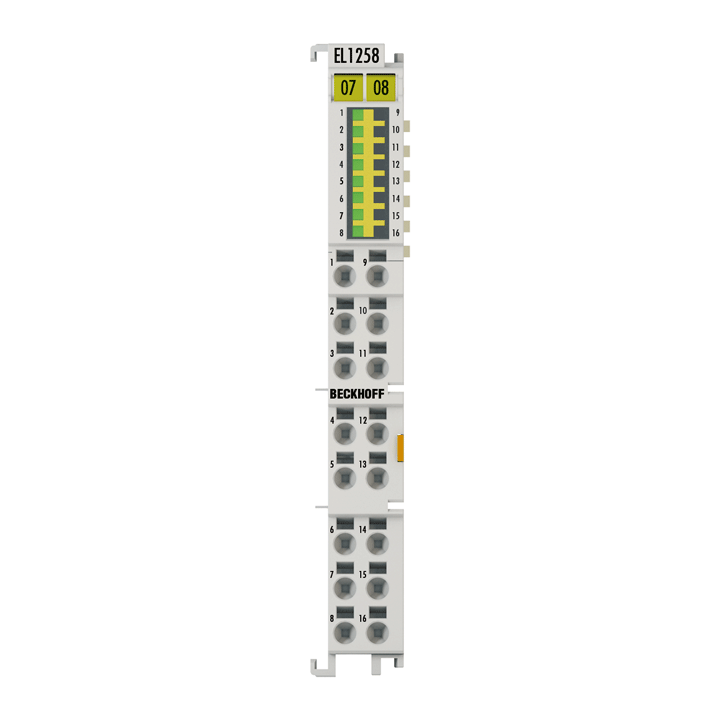

| EL1258 | 24 V DC (-15%/+20%) | -3…+5 V (IEC 61131-2, type 1/3) | 11…30 V (IEC 61131-2, type 1/3) | typ. 3 mA (EN 61131-2, type 1/3) | typ. 130 mA |
| EL1722 | 120/230 V AC | 0…40 V | 79…260 V | > 3 mA, typ. 6 mA | typ. 90 mA |

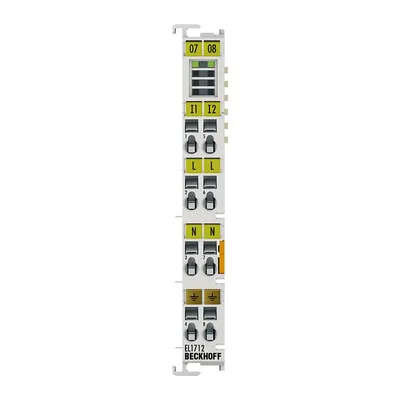

| EL1712 | 120 V AC/DC | 0…40 V | 79…140 V | > 3 mA, typ. 6 mA | typ. 90 mA |
| EL1702 | 120/230 V AC | 0…40 V | 79…260 V | > 3 mA, typ. 6 mA | typ. 90 mA |
| EL1512 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1) | 15…30 V (EN 61131-2, type 1) | typ. 5 mA (EN 61131-2, type 1) | typ. 130 mA |
| EL1502 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1) | 15…30 V (EN 61131-2, type 1) | typ. 5 mA (EN 61131-2, type 1) | typ. 130 mA |
| EL1262 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA | typ. 70 mA |
| EL1859 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 130 mA |
| EL1889 | 24 V DC (-15%/+20%) | 18…30 V | 0…7 V | typ. 3 mA | typ. 110 mA |
| EL1814 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 90 mA |
| EL1804 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 90 mA |
| EL1808 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
| EL1819 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
| EL1809 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
| EL1862-0010 | 24 V DC (-15%/+20%) | 18…30 V | 0…7 V | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
| EL1872 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
| EL1862 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |

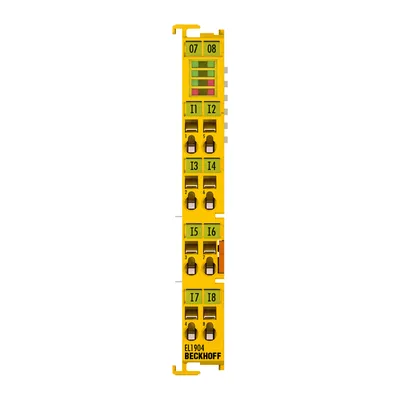

| EL1904 | — | — | — | — | typ. 200 mA |
| EL1054 | — | — | — | — | typ. 50 mA |
| ELX1052 | — | — | — | — | typ. 50 mA |
| EL1712-0020 | 120 V DC | 0…40 V | 80…140 V | typ. 3 mA | typ. 90 mA |
| EL1702-0020 | 220 V DC | 0…100 V | 180…264 V | typ. 1.4 mA | typ. 55 mA |
| EL1872-0010 | 24 V DC (-15%/+20%) | 18…30 V | 0…7 V | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
| EL1852 | 24 V DC (-15%/+20%) | -3…+5 V (EN 61131-2, type 1/3) | 11…30 V (EN 61131-2, type 3) | typ. 3 mA (EN 61131-2, type 3) | typ. 100 mA |
Common to all listed parts
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
