EK1xxx, BK1xx0 | EtherCAT Coupler Parts

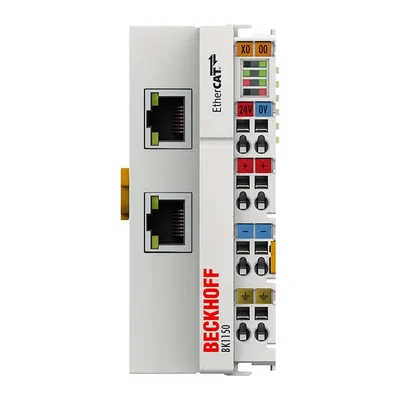

Beckhoff BK1150 – EtherCAT Compact Bus Coupler

Beckhoff

EtherCAT Compact Bus Coupler

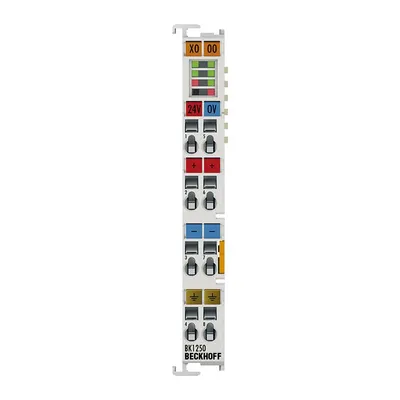

Beckhoff BK1250 – Compact coupler between EtherCAT Terminals and Bus Terminals

Beckhoff

Compact coupler between EtherCAT Terminals and Bus Terminals

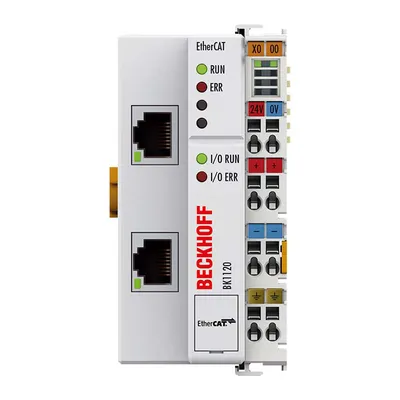

Beckhoff BK1120 – EtherCAT Bus Coupler for standard Bus Terminals

Beckhoff

EtherCAT Bus Coupler for standard Bus Terminals

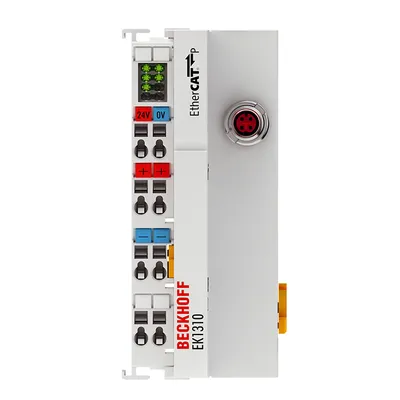

Beckhoff EK1310 – 1-port EtherCAT P extension with feed-in

Beckhoff

1-port EtherCAT P extension with feed-in

Beckhoff EK1300 – EtherCAT P coupler

Beckhoff

EtherCAT P coupler

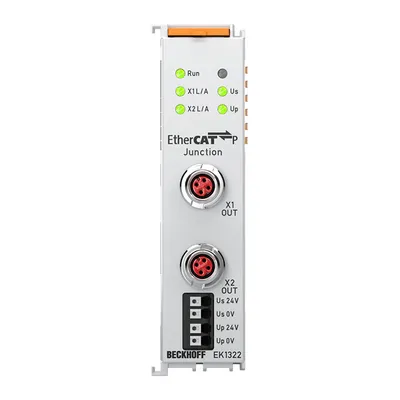

Beckhoff EK1322 – 2-port EtherCAT P junction with feed-in

Beckhoff

2-port EtherCAT P junction with feed-in

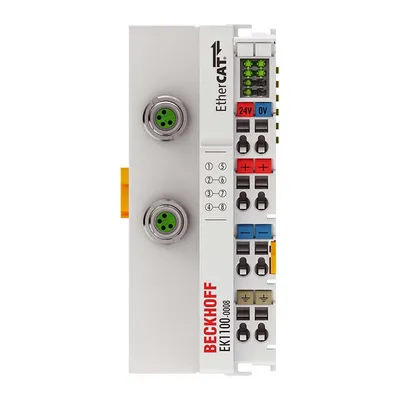

Beckhoff EK1100-0008 – EtherCAT Coupler with M8 connection

Beckhoff

EtherCAT Coupler with M8 connection

Beckhoff EK1100 – EtherCAT Coupler

Beckhoff

EtherCAT Coupler

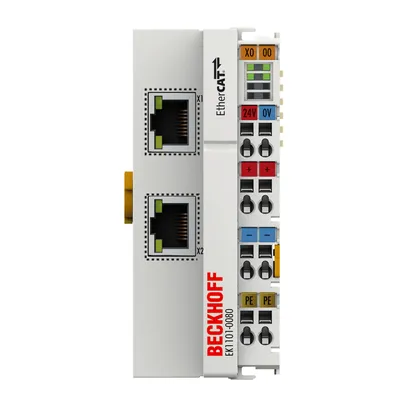

Beckhoff EK1101-0080 – EtherCAT Coupler with ID switch, Fast Hot Connect

Beckhoff

EtherCAT Coupler with ID switch, Fast Hot Connect

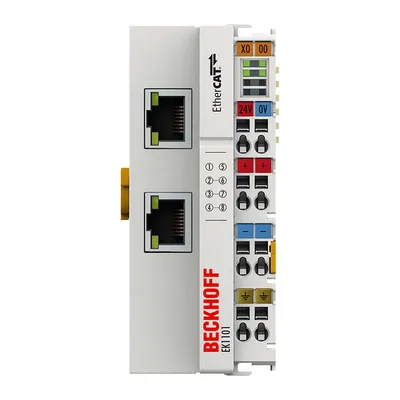

Beckhoff EK1101 – EtherCAT Coupler with ID switch

Beckhoff

EtherCAT Coupler with ID switch

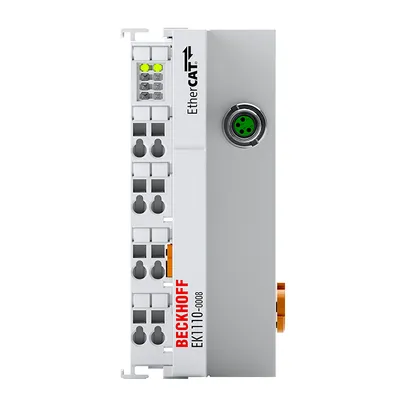

Beckhoff EK1110-0008 – EtherCAT extension with M8 connection

Beckhoff

EtherCAT extension with M8 connection

Beckhoff EK1110 – EtherCAT extension

Beckhoff

EtherCAT extension

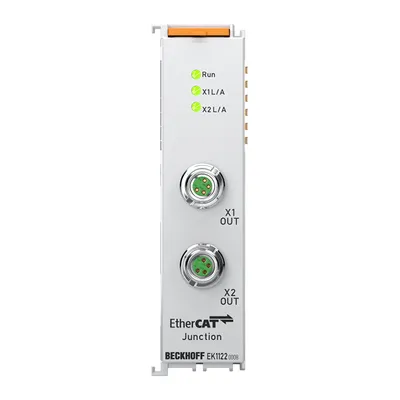

Beckhoff EK1122-0008 – 2-port EtherCAT junction with M8 connection

Beckhoff

2-port EtherCAT junction with M8 connection

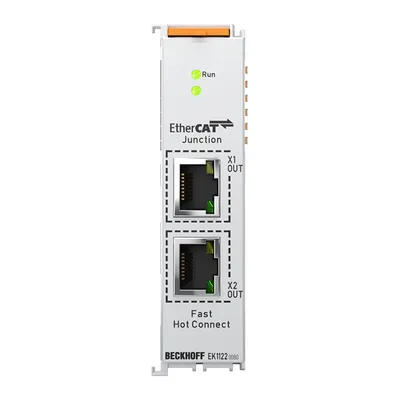

Beckhoff EK1122-0080 – 2-port EtherCAT junction, Fast Hot Connect

Beckhoff

2-port EtherCAT junction, Fast Hot Connect

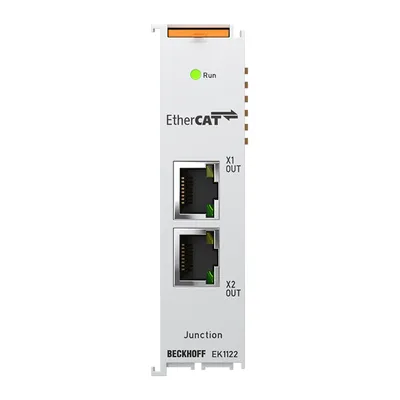

Beckhoff EK1122 – 2-port EtherCAT junction

Beckhoff

2-port EtherCAT junction

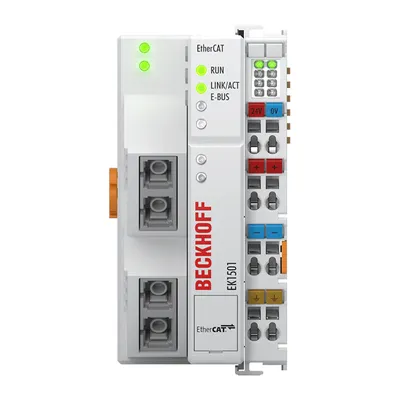

Beckhoff EK1501 – EtherCAT Coupler with ID switch, multi-mode fiber optic

Beckhoff

EtherCAT Coupler with ID switch, multi-mode fiber optic

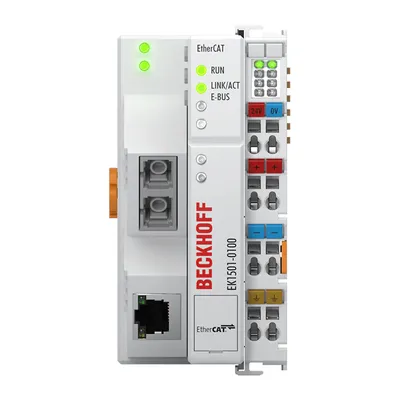

Beckhoff EK1501-0100 – EtherCAT Coupler, media converter (multi-mode fiber optic, RJ45 OUT) with ID switch

Beckhoff

EtherCAT Coupler, media converter (multi-mode fiber optic, RJ45 OUT) with ID switch

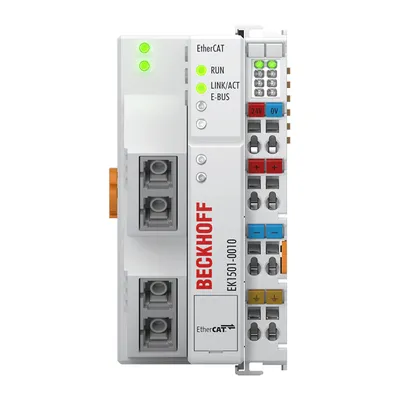

Beckhoff EK1501-0010 – EtherCAT Coupler with ID switch, single-mode fiber optic

Beckhoff

EtherCAT Coupler with ID switch, single-mode fiber optic

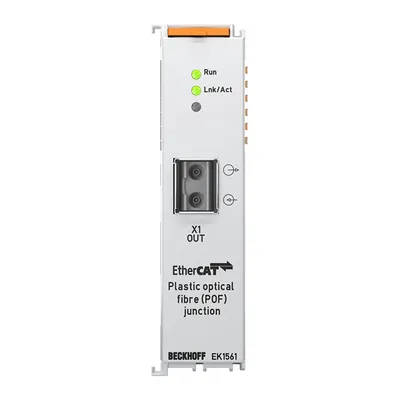

Beckhoff EK1561 – 1-port EtherCAT plastic optical fiber junction

Beckhoff

1-port EtherCAT plastic optical fiber junction

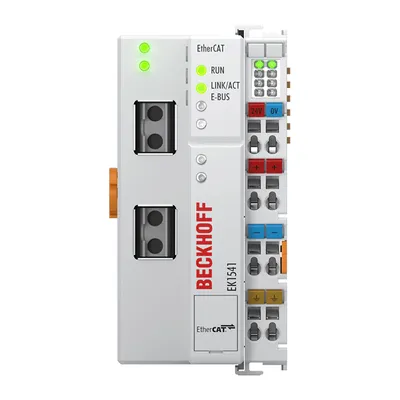

Beckhoff EK1541 – EtherCAT Coupler with ID switch, plastic optical fiber

Beckhoff

EtherCAT Coupler with ID switch, plastic optical fiber

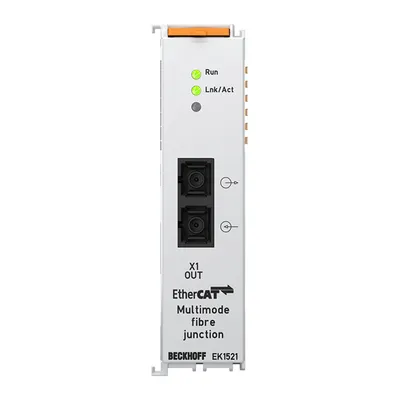

Beckhoff EK1521 – 1-port EtherCAT fiber-optic junction

Beckhoff

1-port EtherCAT fiber-optic junction

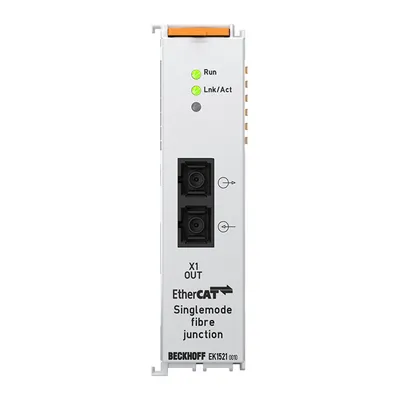

Beckhoff EK1521-0010 – 1-port EtherCAT fiber-optic junction

Beckhoff

1-port EtherCAT fiber-optic junction

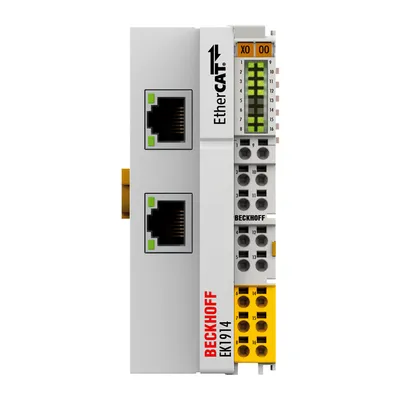

Beckhoff EK1914 – EtherCAT Coupler with integrated digital standard and safety I/Os

Beckhoff

EtherCAT Coupler with integrated digital standard and safety I/Os

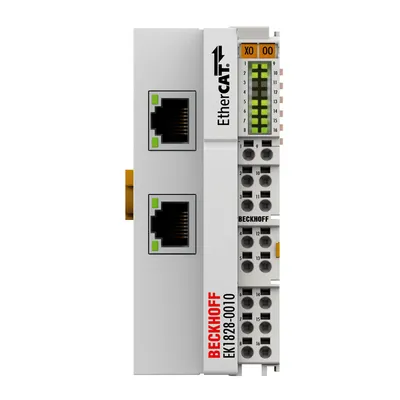

Beckhoff EK1828-0010 – EtherCAT Coupler with integrated digital outputs

Beckhoff

EtherCAT Coupler with integrated digital outputs

Compare EK1xxx, BK1xx0 | EtherCAT Coupler

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Dimensions (W x H x D)	Weight	Operating temperature	Approvals/markings	Marking
BK1150	44 mm x 100 mm x 68 mm	approx. 110 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
BK1250	12 mm x 100 mm x 68 mm	approx. 55 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
BK1120	51 mm x 100 mm x 69 mm	approx. 150 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1310	44 mm x 100 mm x 68 mm	—	—	CE, UL	labeling of the BZxxxx series
EK1300	44 mm x 100 mm x 68 mm	—	-25…+55°C	CE, UL	labeling of the BZxxxx series
EK1322	24 mm x 100 mm x 52 mm without connector	—	-25…+55°C	CE, UL	–
EK1100-0008	44 mm x 100 mm x 68 mm	—	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1100	44 mm x 100 mm x 68 mm	—	-25…+60°C	CE, CCC, UL, ATEX, IECEx, DNV, cFMus	labeling of the BZxxxx series
EK1101-0080	44 mm x 100 mm x 68 mm	approx. 105 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1101	44 mm x 100 mm x 68 mm	approx. 105 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, DNV, cFMus	labeling of the BZxxxx series
EK1110-0008	44 mm x 100 mm x 68 mm	approx. 50 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1110	44 mm x 100 mm x 68 mm	approx. 50 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, DNV	labeling of the BZxxxx series
EK1122-0008	24 mm x 100 mm x 52 mm	approx. 65 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, cFMus	–
EK1122-0080	24 mm x 100 mm x 52 mm	approx. 65 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	–
EK1122	24 mm x 100 mm x 52 mm	approx. 75 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx, cFMus	–
EK1501	51 mm x 100 mm x 69 mm	approx. 190 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1501-0100	51 mm x 100 mm x 69 mm	approx. 190 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1501-0010	51 mm x 100 mm x 69 mm	approx. 190 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	labeling of the BZxxxx series
EK1561	24 mm x 100 mm x 52 mm	approx. 65 g	-25…+60°C	CE, UL	–
EK1541	51 mm x 100 mm x 69 mm	approx. 190 g	-25…+60°C	CE, UL	labeling of the BZxxxx series
EK1521	24 mm x 100 mm x 52 mm	approx. 65 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	–
EK1521-0010	24 mm x 100 mm x 52 mm	approx. 65 g	-25…+60°C	CE, CCC, UL, ATEX, IECEx	–
EK1914	44 mm x 100 mm x 67 mm	approx. 123 g	—	—	labeling of the BZxxxx series
EK1828-0010	44 mm x 100 mm x 67 mm	—	-25…+60°C	CE, UL	labeling of the BZxxxx series

Common to all listed parts

Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
