Reyrolle 7SR57 - 4/8xl, 0/4xV Parts
Compare Reyrolle 7SR57 - 4/8xl, 0/4xV
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | number of digital inputs / maximum | number of inputs / for temperature sensor | number of digital outputs / incl. signaling contact / maximum | width | frame size of enclosure |
|---|---|---|---|---|---|
| 7SR5721-4DD26-0AA0 | 27 | 16 | 17 | 308 mm | S12 |
| 7SR5721-4DD16-2AA0 | 27 | 16 | 17 | 308 mm | S12 |

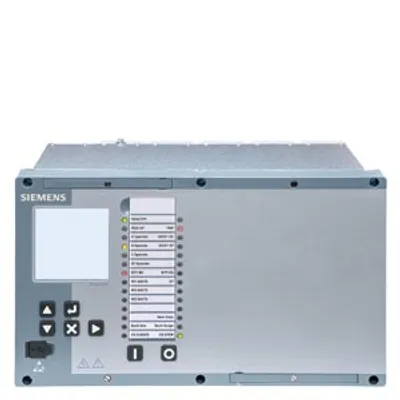

| 7SR5721-4DD16-1AA0 | 27 | 16 | 17 | 308 mm | S12 |
| 7SR5721-4DD16-0AA0 | 27 | 16 | 17 | 308 mm | S12 |
| 7SR5721-2BA22-2AA0 | 17 | 0 | 10 | 205 mm | S8 |
| 7SR5721-2BA22-1AA0 | 17 | 0 | 10 | 205 mm | S8 |
| 7SR5721-2BA22-0AA0 | 17 | 0 | 10 | 205 mm | S8 |
| 7SR5721-2BA12-2AA0 | 17 | 0 | 10 | 205 mm | S8 |
| 7SR5711-3BA22-2AA0 | 19 | 0 | 12 | 205 mm | S8 |
| 7SR5711-3BA22-1AA0 | 19 | 0 | 12 | 205 mm | S8 |
| 7SR5711-3BA22-0AA0 | 19 | 0 | 12 | 205 mm | S8 |
| 7SR5711-3BA12-2AA0 | 19 | 0 | 12 | 205 mm | S8 |
| 7SR5711-3BA12-1AA0 | 19 | 0 | 12 | 205 mm | S8 |
| 7SR5711-3BA12-0AA0 | 19 | 0 | 12 | 205 mm | S8 |
| 7SR5710-3AF22-0AA0 | 18 | 8 | 10 | 205 mm | S8 |
| 7SR5710-3AF12-2AA0 | 18 | 8 | 10 | 205 mm | S8 |
| 7SR5710-3AF12-0AA0 | 18 | 8 | 10 | 205 mm | S8 |
| 7SR5710-3AD22-2AA0 | 18 | 0 | 13 | 205 mm | S8 |
| 7SR5710-3AD22-1AA0 | 18 | 0 | 13 | 205 mm | S8 |
| 7SR5710-3AD22-0AA0 | 18 | 0 | 13 | 205 mm | S8 |
| 7SR5711-1AF21-2AA0 | 9 | 8 | 8 | 153 mm | S6 |
| 7SR5711-1AF11-0AA0 | 9 | 8 | 8 | 153 mm | S6 |

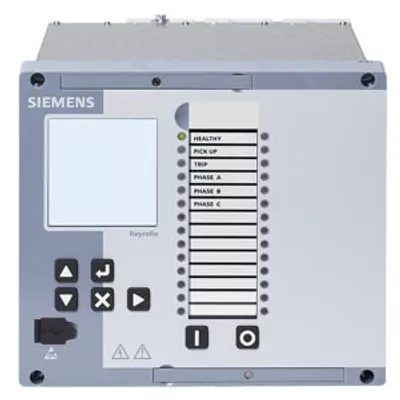

| 7SR5721-2AF22-2AA0 | 17 | 8 | 10 | 205 mm | S8 |
| 7SR5721-2AF22-1AA0 | 17 | 8 | 10 | 205 mm | S8 |
Common to all listed parts
| number of function keys | 7 |
| number of LEDs | 28 |
| type of measured value detection / of operational measured value / standard | Yes |
| type of measured value detection / expanded / min./max. values, mean values | Yes |
| switching statistics | Yes |
| circuit breaker monitoring | Yes |
| product feature / logic editor | Yes |
| control | Yes |
