Reyrolle 7SR51 - 4/5xI, 0/4xV Parts
Compare Reyrolle 7SR51 - 4/5xI, 0/4xV
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product feature / conformal coating | warranty period | synchrocheck (ANSI 25) | number of digital inputs / maximum | number of digital outputs / incl. signaling contact / maximum |
|---|---|---|---|---|---|
| 7SR5121-3AD26-0AA0 | No | 5 a | Yes | 22 | 15 |
| 7SR5121-3AD16-2AA0 | Yes | 10 a | Yes | 22 | 15 |
| 7SR5121-2BA12-2AA0 | Yes | 10 a | Yes | 17 | 10 |
| 7SR5121-2BA12-1AA0 | Yes | 5 a | Yes | 17 | 10 |
| 7SR5121-2BA12-0AA0 | No | 5 a | Yes | 17 | 10 |

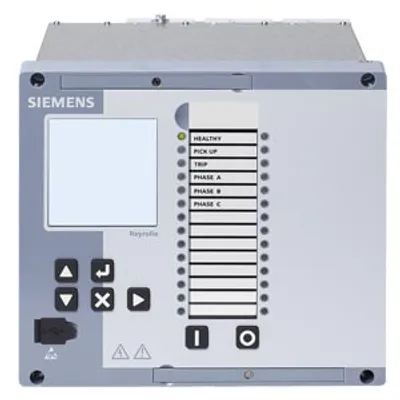

| 7SR5110-4AF12-0AA0 | No | 5 a | No | 23 | 12 |
| 7SR5110-4AD22-2AA0 | Yes | 10 a | No | 23 | 15 |
| 7SR5110-4AD22-1AA0 | Yes | 5 a | No | 23 | 15 |
| 7SR5121-6AF26-0AA0 | No | 5 a | Yes | 37 | 18 |
| 7SR5121-6AF16-2AA0 | Yes | 10 a | Yes | 37 | 18 |
| 7SR5121-6AF16-1AA0 | Yes | 5 a | Yes | 37 | 18 |
| 7SR5121-6AD16-0AA0 | No | 5 a | Yes | 37 | 21 |
| 7SR5121-6AA26-2AA0 | Yes | 10 a | Yes | 37 | 18 |
| 7SR5121-6AA26-1AA0 | Yes | 5 a | Yes | 37 | 18 |
| 7SR5111-4AD26-2AA0 | Yes | 10 a | Yes | 24 | 17 |

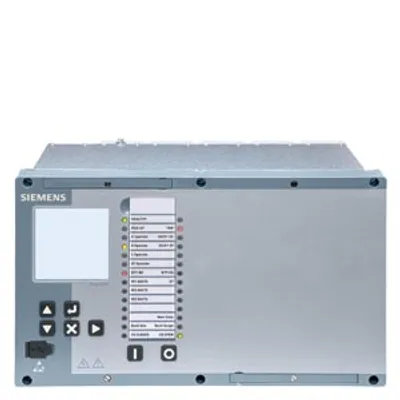

| 7SR5111-4AD26-1AA0 | Yes | 5 a | Yes | 24 | 17 |
| 7SR5111-4AD26-0AA0 | No | 5 a | Yes | 24 | 17 |
| 7SR5111-4AA16-2AA0 | Yes | 10 a | Yes | 24 | 14 |
| 7SR5111-4AA16-1AA0 | Yes | 5 a | Yes | 24 | 14 |
| 7SR5111-4AA16-0AA0 | No | 5 a | Yes | 24 | 14 |
| 7SR5121-3AD16-1AA0 | Yes | 5 a | Yes | 22 | 15 |
| 7SR5121-3AD16-0AA0 | No | 5 a | Yes | 22 | 15 |
| 7SR5121-3AA16-0AA0 | No | 5 a | Yes | 22 | 12 |
| 7SR5110-4AD12-0AA0 | No | 5 a | No | 23 | 15 |
Common to all listed parts
| number of function keys | 7 |
| number of LEDs | 28 |
| type of measured value detection / of operational measured value / standard | Yes |
| type of measured value detection / expanded / min./max. values, mean values | Yes |
| switching statistics | Yes |
| circuit breaker monitoring | Yes |
| product feature / logic editor | Yes |
| control | Yes |
