Wall mounting Parts
Compare Wall mounting
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Installed load | Inrush current | Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | Peak current per motor connection | Peak power output |
|---|---|---|---|---|---|
| 8EI024HWS10.XXXX-1 | Max. 18.7 kVA | Max. 100 A | 2.4 A eff per 1000 m | 60 A eff | 25 kW |
| 8EI8X8HWS10.0400-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI4X5HWS10.0600-1 | Max. 5 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 A eff | 5 kW |
| 8EI8X8HWS10.0600-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI8X8HWS10.0700-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI017HWS10.XXXX-1 | Max. 18 kVA | Max. 50 A | 1.7 A eff per 1000 m | 42.5 A eff | 21.25 kW |
| 8EI1X6HWS10.0000-1 | Max. 1.75 kVA | Max. 45 A | 0.16 A eff per 1000 m | 4.5 A eff | 1.75 kW |
| 8EI8X8HWS10.0000-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI2X2HWS10.0600-1 | Max. 2.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 A eff | 2.5 kW |
| 8EI8X8MWS10.0600-1 | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 A eff | 5 kW |
| 8EI8X8HWS10.0200-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI8X8MWS10.0200-1 | Max. 5 kVA | Max. 22 A | 0.88 A eff per 1000 m | 24 A eff | 5 kW |
| 8EI1X6HWS10.0200-1 | Max. 1.75 kVA | Max. 45 A | 0.16 A eff per 1000 m | 4.5 A eff | 1.75 kW |
| 8EI1X6HWS10.0100-1 | Max. 1.75 kVA | Max. 45 A | 0.16 A eff per 1000 m | 4.5 A eff | 1.75 kW |
| 8EI2X2HWS10.0100-1 | Max. 2.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 A eff | 2.5 kW |
| 8EI4X5HWS10.0100-1 | Max. 5 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 A eff | 5 kW |
| 8EI8X8HWS10.0100-1 | Max. 10 kVA | Max. 45 A | 0.88 A eff per 1000 m | 24 A eff | 10 kW |
| 8EI1X6MWS10.0600-1 | Max. 1 kVA | Max. 22 A | 0.16 A eff per 1000 m | 4.5 A eff | 1 kW |
| 8EI4X5HWS10.0200-1 | Max. 5 kVA | Max. 45 A | 0.45 A eff per 1000 m | 12.25 A eff | 5 kW |
| 8EI1X6HWS10.0600-1 | Max. 1.75 kVA | Max. 45 A | 0.16 A eff per 1000 m | 4.5 A eff | 1.75 kW |
| 8EI2X2HWS10.0200-1 | Max. 2.5 kVA | Max. 45 A | 0.22 A eff per 1000 m | 6 A eff | 2.5 kW |
| 8EI2X2MWS10.0400-1 | Max. 1.25 kVA | Max. 22 A | 0.22 A eff per 1000 m | 6 A eff | 1.25 kW |
| 8EI1X6MWS10.0400-1 | Max. 1 kVA | Max. 22 A | 0.16 A eff per 1000 m | 4.5 A eff | 1 kW |

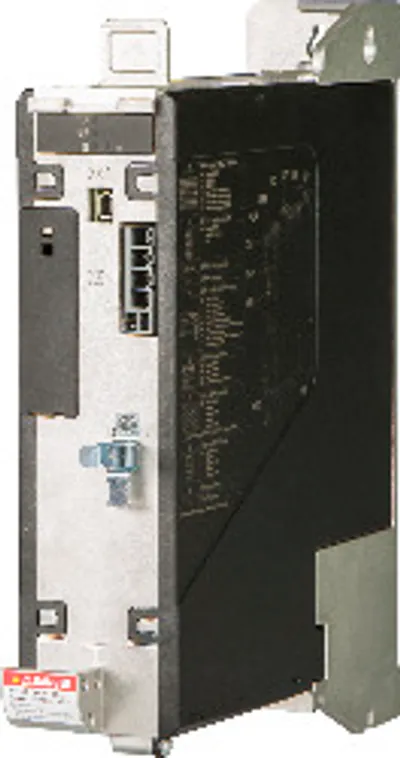

| 8EI4X5MWS10.0600-1 | Max. 2.5 kVA | Max. 22 A | 0.45 A eff per 1000 m | 12.25 A eff | 2.5 kW |
Common to all listed parts
| Support – Dynamic node allocation (DNA) | Yes |
| Slots for plug-in modules | 1 |
| Frequency | 50 / 60 Hz ±4% |
| Input voltage | 24 VDC ±25% |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes |
| Variant – U, V, W, PE | Connector |
| Quantity | 1 |
