140MG MCP Parts
Compare 140MG MCP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Frame Size | Rated Operational Current Ie(A) | Auxiliaries(AX), Alarm (AL), Auxiliary/Alarm Combination(AX/AL), Right Side Mounting | Voltage for Aux Alarm Combination |
|---|---|---|---|---|

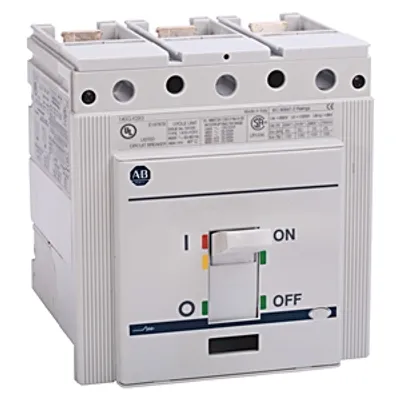

| 140MG-K8P-D30-SD-AA | K frame | 300 A | (1)AX + (1)AL | 250V AC/DC |
| 140MG-H8P-C70-KA | H frame | 70 A | (1)AX | 250V AC/DC |
| 140MG-H8P-C30-KA | H frame | 30 A | (1)AX | 250V AC/DC |

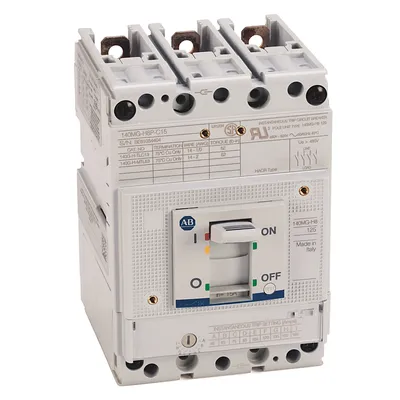

| 140MG-H8P-C15-KA | H frame | 15 A | (1)AX | 250V AC/DC |
| 140MG-N8P-E12 | N frame | 1200 A | — | — |
| 140MG-M8P-D80-SD-FB | M frame | 800 A | (2)AX | 400V AC |
| 140MG-M8P-D60-SD-FB | M frame | 600 A | (2)AX | 400V AC |
| 140MG-M8P-D60-AB | M frame | 600 A | (1)AX + (1)AL | 400V AC |

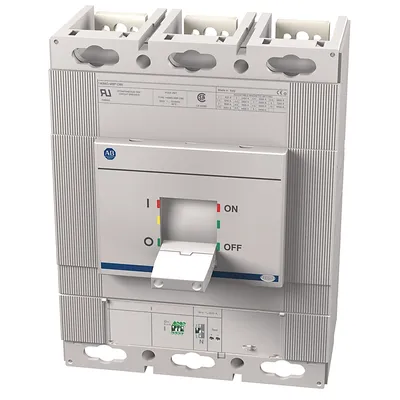

| 140MG-M8P-D60-AA | M frame | 600 A | (1)AX + (1)AL | 250V AC/DC |
| 140MG-M8P-D60 | M frame | 600 A | — | — |
| 140MG-K8P-D40-SD-FB | K frame | 400 A | (2)AX | 400V AC |
| 140MG-K8P-D40-SD-AA | K frame | 400 A | (1)AX + (1)AL | 250V AC/DC |
| 140MG-K8P-D40-SB-AB-MU | K frame | 400 A | (1)AX + (1)AL | 400V AC |
| 140MG-K8P-D40-SA-AA | K frame | 400 A | (1)AX + (1)AL | 250V AC/DC |
| 140MG-K8P-D40-AA | K frame | 400 A | (1)AX + (1)AL | 250V AC/DC |
| 140MG-K8P-D40 | K frame | 400 A | — | — |

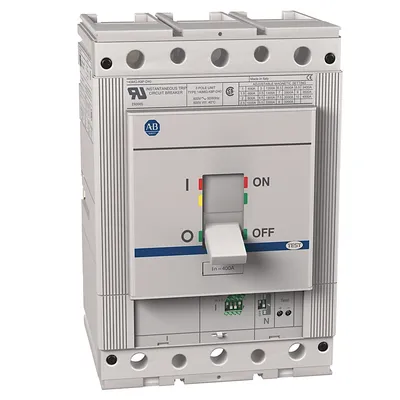

| 140MG-K8P-D30-SD-FB | K frame | 300 A | (2)AX | 400V AC |
| 140MG-K8P-D30-FB | K frame | 300 A | (2)AX | 400V AC |
| 140MG-K8P-D30-CJ | K frame | 300 A | (3)AX + (1)AL | 24V AC/DC |
| 140MG-K8P-D30-AA | K frame | 300 A | (1)AX + (1)AL | 250V AC/DC |

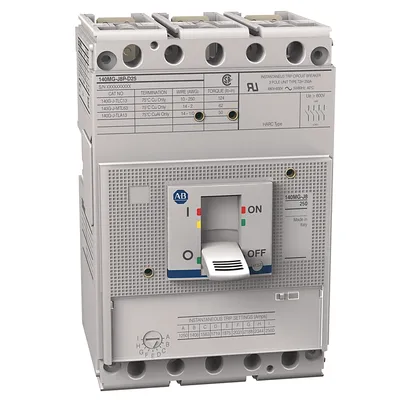

| 140MG-J8P-D25-SJ-AJ | J frame | 250 A | (1)AX + (1)AL | 24V AC/DC |
| 140MG-J8P-D25-SD-KA | J frame | 250 A | (1)AX | 250V AC/DC |
| 140MG-J8P-D25-KJ | J frame | 250 A | (1)AX | 24V AC/DC |
| 140MG-J8P-D25-KA | J frame | 250 A | (1)AX | 250V AC/DC |
Common to all listed parts
| Bulletin Number | 140MG - Motor Circuit Protectors |
| Protection Type | MCP (magnetic only) |
| Assembly | Factory Assembled |
