PanelSet SD Parts

Schneider Electric

2 side panels for plinth. 600x100mm. Folded sheet steel

Schneider Electric

4 side panels for plinth. 500x200mm. Folded sheet steel

Schneider Electric

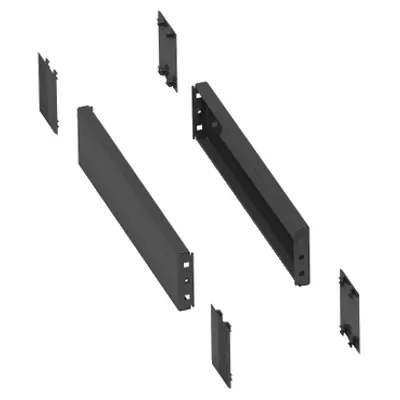

2 side panels for plinth. 500x100mm. Folded sheet steel

Schneider Electric

Modular console for PanelSeT SD Compact control desk with rear panel - W600xD300

Schneider Electric

Modular console for PanelSeT SD Compact control desk with rear panel - W600xD200

Schneider Electric

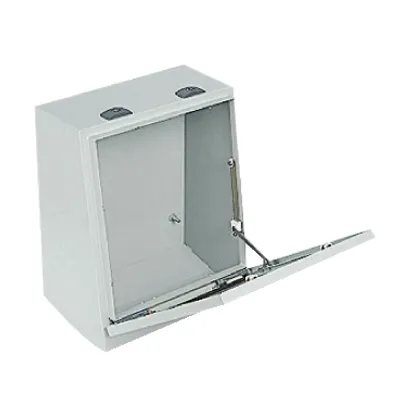

Modular console for PanelSeT SD Compact control desk with rear panel - W400xD200

Schneider Electric

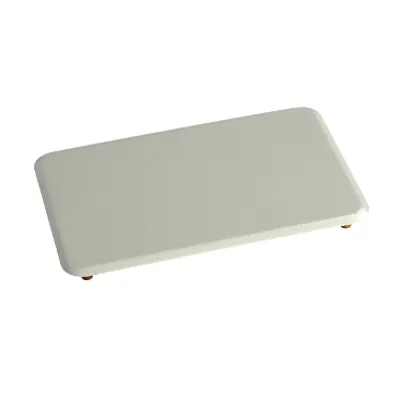

Blanking plate to conceal free space after the console installation W200mm

Compare PanelSet SD

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Accessory / separate part category	Product or component type	Range compatibility	Height	Width
NSYSPS6100SD	Enclosure accessory	Plinth side panel	PanelSeT PanelSeT SD SD	100 mm	600 mm
NSYSPS5200SD	Enclosure accessory	Plinth side panel	PanelSeT PanelSeT SD SD	200 mm	500 mm
NSYSPS5100SD	Enclosure accessory	Plinth side panel	PanelSeT PanelSeT SD SD	100 mm	500 mm
NSYSDC63	Interface accessory	Modular consoles	PanelSeT PanelSeT SD	484 mm	600 mm
NSYSDC62	Interface accessory	Modular consoles	PanelSeT PanelSeT SD	484 mm	600 mm
NSYSDC42	Interface accessory	Modular consoles	PanelSeT PanelSeT SD	484 mm	400 mm
NSYRP2	Enclosure accessory	Blanking cover	PanelSeT SD	—	Nominal: 200 mm, Fixing centers: 165 mm
