SIRIUS 3RH2 contactor relays, 4- and 8-pole Parts
Compare SIRIUS 3RH2 contactor relays, 4- and 8-pole
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current without load current share typical | Net Weight | global warming potential [CO2 eq] / during manufacturing | global warming potential [CO2 eq] / during operation | global warming potential [CO2 eq] / after end of life |
|---|---|---|---|---|---|

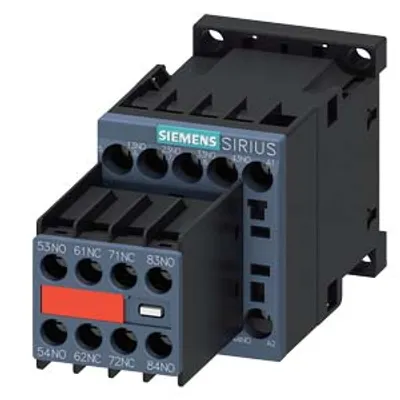

| 3RH2262-1AK60 | 1.43 W | 266.799 g | 1.43 kg | 94.1 kg | -0.0159 kg |

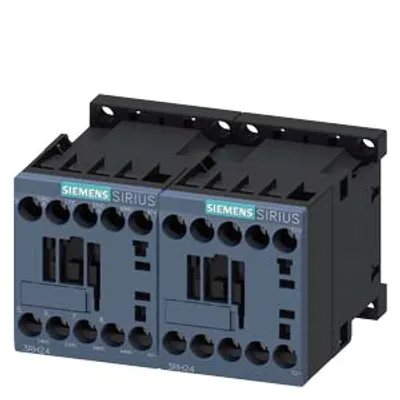

| 3RH2431-1BG40 | 4 W | 0.541 kg | 2.44 kg | 135 kg | -0.49 kg |
| 3RH2431-1BF40 | 4 W | 555.57 g | 2.44 kg | 135 kg | -0.49 kg |
| 3RH2431-1BB40 | 4 W | 0.547 kg | 2.44 kg | 135 kg | -0.49 kg |
| 3RH2431-1AU00 | 1.43 W | 0.429 kg | 1.93 kg | 48.8 kg | -0.242 kg |
| 3RH2431-1AP60 | 1.43 W | 0.432 kg | 1.93 kg | 48.8 kg | -0.242 kg |
| 3RH2431-1AP00 | 1.43 W | 0.424 kg | 1.93 kg | 48.8 kg | -0.242 kg |
| 3RH2344-1DM40-0KA0 | 4 W | 0.319 kg | 1.57 kg | 132 kg | -0.2 kg |

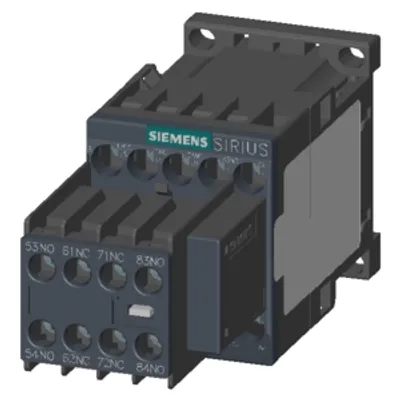

| 3RH2344-1CN20-0KA0 | 1.1 W | 0.271 kg | 1.43 kg | 94.1 kg | -0.0159 kg |
| 3RH2344-1CM20-0KA0 | 1.1 W | 0.269 kg | 1.43 kg | 94.1 kg | -0.0159 kg |
| 3RH2131-2BA40 | 4 W | 0.305 kg | — | — | — |
| 3RH2131-2AP60 | 1.43 W | 0.242 kg | — | — | — |
| 3RH2131-1AV00 | 1.43 W | 0.22 kg | 1.15 kg | 48.2 kg | -0.139 kg |
| 3RH2131-1AN20 | 1.1 W | 0.22 kg | 1.15 kg | 48.2 kg | -0.139 kg |

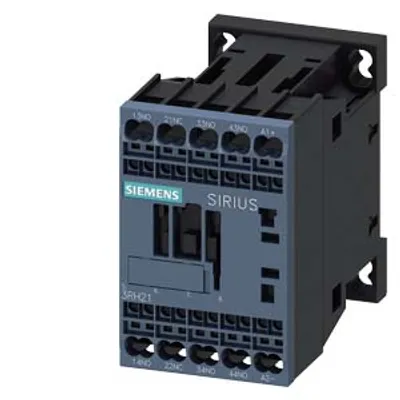

| 3RH2131-2UB40 | 4 W | 0.295 kg | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2131-2SB40 | 1.6 W | 307.99 g | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2131-2MB40-0KT0 | 1.6 W | 0.304 kg | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2131-1VB40 | 1.6 W | 0.279 kg | — | — | — |

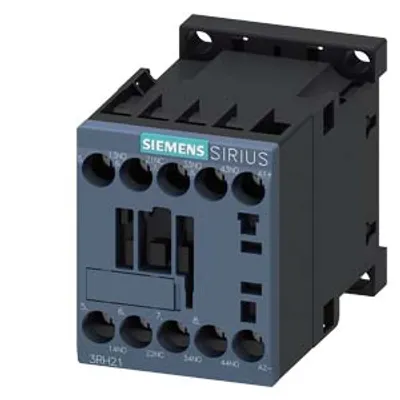

| 3RH2131-1SB40 | 1.6 W | 0.277 kg | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2131-1MB40-0KT0 | 1.6 W | 0.284 kg | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2131-1KF40 | 2.8 W | 0.27 kg | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2131-1KB40 | 2.8 W | 0.281 kg | 1.3 kg | 132 kg | -0.227 kg |
| 3RH2122-1AF00 | 1.43 W | 219.8 g | 1.15 kg | 48.2 kg | -0.139 kg |
| 3RH2122-1AD00 | 1.43 W | 0.22 kg | 1.15 kg | 48.2 kg | -0.139 kg |
Common to all listed parts
| size of contactor | S00 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 kV |
| reference code according to IEC 81346-2 | K |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
