MPN	Order code (ABB product ID)	Product Net Depth / Length	Product Net Height	Product Net Weight	Rated Control Circuit Voltage (U<sub>c</sub>)
1SFL431022R8800	1SFL431022R8800	123.5 mm	148 mm	1.8 kg	50 Hz 230 ... 240 V, 60 Hz 240 ... 260 V
1SFL431024R8000	1SFL431024R8000	155.6 mm	170 mm	1.8 kg	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V
1SFL431022R8500	1SFL431022R8500	123.5 mm	148 mm	1.8 kg	50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V
1SFL431022R8300	1SFL431022R8300	123.5 mm	148 mm	1.8 kg	50 Hz 48 V, 60 Hz 48 V
1SBL411024R8000	1SBL411024R8000	140.4 mm	150 mm	1.35 kg	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V
1SFL431022R8400	1SFL431022R8400	123.5 mm	148 mm	1.8 kg	50 Hz 110 V, 60 Hz 110 ... 120 V
1SFL431022R8100	1SFL431022R8100	123.5 mm	148 mm	1.8 kg	50 Hz 24 V, 60 Hz 24 V
1SFL431022R3600	1SFL431022R3600	123.5 mm	148 mm	1.8 kg	50 Hz 190 V, 60 Hz 220 V
1SFL431022R8000	1SFL431022R8000	123.5 mm	148 mm	1.8 kg	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V
1SBL411024R8500	1SBL411024R8500	140.4 mm	150 mm	1.35 kg	50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V
1SFL431022R4200	1SFL431022R4200	123.5 mm	148 mm	1.8 kg	50 Hz 230 ... 240 V, 60 Hz 277 V
1SBL411024R8600	1SBL411024R8600	140.4 mm	150 mm	1.35 kg	50 Hz 400 ... 415 V, 60 Hz 415 ... 440 V
1SFL431022R2600	1SFL431022R2600	123.5 mm	148 mm	1.8 kg	50 Hz 105 V, 60 Hz 110 ... 127 V
1SBL411024R8100	1SBL411024R8100	140.4 mm	150 mm	1.35 kg	50 Hz 24 V, 60 Hz 24 V

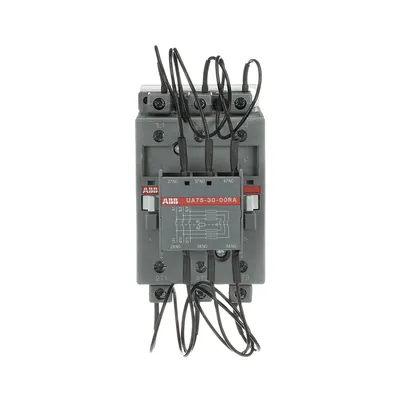

1SBL411024R4200	1SBL411024R4200	140.4 mm	150 mm	1.35 kg	50 Hz 230 ... 240 V, 60 Hz 277 V
1SBL411024R8400	1SBL411024R8400	140.4 mm	150 mm	1.35 kg	50 Hz 110 V, 60 Hz 110 ... 120 V
1SBL411024R8800	1SBL411024R8800	140.4 mm	150 mm	1.35 kg	50 Hz 230 ... 240 V, 60 Hz 240 ... 260 V
1SBL411024R8900	1SBL411024R8900	140.4 mm	150 mm	1.35 kg	50 Hz 110 ... 115 V, 60 Hz 115 ... 127 V
1SBL411024R7500	1SBL411024R7500	140.4 mm	150 mm	1.35 kg	50 Hz 200 V, 60 Hz 200 ... 220 V
1SBL411024R3600	1SBL411024R3600	140.4 mm	150 mm	1.35 kg	50 Hz 190 V, 60 Hz 220 V

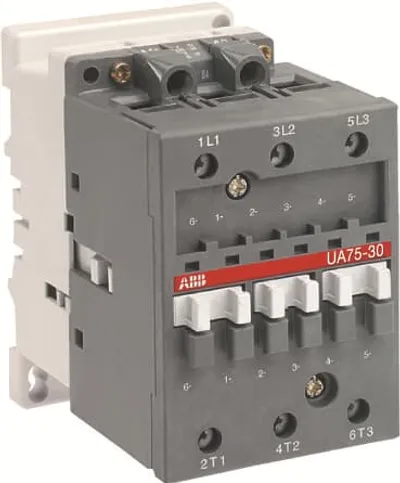

1SBL411022R8600	1SBL411022R8600	108 mm	110 mm	1.16 kg	50 Hz 400 ... 415 V, 60 Hz 415 ... 440 V
1SBL411022R5800	1SBL411022R5800	108 mm	110 mm	1.16 kg	50 Hz 660 ... 690 V
1SBL411022R8500	1SBL411022R8500	108 mm	110 mm	1.16 kg	50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V
1SBL411022R5500	1SBL411022R5500	108 mm	110 mm	1.16 kg	50 Hz 500 V, 60 Hz 600 V

Common to all listed parts

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Product Name	Block Contactor
